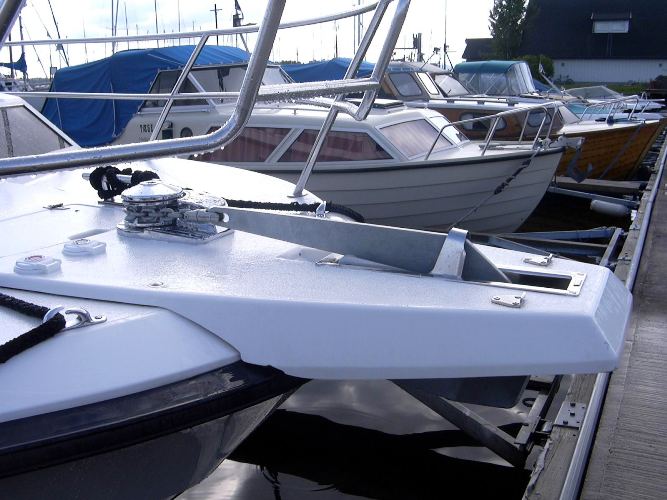

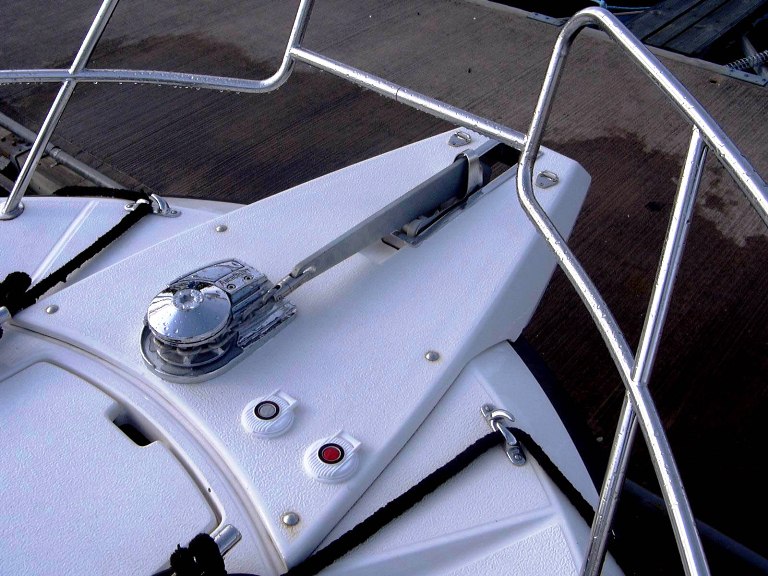

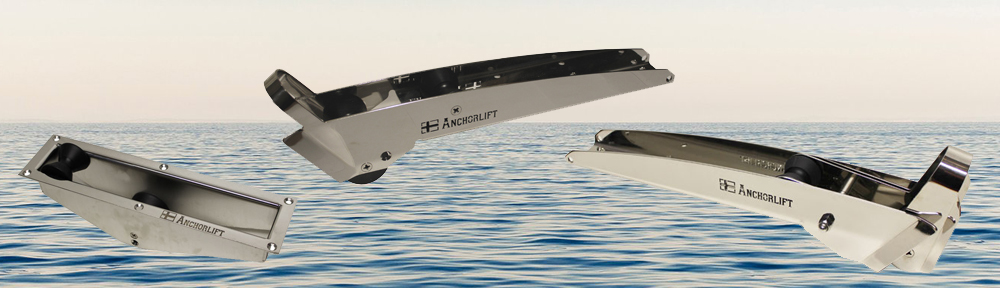

Self-launching bow rollers for
claw anchors boats 20ft to 110ft
|
|
|
High quality rollers designed universally for easy mounting on most bows. Made in stainless steel AISI 316L with a low profile design.
Hinged with an inner roller for self launching operation.
Best suitable with the Anchorlift
CX Claw - Bruce - Rocna anchors..
|
|
|
|
Model
|
Length
|
Width
|
Anchor Size
|
|

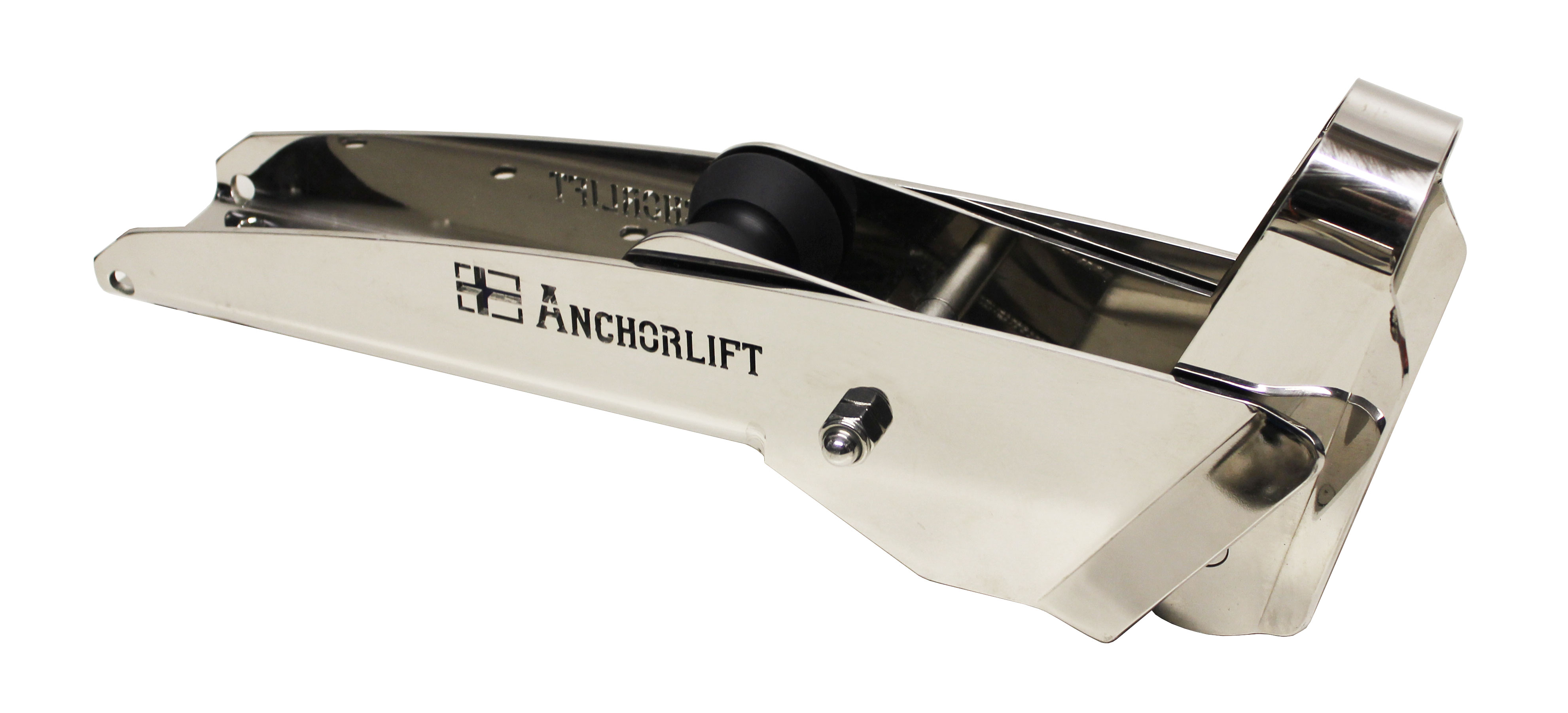

90102
|
430 mm - 16,9"
|
76 mm - 3"
|
To 15 kg - 33 lbs
|
90102
Diagram Metric
|
Model
|
Length
|
Width
|
Anchor size
|
|

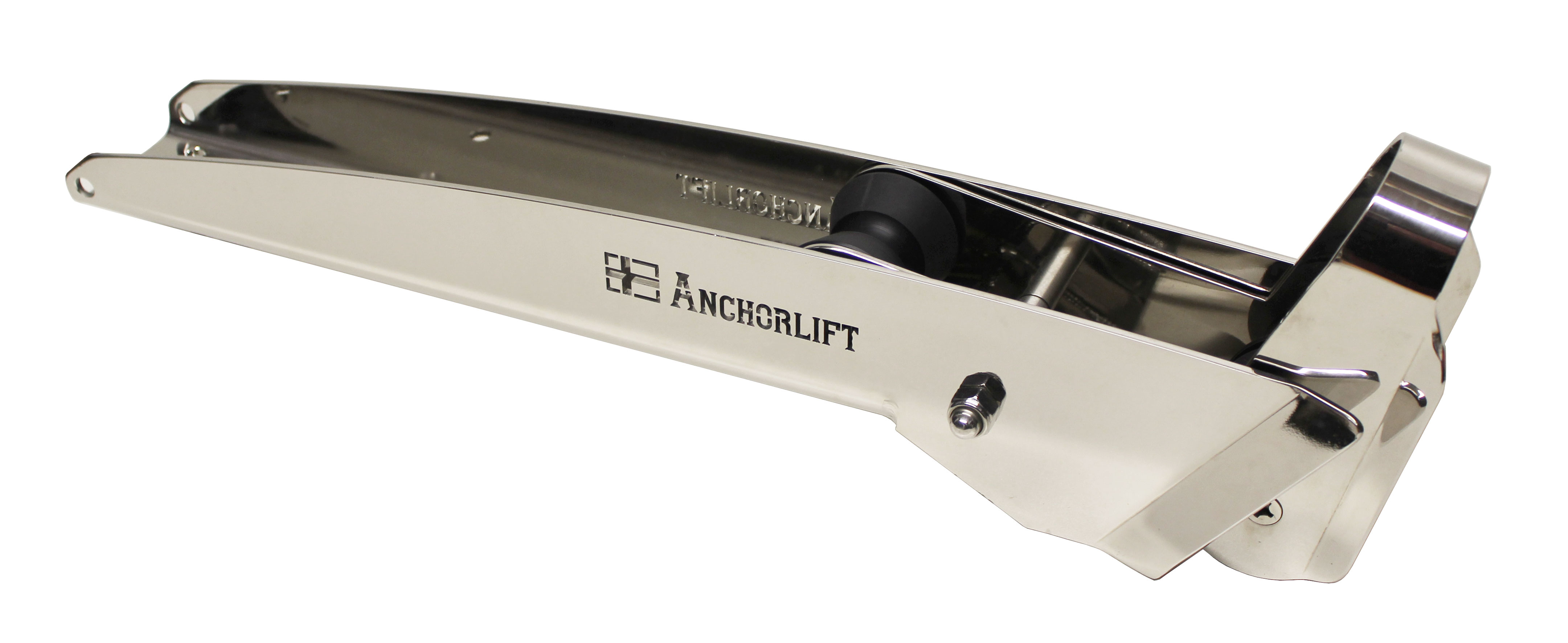

90103
|
590 mm - 23,2"
|
76 mm - 3"
|
To 20 kg - 44 lbs
|
90103
Diagram Metric
|
Model
|
Length
|
Width
|
Anchor size
|
|
90104
|
750 mm - 29.5"
|
90 mm - 3.5"
|
To 30 kg - 66 lbs
|
90104
Diagram Metric
|
Model
|
Length
|
Width
|
Anchor size
|
|
90105
|
890 mm - 35"
|
100 mm - 3,9"
|
To 50 kg -110 lbs
|
90105
Diagram Metric
|
Model
|
Length
|
Width
|
Anchor size
|
|
90106
|
1000 mm - 47,3"
|
140 mm - 5,5"
|
To 80 kg -176 lbs
|
90106 Diagram Metric
|
Model
|
Length
|
Width
|
Anchor size
|
|
90107
|
1200 mm - 47,3"
|
140 mm - 5,5"
|
To 120 kg-264lbs
|
90107
Diagram Metric
|
| |
|
|
Self-launching bow rollers for boats 18ft to 110ft. XR and Plow type anchors |
| |
High quality universal rollers designed
for easy mounting on most bows and boats.
Made in stainless steel AISI 316L with a low profile design. Dual roller for smooth parking
and self launching of the anchor
Best suitable with the
Anchorlift TPX - XR - Lewmar Delta - Rocna - Mantus - Manson Supreem
and plow type anchors. |
Black
Edition 90125 to 90130
 |
|
Model
|
Length
|
Width
|
Anchor Size
|
|
90125
|
490 mm - 19,3"
|
56 mm - 2,2"
|
To 8 kg - 16 lbs
|
90125
Diagram
|
Model
|
Length
|
Width
|
Anchor size
|
|
90126
|
580 mm - 22,8"
|
66 mm - 2,59"
|
To 15 kg - 33 lbs
|
|
90126B |
580mm - 22,8" |
66 mm - 2,59" |
To 15kg - 33lbs |
|
90126L |
656 mm - 25,82 |
68 mm - 2,67 |
To 20 kg - 44 lbs
|
90126
Diagram
|
Model
|
Length
|
Width
|
Anchor size
|
|
90127
|
730 mm -
28,75"
|
76mm -
3"
|
To 30 kg - 66 lbs
|
|
90127L |
880 mm - 34,64" |
76 mm - 3" |
To 30 kg - 66 lbs
|
90127
Diagram
|
Model
|
Length
|
Width
|
Anchor size
|
|
90128
|
950 mm - 38,6"
|
98 mm - 3,9"
|
To 50 kg -110 lbs
|
90128
Diagram
|
Model
|
Length
|
Width
|
Anchor size
|
|
90129
|
1100 mm - 47,3"
|
119 mm - 4,68"
|
To 100 kg -222 lbs
|
90129 Diagram
|
Model
|
Length
|
Width
|
Anchor size
|
|
90130
|
1400 mm -
55,1"
|
140 mm - 5,5"
|
To 140 kg-308lbs
|
90130
Diagram |
|
| |
|

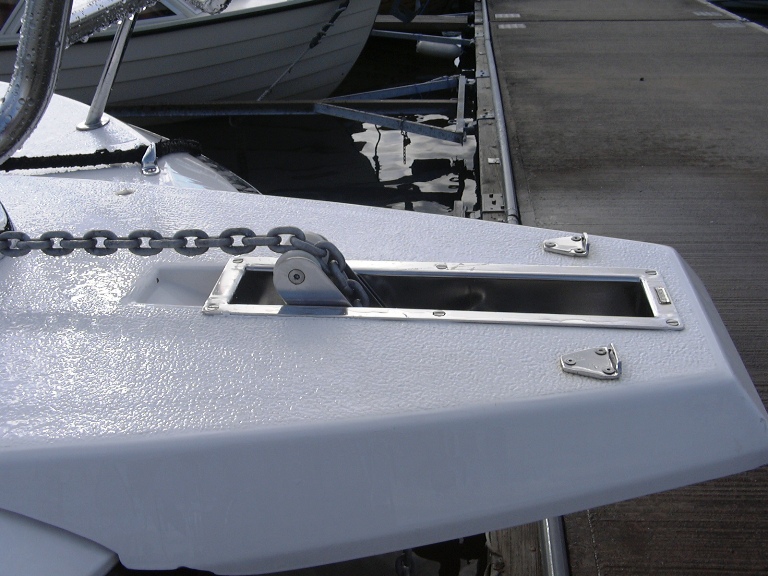

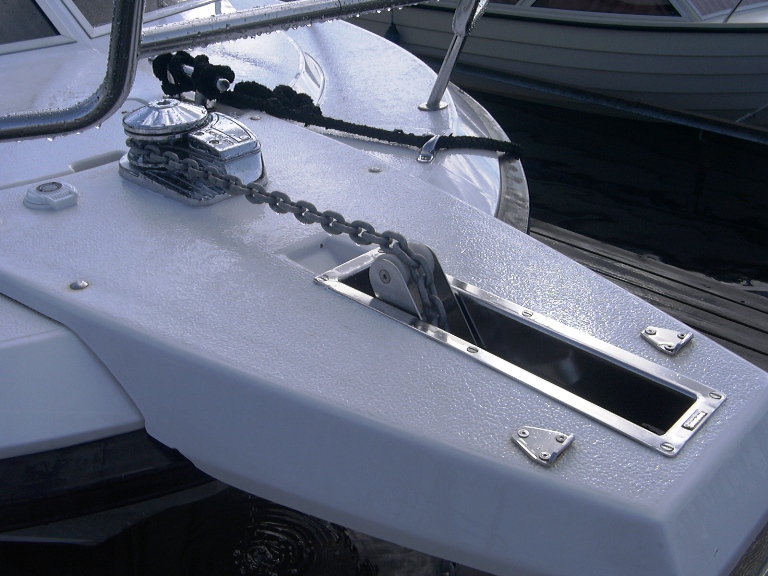

Bow Rollers for bow plank mounting
|
|
Made for mounting on the boats bow
pulpit/bow plank. Hinged with an inner roller for easier drop of the
anchor. Self launching.
Equipped with a high quality inner nylon roller in black color.
Universal for easy fitting on most bow pulpits/planks, thickness up to 50mm - 2"
Best suitable with the plow anchors that does not have roll bar
such as Anchorlift TPX, Delta and son on.
Made by high polish stainless steel AISI 316L.
| |
|
 |
|
Model
|
Length
|
Width
|
Anchorlift TPX
|
Delta
|
|
90113
|
420 mm - 16,5"
|
104 mm - 4,1 "
|
To 15 kg / 33 lbs
|
To 16 kg -
35lbs
|
|
90114 |
468 mm - 18,4" |
116mm - 4,6" |
To 25kg / 55lbs |
To 25kg / 55lbs |
|
90115 |
574mm - 22,6 |
140mm - 5,5" |
To 50kg / 110lbs |
To 50kg / 110lbs |
90113
- 90114 - 90115 Diagram |
| |
|
|
|
|
    |
| |
|

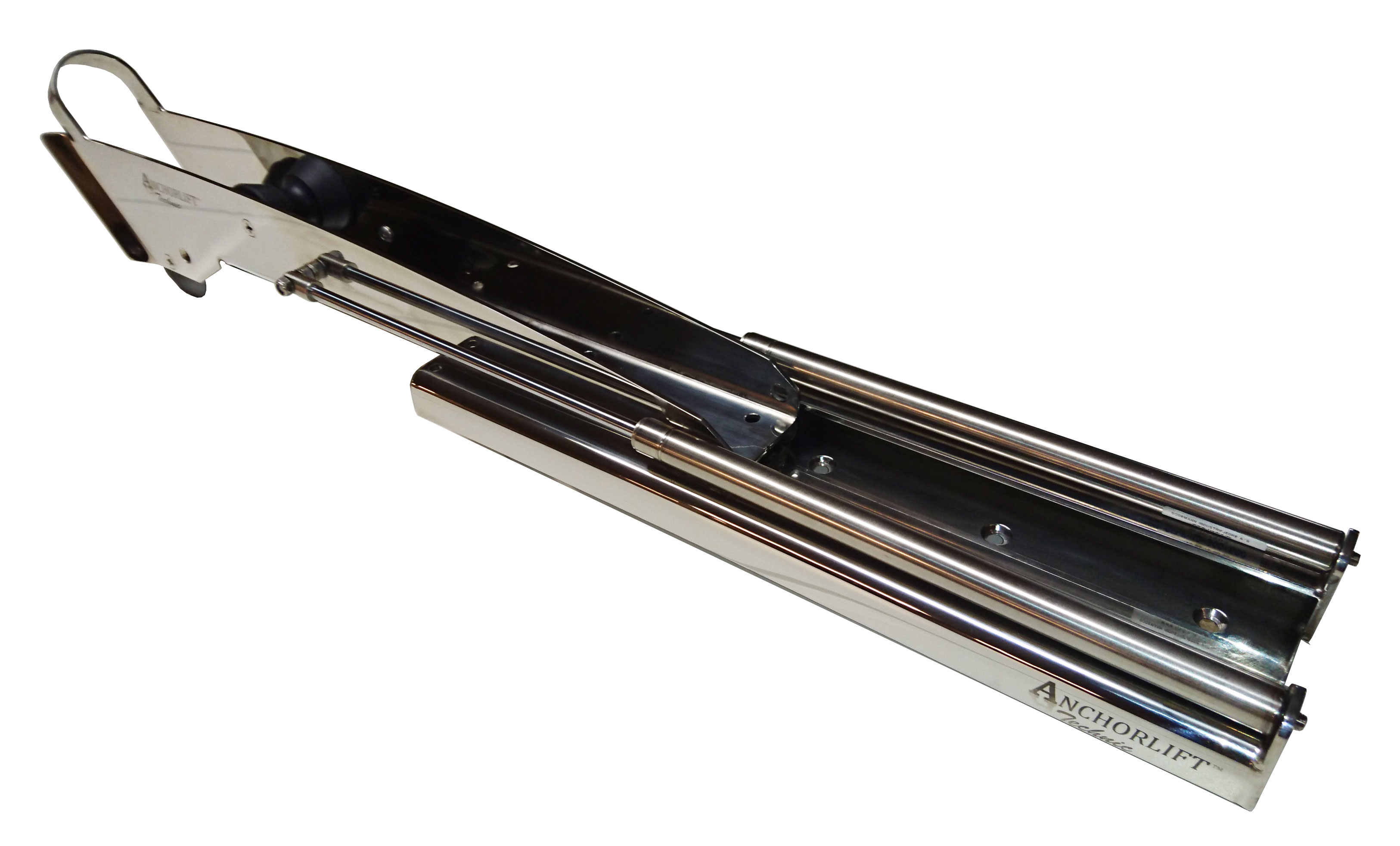

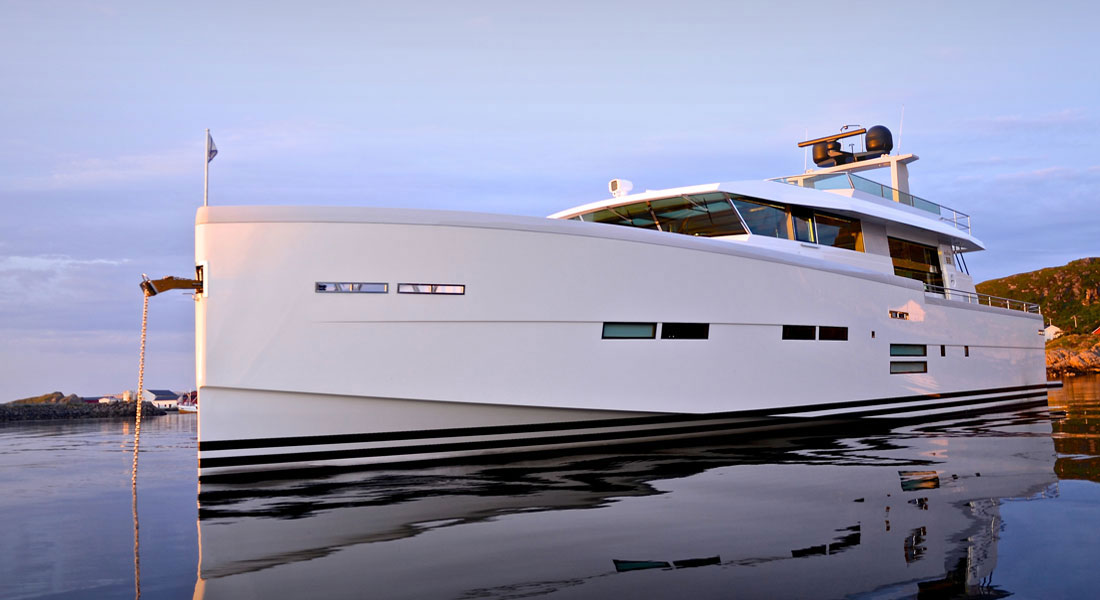

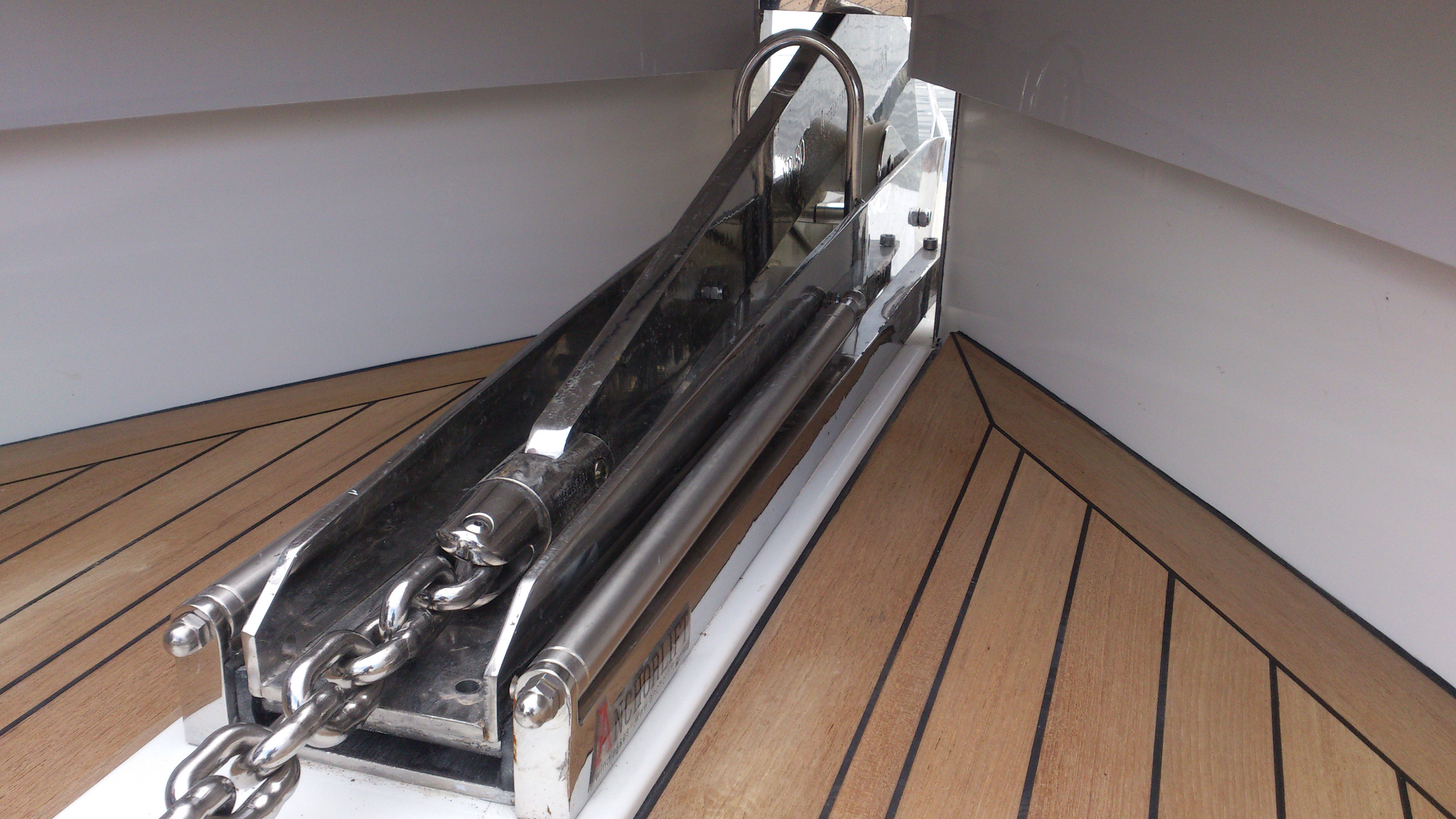

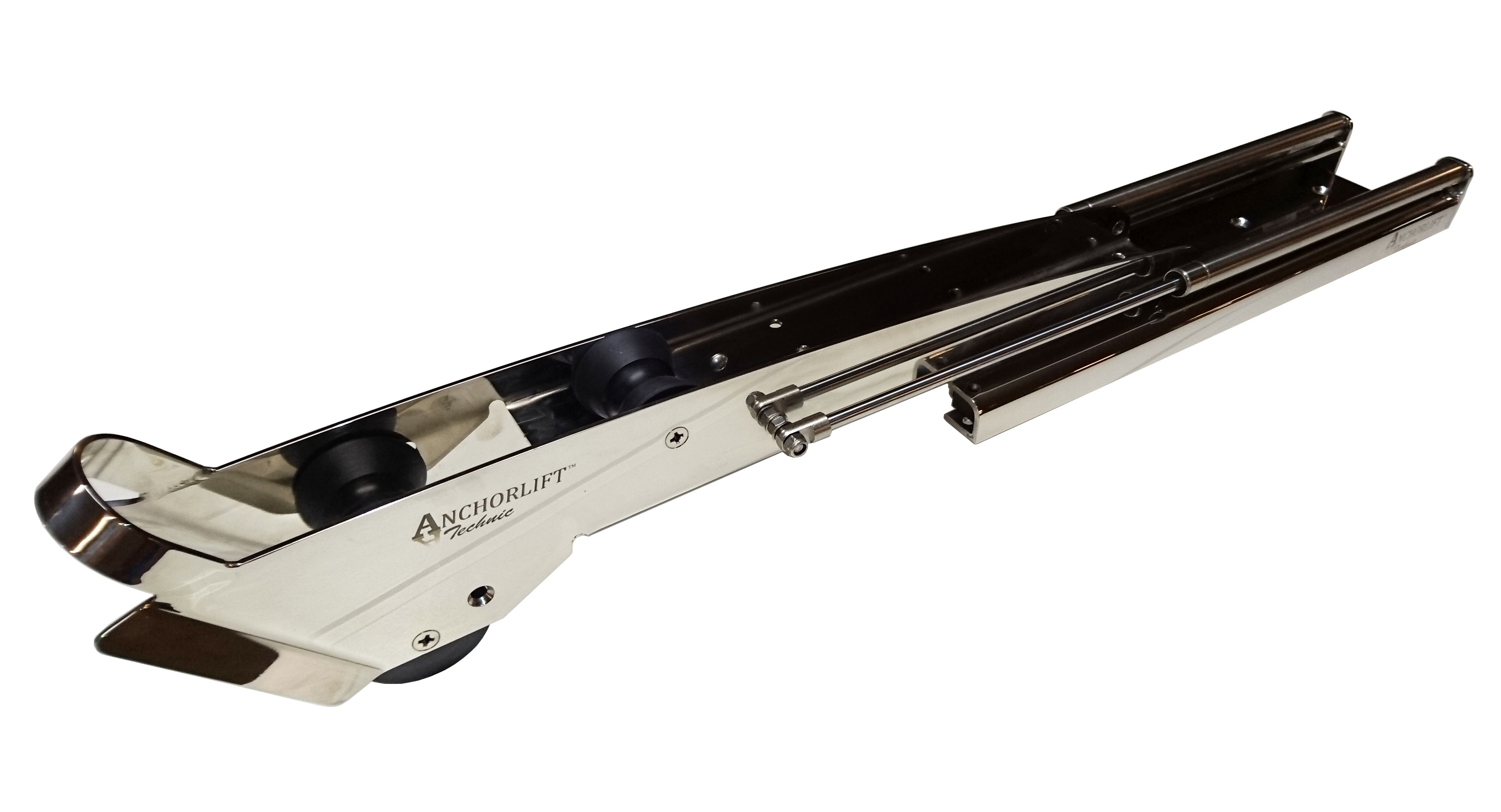

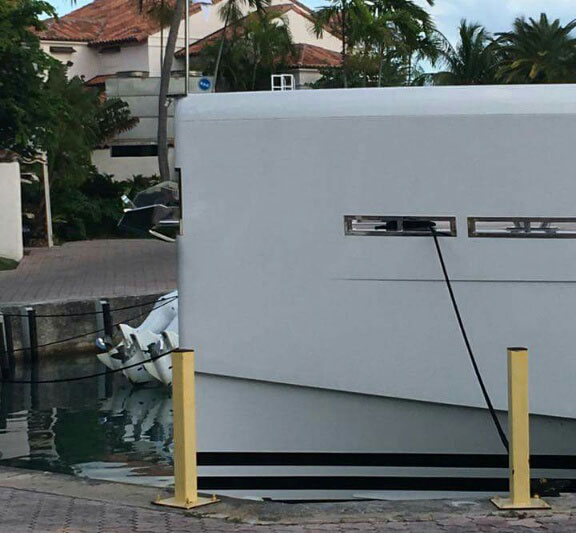

XR Catapult Bow Roller |
|
XR Catapult bow roller
system for XR anchors. Designed for boat with vertical bow
design.
Push the anchor free from the bow when
dropping the anchor, but still make you park the anchor
close to the bow.
No extra electrical components
needed, fully controlled by the windlass.
We make
more options on slide lenght and dimensions than shown in
diagram. |
|
  |
|
Model
|
Length IN /
OUT
|
Width Slide
|
XR Anchor Size
|
|
91103-1
|
58cm / 80cm |
108mm
|
To XR15
|
91103 Diagram
|
Model
|
Length IN /
OUT
|
Width
|
XR Anchor size
|
|
91104-1
|
73cm / 102cm
|
125mm
|
To XR25
|
91104 Diagram
|
Model
|
Length IN /
OUT
|
Width
|
XR Anchor size
|
|
91105-1
|
95cm / 134cm
|
152mm
|
To XR50
|
91105 Diagram
|
Model
|
Length IN /
OUT
|
Width
|
XR Anchor size
|
|
91107-500
|
140cm / 190cm
|
201mm
|
To XR120
|
91107-500 Diagram
|
Model
|
Length IN /
OUT
|
Width
|
XR Anchor size
|
|
91107-620 |
140cm / 203cm
|
201mm
|
To XR120
|
91107-620 Diagram



 |
| |
|

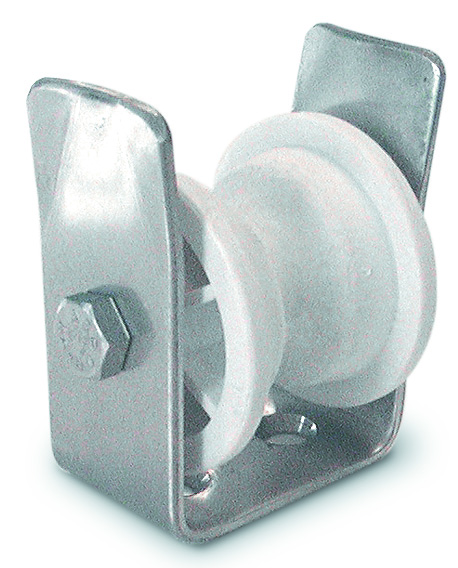

Leader Rollers
|
|
|
90123
-Small utility roller for raising your anchor.
The roller is also used to lead chain or rope from the windlass.
90122 -Anchorlift chain leading roller. Made in stainless steel.
Often used where chain
has to be led away from the windlass, or led away from underneath the windlass.
|
 |
|
Model
|
Length
|
Width
|
Max. Height
|
|
90123
|
160mm - 6,3"
|
50mm - 2"
|
65mm - 2,5"
|
|
| |
|
 |
|
Model
|
Length
|
Width
|
Max. Height
|
|
90122
|
45mm - 1,8"
|
60 mm - 2.4"
|
76 mm - 3"
|
|
|
|
|
|
|
|
