Anchorlift Capstans
Powerful and compact rope capstans, normally installed on the stern of the boat for warping operations. Capstans are made of heavy duty SS Steel with a stainless steel vertical shaft. C1212 C1512 C1524 all bases and drums are made of SS steel 316, providing trouble-free operation. C912 C1012 base stainless steel, capstan in seawater resistant andodized aluminium. The construction and the mechanics are the same as the vertical anchor windlasses. The motor & gear are located under the boat’s deck when installed, which allows for quiet operation.


Model #

Motor

Voltage

Max Work Load

Max Power Pull

Current Draw

Rope Speed

Rope

Weight

C912

900 watt

12 volt

180 kg / 396 lbs

220 kgs / 484 lbs

55 A.

26 m min/ 85 ft

12-14 mm
1/2"-9/16

7.5 kgs
16,5 lbs

C1012

1,000 watt

12 volt

220 kg / 550 lbs

270 kgs / 704 lbs

65 A.

22 m min / 72ft

12-14 mm
1/2" - 9/16"

7,5 kgs
16,5 lbs

C1212

1,200 watt

12 volt

280 kg / 616 lbs

380 kgs / 836 lbs

75 A.

29 m min / 95 ft

12-16 mm,
3/8" - 1/2"

14 kgs
30,8 lbs

C1512

1,500 watt

12 volt

320 kg / 704 lbs

420 kgs / 924 lbs

85 A.

31 m min / 102 ft

14-20 mm
9/16" - 3/4"

15 kgs
33 lbs

C1524

1,500 watt

24 volt

350 kg / 770 lbs

450 kgs / 990 lbs

65 A.

31 m min / 102 ft

14-20 mm
9/16"-3/4"

15 kgs
33 lbs



C912 Boat to 9m 30ft.     C1012 Boat to 12m 40ft     C1212 Boat to 16m 55ft     C1512/24 Boat to 21m 70ft

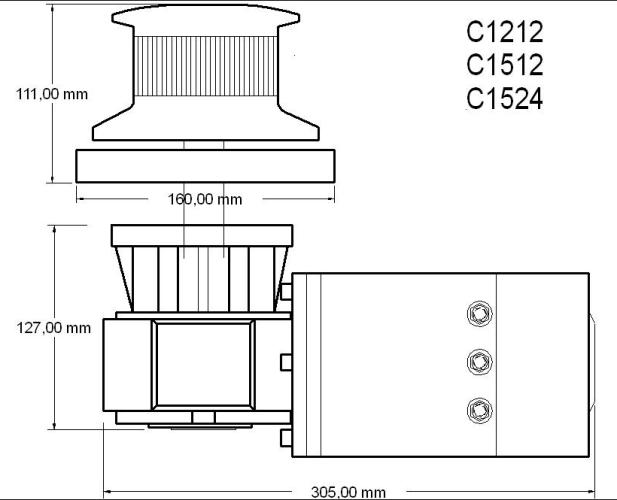

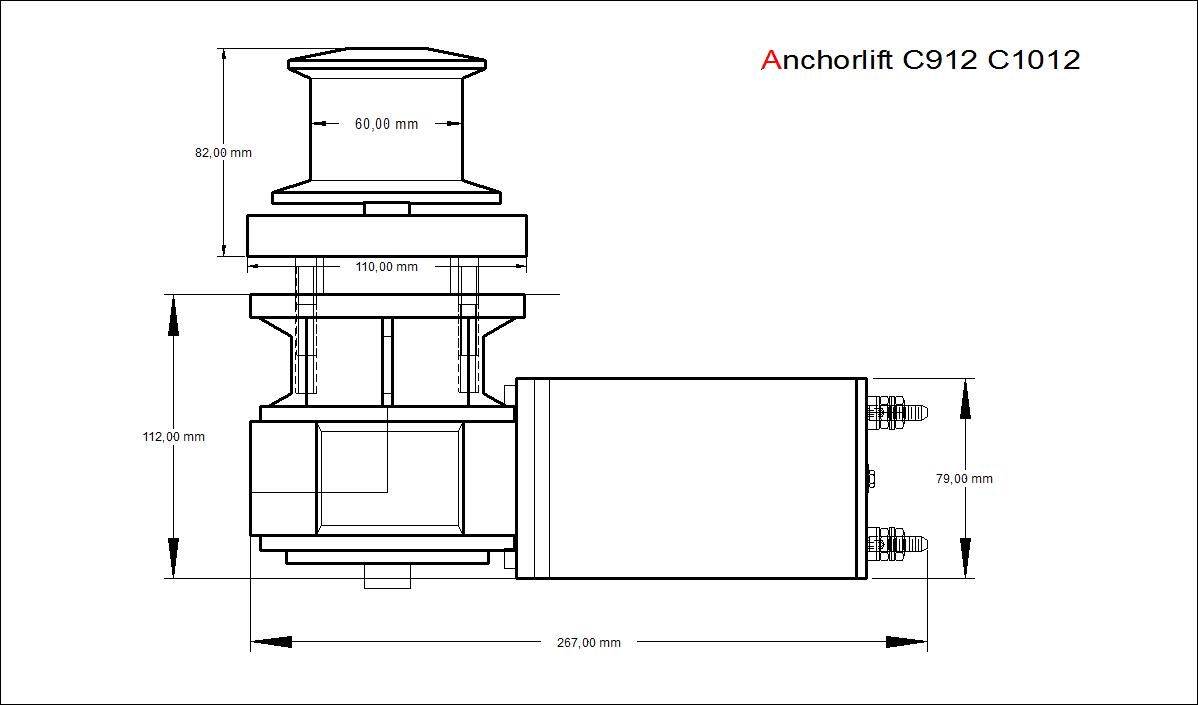

diagram icon



diagram icon
