Support Topics Overview

Click a topic to skip to that section:



Bow Windlass Installation Guides




Contact Support, Click Here



Anchorlift's 5-year Warranty


Anchorlift strives to make windlasses and windlass accessories with the highest quality materials possible and provides a 5-Year Warranty on all of our windlass models and windlass accessories. Anchorlift's 5-Year Warranty covers all windlass models and windlass accessories that are found to be defective and will replace the defective part(s) free of charge within 5 years of the purchase date.

EXCLUSIONS:
Natural wear and tear to the windlass models and windlass accessories is not coverd by Anchorlif'ts 5-Year Warranty. This Warranty does not apply to products that were damaged due to negligence, improper installation, improper use or any other actions not specified by Anchorlift. Windlasses should not to be used to haul the seabed to the boat, or drag the boat to the anchor. The proper way is motoring up to the anchor, and use the boat to " break" loose the anchor. If the boat is heavy for it`s size or is commercially used, please go up a size when choosing a windlass. This Warranty shall be voided if the equipment is alterred or repaired by unqualified personnel. Anchorlift's 5-Year Warranty does not include rope/chain combinations.

SHIPPING:
The purchaser is responsible for any shipping costs associated with replacing the defective part(s), as well as any charges associated with the removal of the defective part(s) and/or installation of the replaced part(s). Anchorlift will not pay for shipping on any received defective products. Anchorlift is not responsible for any damages to the gear/motor or any other parts caused by Anchorlift windlass models & accessories.

WARRANTY REPLACEMENT INSTRUCTIONS:
Mail the defective part(s) to us, with all shipping pre-paid.

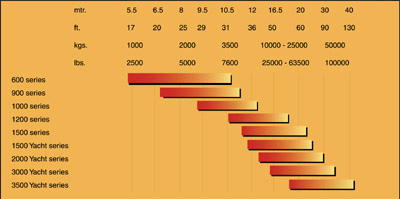

Buyers' Guide & Selection Chart


When selecting a windlass system there are some important matters to consider:
  • boat size
  • displacement
  • windage
  • anchor size
  • chain size
Choosing a windlass system too small for your boat could result in compromising your safety and inevitably costly repairs. The most common way to rate a windlass is by it`s maximum pulling power (or lifting power) and maximum working load. Anchorlift offers windlasses in several sizes and design and motors from 400 - 4000 watts in 12, 24, 230 & 380 v.

VERTICAL WINDLASSES
The vertical models such as the Barracuda, Dolphin, Mako & Aquarius are the most popular because they do not take up much space on deck and are lighter then the horizontal windlasses. They are also very easy to install and do not require any more mounting holes than the horizontal windlass models. A considerable advantage to the vertical windlasses is that they are better protected from direct contact with salt water, since the gear & motor are installed underneath deck. On the vertical windlasses the chain/rope takes a 180 degree turn around the gypsy before dropping, which means that the chain/rope sits tighter in the gypsy and runs better.

HORIZONTAL WINDLASSES
Horizontal windlass models such as Stingray have all of their parts above the deck and are usually chosen by boaters who either like the design or have a limited amount of space underneath deck for storing the chain/rope.

  PDF icon   Windlass Reference Guide (US)
  (40 Kb)
  PDF icon   Windlass Reference Guide (Euro)
  (43 Kb)

Bow Windlass Installation Guides

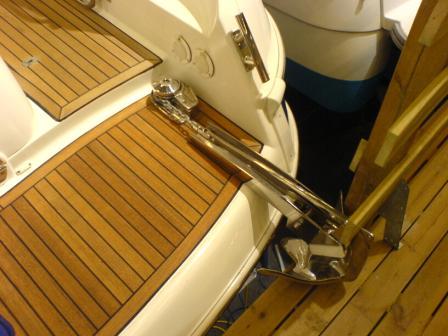

Boat: Bavaria 30 BMB
Windlass: Barracuda 900, B912 - Chain: 7mm - 1/4"
Bow Roller: Original
El kit: EL900
Anchor: Shark 10 kg
Extra: Foot switches, anchor connector.
The Barracuda 900 windlass is installed inside the anchor locker room. A "shelf" is installed to make this possible. Foot switches are mounted on each side of the windlass.

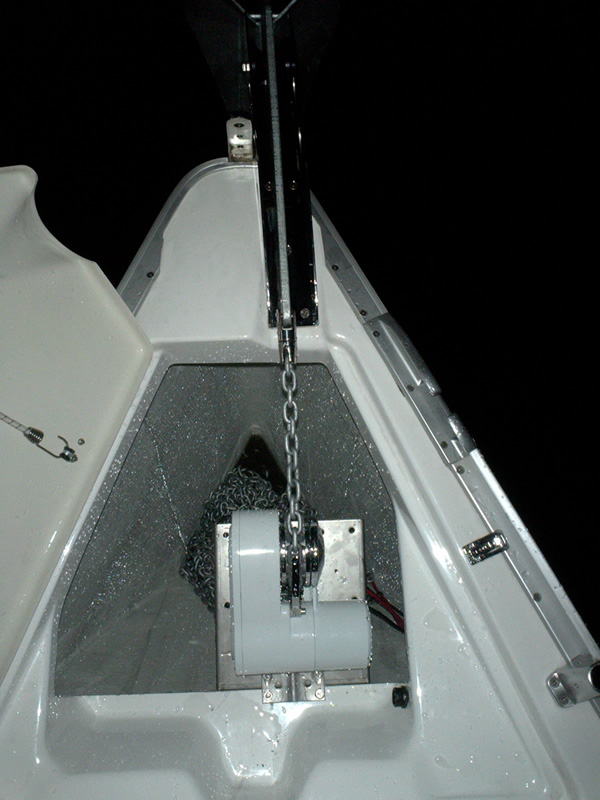

Boat: Bavaria 33C
Windlass: Stingray 900, SA912, Chain: 7mm
Bow Roller: Bavaria original
El kit: ELS900
Anchor: Shark 12 kg
Extra: Anchor connector 964408, Radio remote 91354. The Stingray 900 windlass is mounted on wall with bracket 90205.

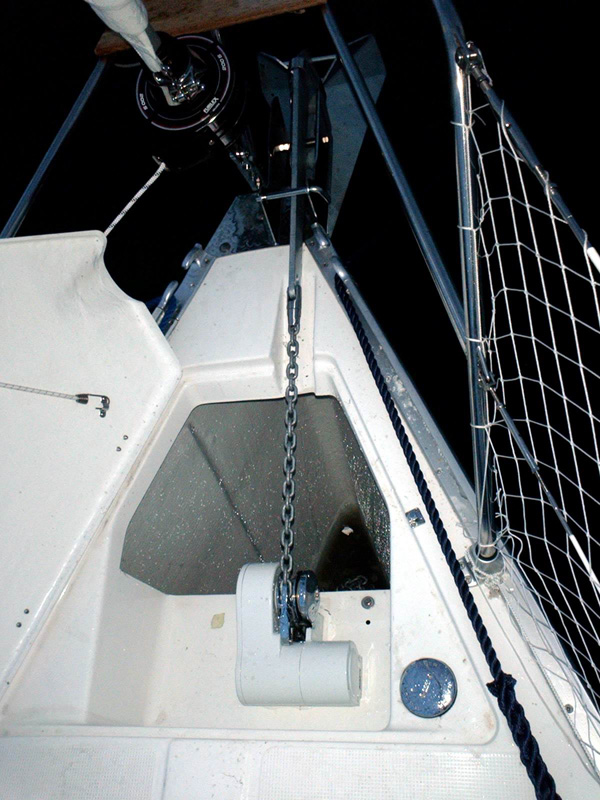

Boat: Bavaria 36C
Windlass: Stingray 900,  SA912-7, Chain: 7 mm
Bow Roller: Bavaria original
El kit: ELS900
Anchor: Shark 15 kg
Extra: Connector 964408, Radio remote 91354. The Stingray 900 windlass is mounted on original platform in achorlocker.


Boat: Bavaria 38
Windlass: M1212 - Mako 1200 Chain: 8 mm
Bow Roller: Original
El kit: EL1000
Anchor: Shark 15 kg
Extra: Foot switches.
The Mako 1200 windlass is mounted inside the locker room. A leader roller is installed to "press" the chain down to the correct angle. Foot switches are installed.



Boat: Bavaria 38 Match
Windlass: Stingray 900, Chain 7mm (1/4")
Bow Roller: 90103
El kit: EL900
Anchor: Shark 15 kg
Extra: Foot switches. Swivel 964408. Stingray 900 windlass is mounted on original plattform in
anchorlocker.

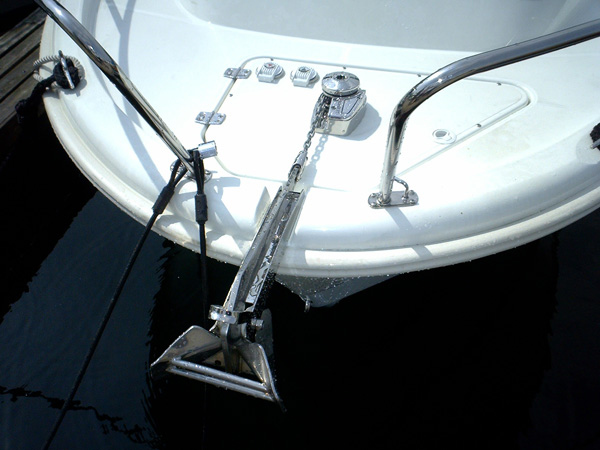

Boat: Beneteau 650
Windlass: Barracuda 600, chain: 6 mm
Bow Roller: 90125
El kit: EL900
Anchor: Shark stainless steel 6 kg (13 lbs)
Extra: Connector 964408, Footswitch 90900W. The Barracuda windlass is mounted into the hatch, which is bolted into the deck. Cut hatch in two to make an inspection hatch to the locker.


Boat: Beneteau Oceanis 323
Windlass: Stingray SA912, chain: 7 mm
Bow Roller: original Beneteau
El kit: EL900
Anchor: Shark stainless steel 10 kg (22 lbs)
Extra: Connector 964408, Radio remote 91354. There is a 38 mm (1-1/2") spacer under the windlass to make the chain angle correct.


Boat: Bianca
Windlass: D1012,  Dolphin 1000 chain: 8 mm
Bow Roller: 90103
El kit: EL1000
Anchor: 15 kg Holding anchor
Extra: Foot switches (90900UB, 90900DB)
The Dolphin 1000 windlass is installed in front of the hatch, with the motor facing backwards.



Boat: Cobolt 276
Windlass: Barracuda 600, chain: 7mm (1/4"")
Bow roller: Cobolt original, optionnal 90102
Anchor: 8 kg (17,6lbs) Pro Plow
Extra:
Connector 964408, Radio remote 91354



Boat: Contrast 362
Windlass: M1212, Mako 1200 chain: 8 mm (5/16")
Bow Roller: 90103
El kit: EL1200
Anchor: Shark 10 kg
Extra: Foot switches, anchor connector.
The mako 1200 windlass mounted on the hatch. The hatch is cut in two and the part where the windlass is installed is bolted and re-inforced.



Boat: "Christiane" 55ft, built 1879 in Sandviken Norway.
Windlass: A2524C, Aquarius 2500 chain 13mm (1/2")
Bow Roller: Custom
El kit: EL2500
Anchor: Patent 100 kg
Extra:
Radio remote, anchor connector.

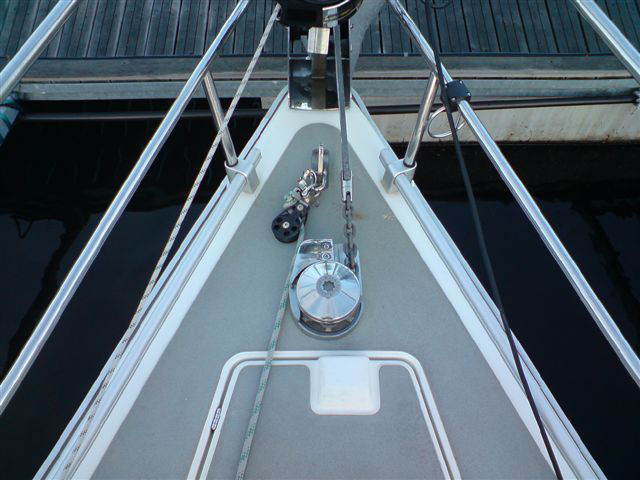

Boat: Etap 37S
Windlass: Dolphin 1000, chain: 8mm (5/16")
Bow roller: Etap original
Anchor: 15 kg plow
Extra: Connector 964410, Radio remote 91354

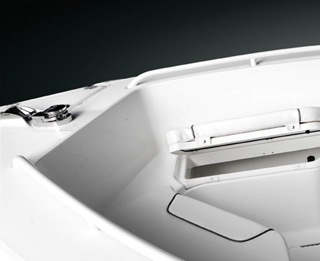

Boat: Everglades 250 CC
Windlass: Barracuda 600, chain: 7mm (1/4"")
Bow roller: Everglade original, optionnal 90102
Anchor: 8 kg (17,6lbs) plow
Extra:
Connector 964408, Radio remote 91354

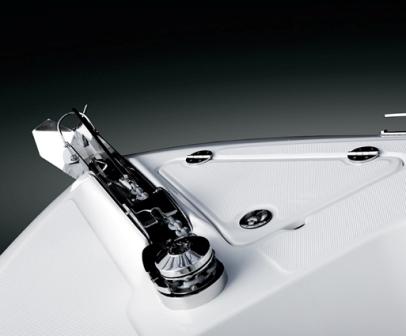

Boat: Everglades 270CC
Windlass: Barracuda 900, chain: 7mm (1/4"")
Bow roller: Etap original, optional 90102
Anchor: 8 kg (17,6lbs) plow
Extra:
Connector 964408, Radio remote 91354

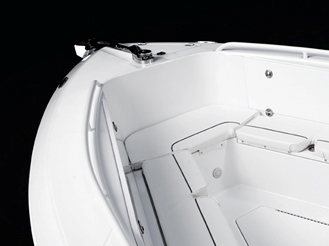

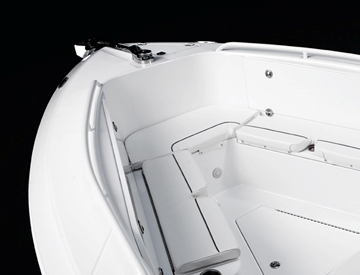

Boat: Everglades 290 Pilot
Windlass: Barracuda 900, chain: 7mm (1/4")
Bow roller: Etap original, optional 90102 / 90103
Anchor: 10 kg (22lbs) plow
Extra:
Connector 964408, Radio remote 91354

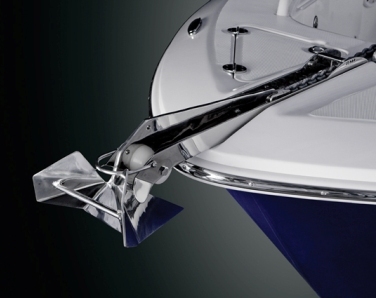

Boat: Everglades 290CC
Windlass: Barracuda 900, chain: 7mm (1/4"")
Bow roller: Etap original, optional 90102 / 90103
Anchor: 10 kg (22lbs) plow
Extra:
Connector 964408, Radio remote 91354

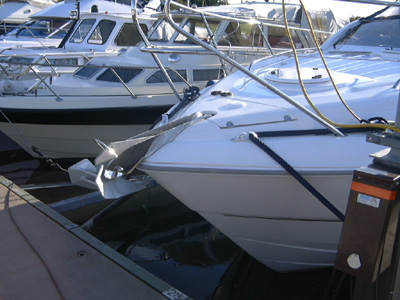

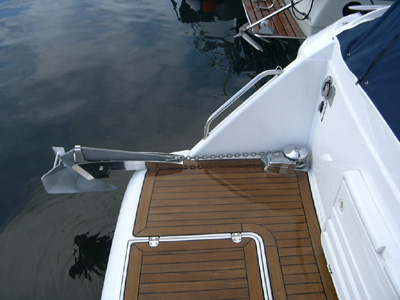

Boat: Fairline 36
Anchor: Shark 15 kg mounted in an original bow roller



Boat: Fairline Forthy (40)
Windlass: Mako R 1200. MR1212C-8 - Chain 8mm
Bow Roller: Fairline original
Anchor: 20kg 44lbs Claw stainless steel
El kit: EL1200
Extra: Anchor connector 964410 Radio remote 91354
In this case an older Simpson Lawrence windlass was replaced with the Mako 1200 Highspeed..

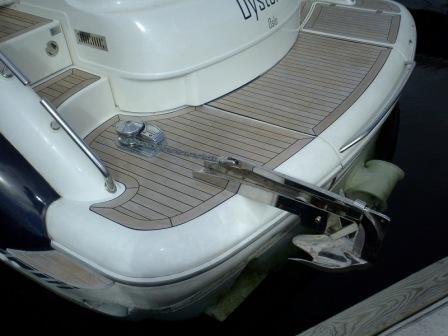

Boat: Fairline 48
Anchor: Shark 20 kg mounted in an original bow roller. A foot step is welded into the anchor to make boarding easier.




Boat: Forbina 36 Fly
Windlass: Barracuda 900 B912 -  Chain: 7mm / 1/4" Stainless steel
Bow Roller: 90103
Anchor: 10kg / 22lbs Claw anchor stainless steel
El kit: EL900
Extra: Anchor connector 964408 Radio remote 91354
Stainless steel chain is used because of limited storage for chain.




Boat: Gib Sea 33
Windlass: Barracuda 900 B912 -  Chain: 7mm / 1/4" Galvanized
Bow Roller: Gib Sea Original
Anchor: 10kg / 22lbs Plow
El kit: EL900
Extra: Anchor connector 964408 Radio remote 91354

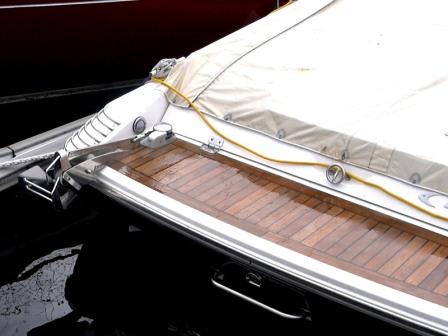

Boat: Goldfish 32
Windlass: Barracuda 900 B912 -  Chain: 6mm
Bow Roller: 90103
Anchor: 7,5 kg Holding anchor
El kit: EL900
Extra: Anchor connector 964408
The Barracuda 900 windlass is mounted on the deck. The bow roller is mounted a bit out from the bow to prevent the anchor to hit it.

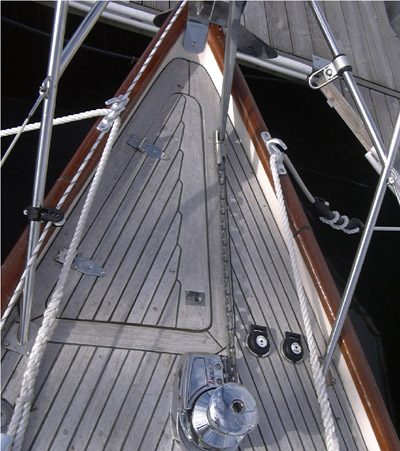

Boat: HallbergRassy 29
Windlass: M1212C Mako 1200 - Chain: 8mm - 5/16"
Bow Roller: Original
El kit: EL1200
Anchor: Original
Extra: Foot switches
An old manual windlass was replaced with Mako 1200 windlass with capstan. Foot switches are installed


Boat: HallbergRassy 312
Windlass: B912, Barracuda 900 chain: 7mm (1/4")
Bow Roller: original
El kit: original
Anchor: Recommended Shark anchor 10 kg
Extra: Foot switches, anchor connector. The Barracuda 900 windlass is mounted behind the hatch.

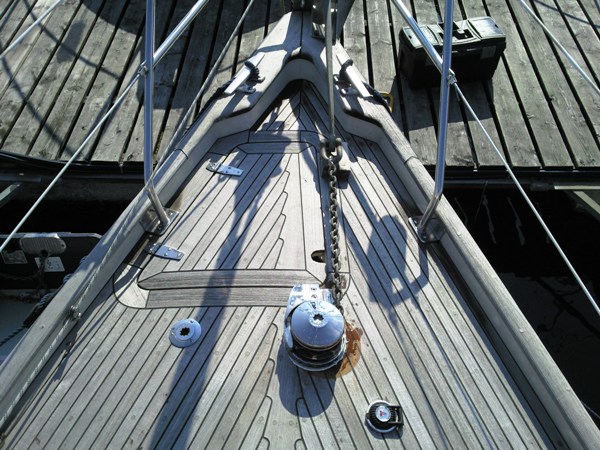

Boat: HallbergRassy 34
Windlass: D1012, Dolphin 1000 chain: 8mm (5/16")
Bow Roller: Original
El kit: Original
Anchor: Recommended Shark anchor 10 kg
Extra: In this case an older Lewmar windlass was replaced with the Dolphin 1000.



Boat: Hanse 341
Windlass: Stingray 900, SA912, chain: 7mm
Bow Roller: 90102
El kit: EL900
Anchor: Shark 12 kg (26 lbs)
Extra: Connector 964408, Radio remote 91354. The Stingray windlass is mounted on wall bracket 90205. There is a steel tube to hold the chain down to make it og under the hatch when the hatch is closed. 90102 roller is mounted inside the original roller, which makes the system self-launching.

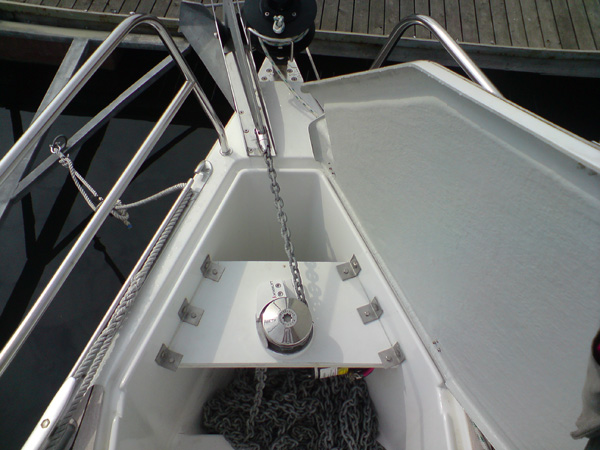

Boat: Hanse 400 Hanse 370
Windlass: Dolphin 1000, DC1012, chain: 8 mm
Bow Roller: Hanse original
El kit: E1200
Anchor: Shark 15 kg
Extra: Connector 964410, Radio remote 91354. A new platform has been made in order to position the windlass correctly.

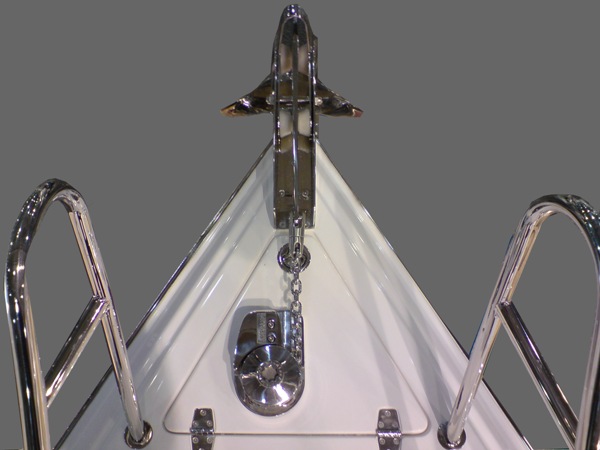

Boat: HighTech 31
Windlass: Barracuda 900, B916-6, chain: 6 mm (option 1/4" HT chain/rope combo)
Bow Roller: 90102
El kit: EL900
Anchor: Shark 8 kg (17 lbs)
Extra:
Connector 964408, Radio remote 91354



Boat: Maxi 999
Windlass: Barracuda 900, B912, Chain: 7mm (1/4")
Bow Roller: 90102
El kit: EL900
Anchor: Shark 10 kg
Extra: Foot switches, anchor connector. On this installation the hatch is cut in two. The part where the Barracuda 900 windlass is mounted is boltet firmly and re-inforced.

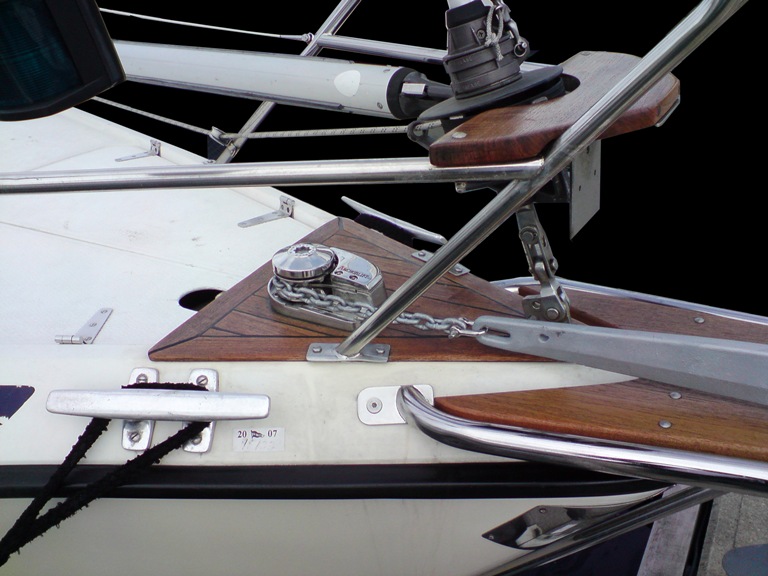

Boat: Maxi 108
Windlass: Barracuda 900, B912, Chain: 7mm (1/4")
Bow Roller:
Bow plattform with integral roller.
El kit: EL900
Anchor: Bruce 15 kg (33lbs)
Extra:
Foot switches.



Boat: Maxum 30
Windlass: Barracuda 900, B916-6, chain: 6 mm (option 1/4" HT chain/rope combo)
Bow Roller: 90103
El kit: EL900
Anchor: Shark 10 kg (22 lbs)
Extra: Connector 964408, Radio remote 91354, Footswitch kit 90900W. Standard bow mounting.

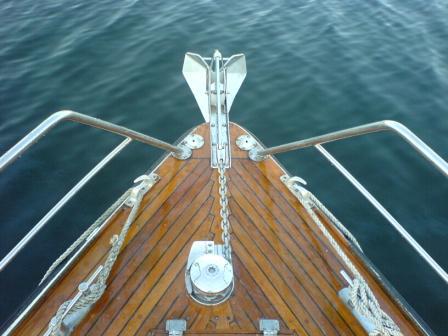

Boat: Motorboat 36ft

Windlass: Dolphin 1000, D1012-8, chain 8mm

Bowroller: 90103

El kit: EL1200

Anchor: Shark 15kg (33lbs)

Extra: Connector 964410, Radio remote 91354. Standar bow mounting




Boat: MTI V42
Windlass:
Dolphin 1000
Bowroller:
90126
Switching:
90801 Helm panel, 90135 circuit breaker, 90800 foot switch up/down.
Anchor:
XR15 + sviwel 964410
Rope Chain:
DB5/8-250

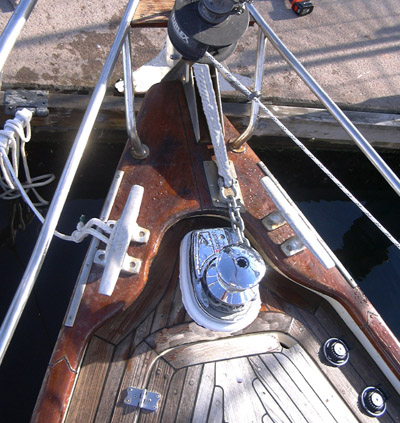

Boat: Najad 38
Windlass: Mako 1200, M1212C - Chain: 8mm - 5/16"
Bow Roller: Original
El kit: EL1200
Anchor: Original
Extra: Foot switches
An old manual windlass was replaced with Mako 1200 windlass with capstan. Foot switches are installed.

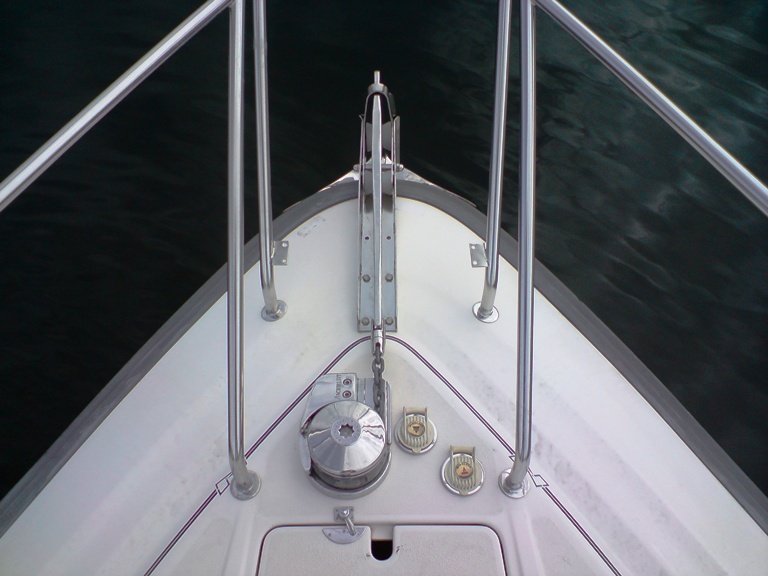

Boat: Nimbus 32
Windlass: Dolphin 1000. D1012 - Chain 1/4"
Bow Roller: 90103
El kit: EL1000
Anchor:
Holding anchor 10kg (22lbs) Stainless Steel
Extra: Foot switches




Boat: Nimbus 34 Nova
Windlass: Barracuda 900 B912 -  Chain: 7mm / 1/4" Galvanized
Bow Roller: 90103
Anchor: 15kg / 33lbs Claw
El kit: EL900
Extra: Anchor connector 964408 Radio remote 91354




Boat: Nor-Tech 390
Windlass: Dolphin 1000. D1012 -  Rope chain combo DB5/8-250.
Bow Roller: 90103
El kit: EL1000
Anchor:
Pro Claw (Bruce) 15kg (33lbs) Stainless Steel
Extra: Radio remote 91354, Swivel 964410.




Boat: Nor-Tech 340
Windlass: Barracuda 900 Low 900w 12v 7mm / 1/4" gypsy - Rope chain combo DB1/2-150
Bow Roller: 90103
El kit: EL900
Anchor:
Pro Claw (Bruce) 10kg (22lbs) Stainless Steel
Extra: Radio remote 91354, Swivel 964408




Boat: Nor-Tech 420 Monte Carlo
Windlass: Dolphin 1000. D1012 -  Rope chain combo DB5/8-250.
Bow Roller: 90103
El kit: EL1000
Anchor:
Pro Claw (Bruce) 15kg (33lbs) Stainless Steel
Extra: Radio remote 91354, Swivel 964410.




Boat: Nor-Tech 80 Roadster
Windlass: DMako 2000 M2024, 2000w 24v 3/8"-10mm chain
Bow Roller: 90105
El kit: EL2500
Anchor:
Pro Plow 30kg / 66lbs stainless steel.
Extra: Radio remote 91354, Swivel 964412 Foot switch 90900B.



Boat: Nordwest 900
Windlass: Mako 1200, M1212 - Chain: 8mm - 5/16"
Bow Roller: 90114
El kit: EL1200
Anchor: Shark 10 kg
Extra: Foot switches, anchor connector
An installation using the bow roller 90114. This roller is made so that the chain will not tear on the deck when the chain is casted.



Boat: Nordic Oceancraft 22CC
Windlass: Barracuda 900, B916-6, chain: 6 mm (option 1/4" HT chain/rope combo)
Bow Roller: 90102
El kit: EL900
Anchor: Shark 6 kg (13 lbs)
Extra:
Connector 964408, Radio remote 91354




Boat: Nord Star 24
Windlass: Barracuda 900, B912 - Chain: 6mm
Bow Roller: 90102
El kit: EL900
Anchor: Holding anchor 7,5 kg
Extra:
Radio remote 91354, anchor connector 964408.




Boat: Nord Star 28
Windlass: Barracuda 900, B912 - Chain: 6mm
Bow Roller: 90102
El kit: EL900
Anchor: Holding anchor 7,5 kg
Extra:
Radio remote 91354 connected both to windlass and bowthruster, anchor connector 964408.
Windlasses is mounted to STB side to make boarding easier.

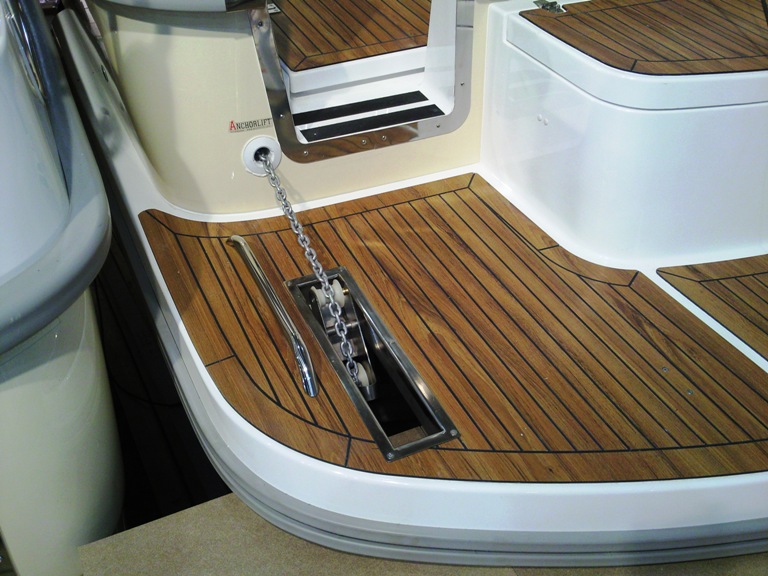

Boat: Nord Star 31
Windlass: Dolphin 1000, D1012 - Chain: 7mm
Bow Roller: 90102
El kit: EL1000
Anchor: Holding anchor 10 kg
Extra: Foot switches, anchor connector. Radio remote
The Dolphin 1000 windlass is mounted on the hatch. The hatch is boltet firmly to the deck. UP & DOWN foot switches are mounted in front of the windlass


Boat: Princess / Viking 20M
Windlass: Aquarius 2524C, A2524C Chain: 13 mm
Bow Roller: Princess original, modified by Anchorlift to self-launching
Anchor: Holding anchor 50 kg (110 lbs)
Extra: Anchor connector 964412, Radio remote 91354
In this case an older Lewmar windlass was replaced with the Aquarius 2500.

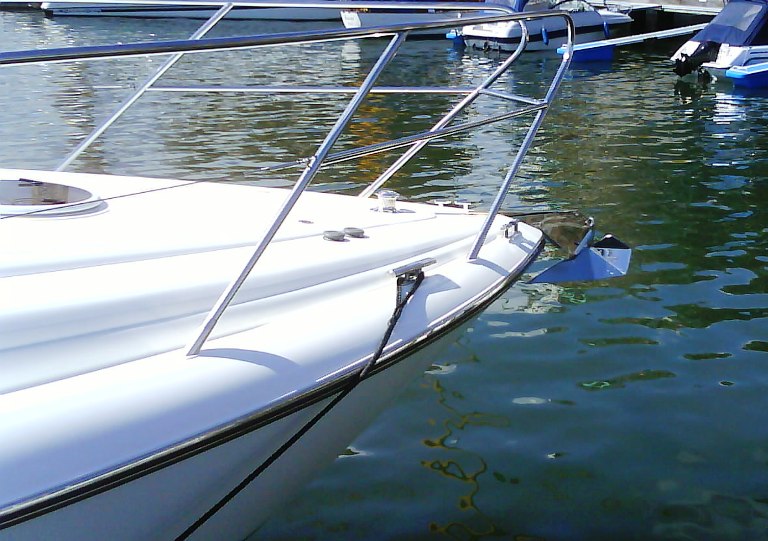

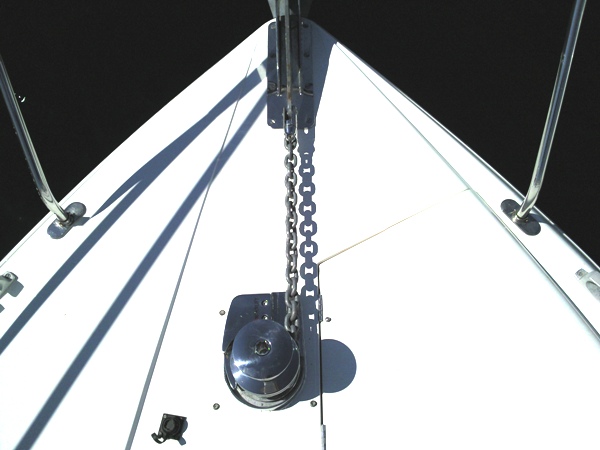

Boat: Princess V48
Windlass: Mako 1524, M1524C Chain: 10 mm
Bow Roller: Princess original, modified by Anchorlift
Anchor: Shark anchor 20 kg (44 lbs)
Extra:
Anchor connector 964412, Radio remote 91354
In this case an Lewmar windlass was replaced with the Mako 1500 Highspeed.




Boat: Princess 48
Windlass: Mako 1500, M1524C Chain: 10 mm
Bow Roller: Princess original.
Anchor: Plow 16 kg (35 lbs)
Extra:
Anchor connector 964410, Radio remote 91354
In this case an older Lewmar windlass was replaced with the Mako 1500 Highspeed.



Boat: Procat 26 - 2660
Windlass: Barracuda 900, B912 Chain 7mm (1/4")
Chain: Rope / chain combo 2007RC-150
Bow Roller: 90102.
El kit: EL900
Anchor: Holding anchor 16.5lbs / 7,5 kg ss
Extra: Anchor connector


Boat: Scanmar 33
Windlass:Barracuda 900, B912 - Chain: 7mm (1/4")
Bow roller: 90103
El kit: EL900
Anchor: Holding anchor 10 kg
Extra: Foot switches, anchor connector.
The Barracuda 900 windlass is mounted with a stainless steel bracket to the back wall in the anchor locker. A space is cut in the deck for the chain to run smoothly



Boat: Scand 29 Baltic
Windlass:Barracuda 900, B912 - Chain: 6mm
Bow roller: 90103
El kit: EL900
Anchor: Holding anchor 10 kg stainless steel
Extra: Anchor connector. Radio remote

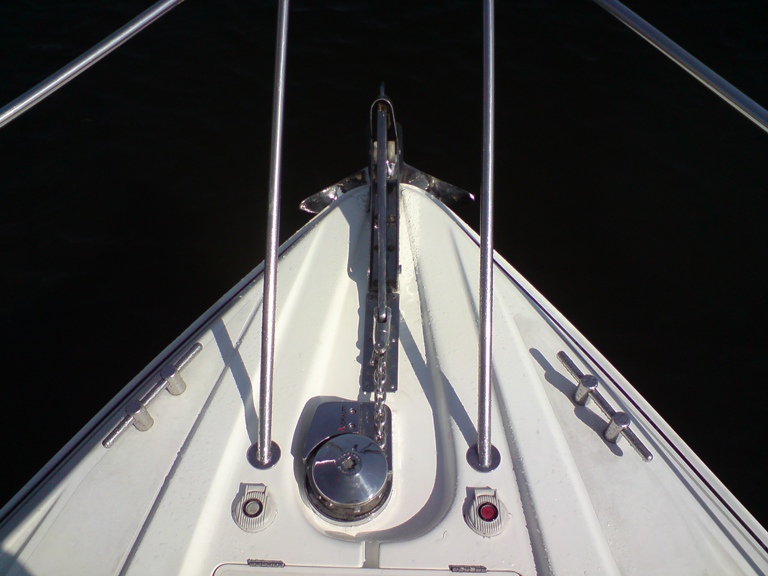

Boat: Sunseeker 46
Windlass: Mako 1500, M1524, chain: 10 mm (3/8")
Bow Roller: Sunseeker original
Anchor: 20 kg Holding Stainless Steel
Extra: Radio remote 91354, Connector 964408
In this case an older Simpson Lawrence windlass was replaced with the Mako 1500.

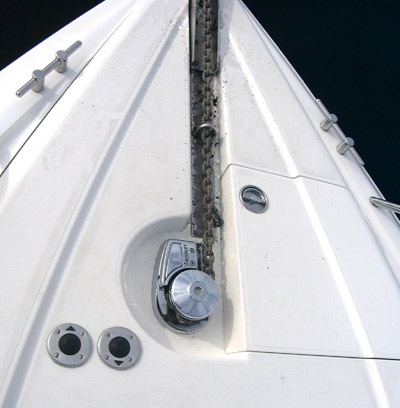

Boat: Sunseeker 50
Windlass: Mako 1500, M1524 Chain 10mm (3/8")
In this case an older Lewmar windlass was replaced with the Mako 1500 24v windlass

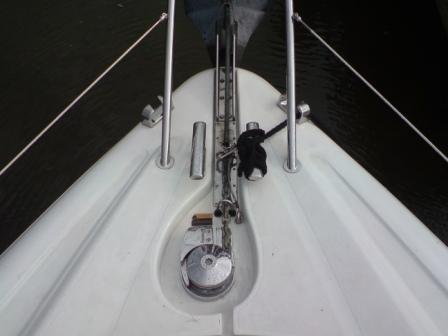

Boat: Sunseeker P62
Windlass: Mako 1500, M1524, chain: 10 mm (3/8")
Bow Roller: Sunseeker original
Anchor: 20 kg
Extra: Radio remote 91354, Connector 964408
In this case an older Simpson Lawrence windlass was replaced with the Mako 1500.



Boat: Skilo 33
Windlass:
Barracuda 900. B912 chain 6mm
Bow Roller: 90103
Anchor: Holding 10 kg (22 lbs)
Extra: Connector 964410, Radio remote 91354

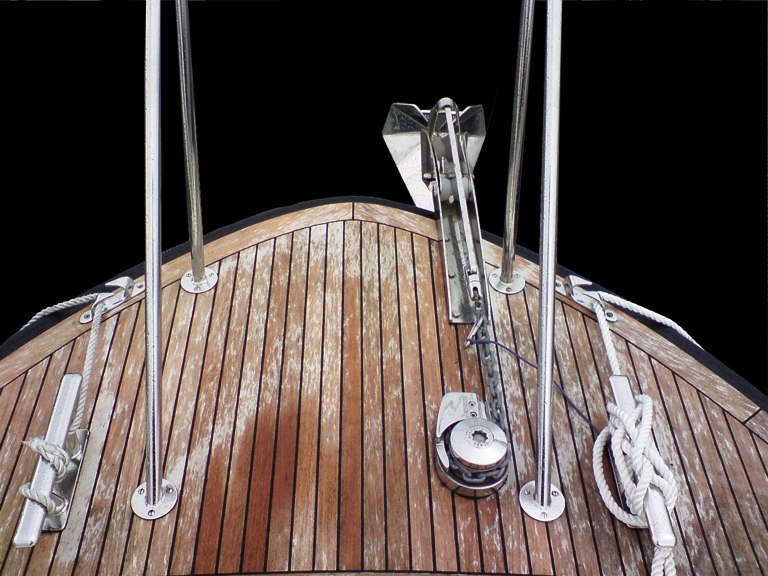

Boat: Targa 31
Windlass: Barracuda 900, B912 chain: 7 mm (1/4")
Bow Roller: 90103
Anchor: Shark stainless steel 10 kg (22 lbs)
Extra: Radio remote 91354, Connector 964408
In this case the system is mounted to the starboard side to make boarding easier.



Boat: Tempest FCI 44
Windlass: Mako 1500, M1524, chain: 5/16" (8mm)
Bow Roller: 90104
Anchor: 20 kg Pro Plow Stainless Steel
Rope/Chain: DB5/8-250 20ft 5/16" chain + 250ft 5/8" rope.
Extra: Radio remote 91354, Connector 964410




Boat: Utter D66
Windlass: Barracuda 900 Low 900w 12v 7mm / 1/4" gypsy - Rope chain combo DB1/2-150
Bow Roller: 90103
El kit: EL900
Anchor:
Pro Claw (Bruce) 7,5kg (16,5lbs) Stainless Steel
Extra: Radio remote 91354, Swivel 964408

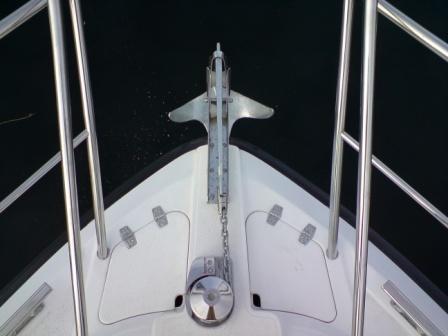

Boat: Viknes 360
Windlass: Dolphin 1000, D1012 Chain: 8 mm (5/16")
Bow Roller: 90103
Anchor: Holding 15 kg (33 lbs)
Extra: Connector 964410, Radio remote 91354


Boat: Wellcraft
Windlass: Barracuda 600, B612 - Chain: 6mm
Bow Roller: 90113
El kit: EL600
Anchor: Holding Anchor 7,5 kg
In this case the Barracuda 600 is mounted on a stainless steel plate on the deck

Feel free to Contact Us if you have any trouble installing your Anchorlift windlass or windlass accessories.


Stern Windlass Installation Guides

Askeladden 705

Askeladden Beatle

Bavaria 30

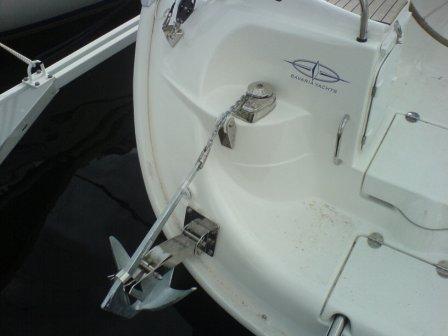

Bavaria 30C

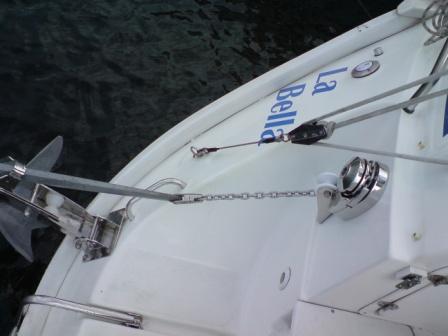

Bavaria 31

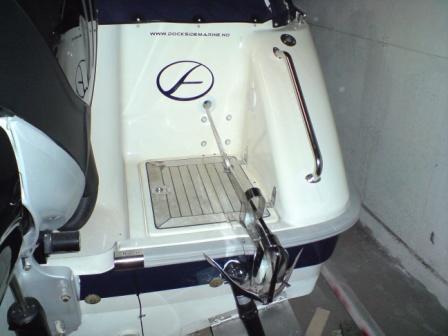

Aquador 21 WA

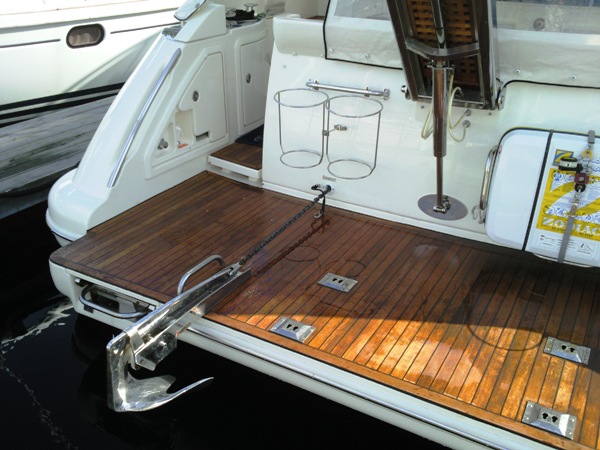

Azimut 43

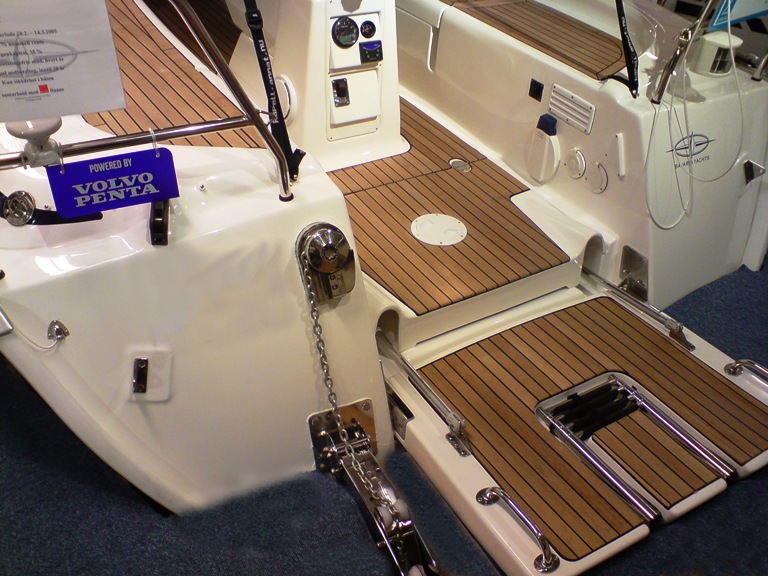

Bavaria 34C

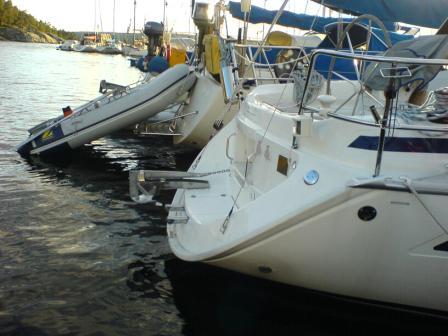

Bavaria 32

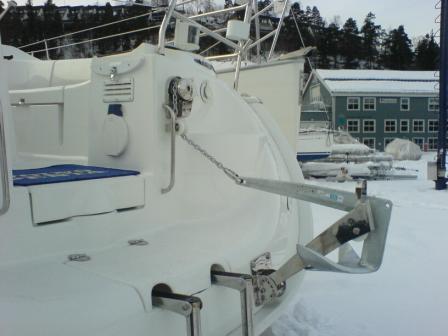

Bavaria 33

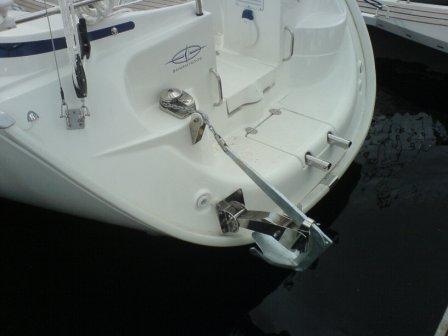

Bavaria 33A

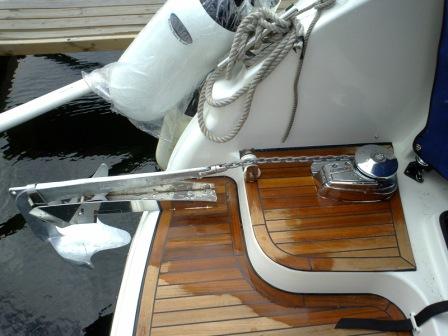

Bavaria 37

Bavaria 38B
Bavaria 38 Sail

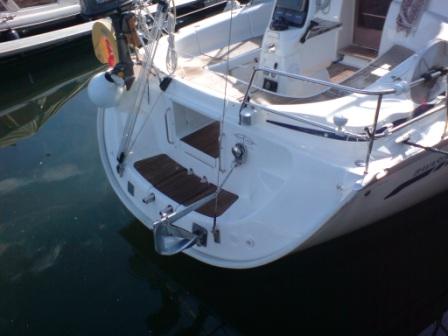

Bavaria 39

Bavaria 40 Sail

Bavaria 44 Vision

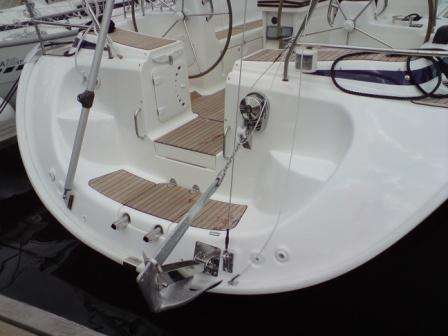

Bavaria 46

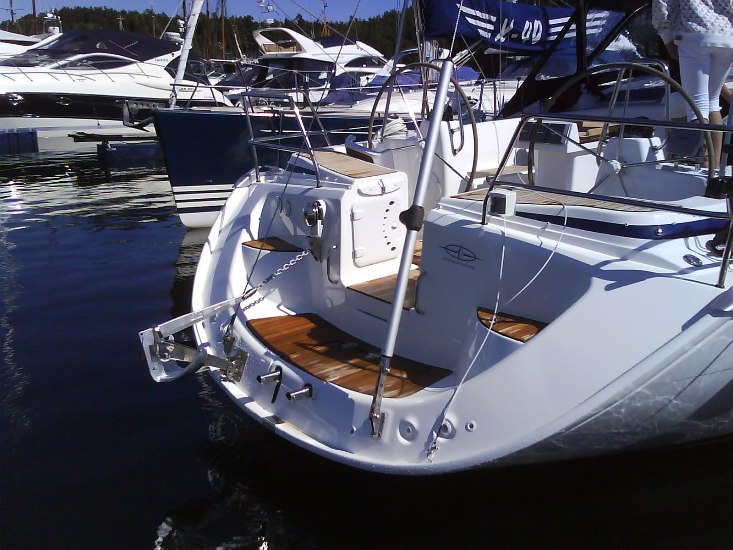

Bavaria 50 Sail

Bavaria 50 Vision


Ibiza 24


Bayliner 2355

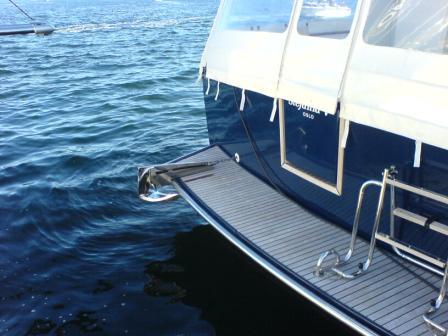

Beneteau 42 Trawler
Beneteau 750 WA

Bavaria 27

Bavaria 29

Bavaria 32

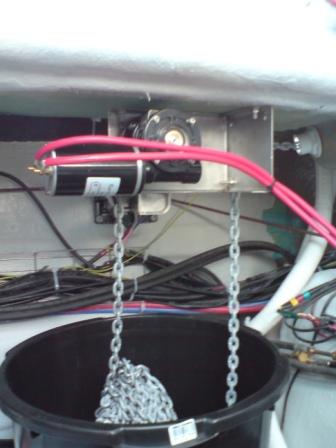

Bavaria 30 - 33 - 37
Bavaria 35

Bavaria 37

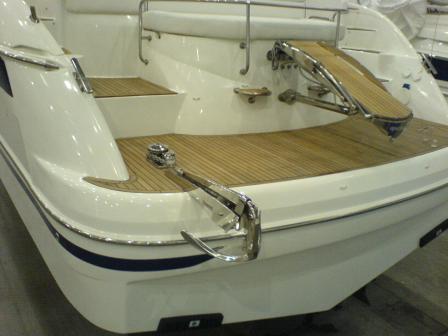

Bavaria 42


Bavaria 28



Bavaria 38

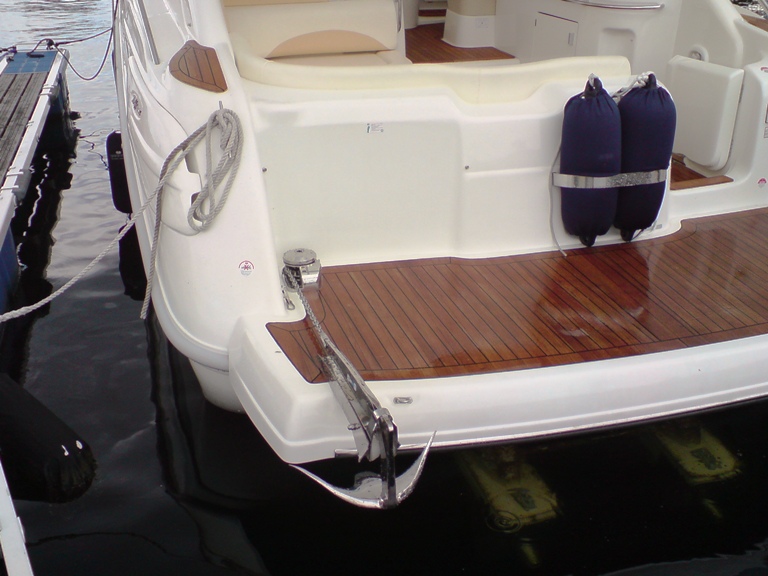

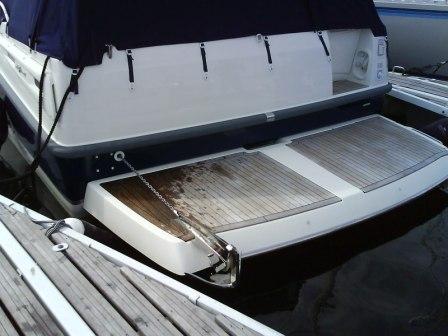

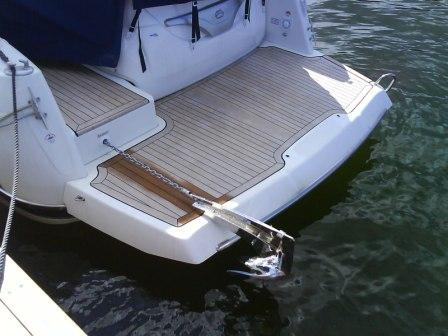

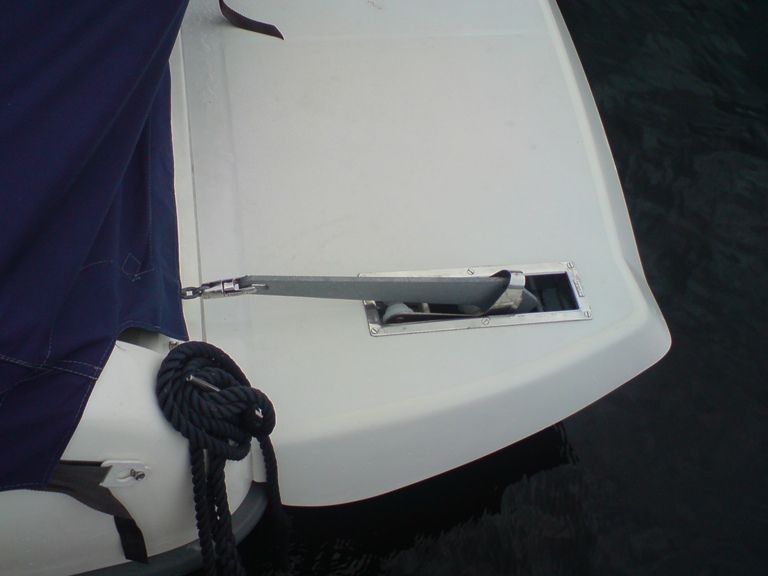

         Cranchi Z.28                        Cranchi Z.34                            Cranchi 31                          Cranchi 41                    Bavaria 34 S

Draco 23

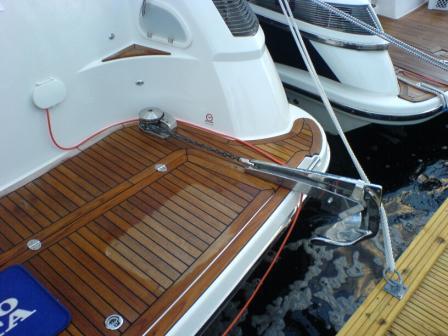

Elan 42

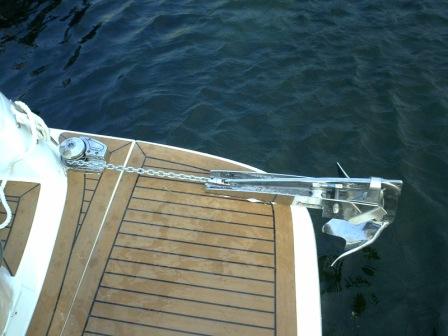

Faeton 26 S

Faeton 29 S

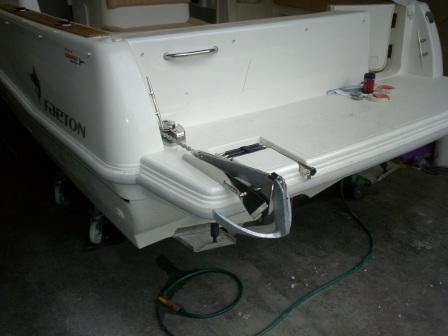

Faeton 790

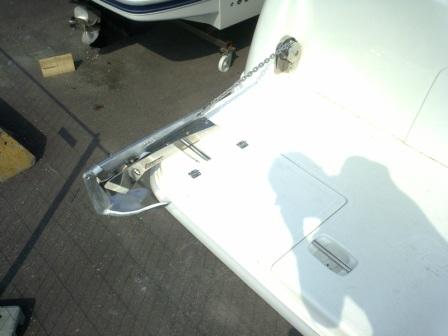

Faeton 1040

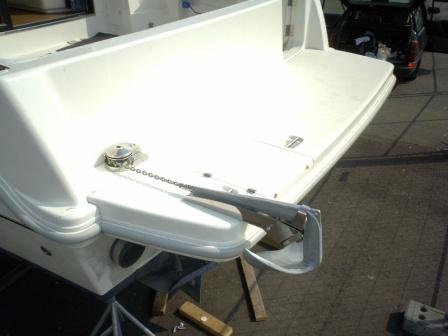

Faeton 1180

Fairline 36

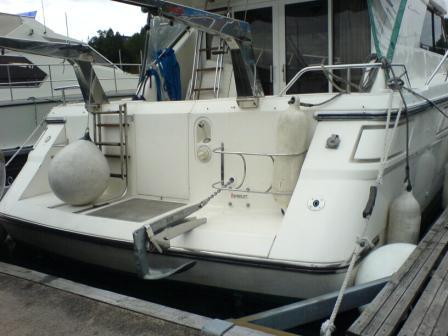

Fairline 37 Corsica

Fairline 48

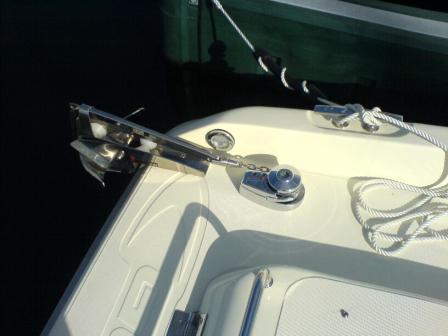

Goldfish 22

Goldfish 32 Hekk

Hallberg Rassy 34

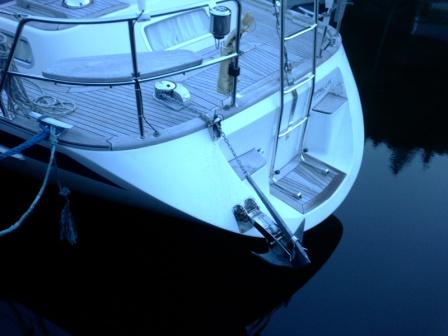

Hallberg Rassy 36

Hallberg Rassy 382

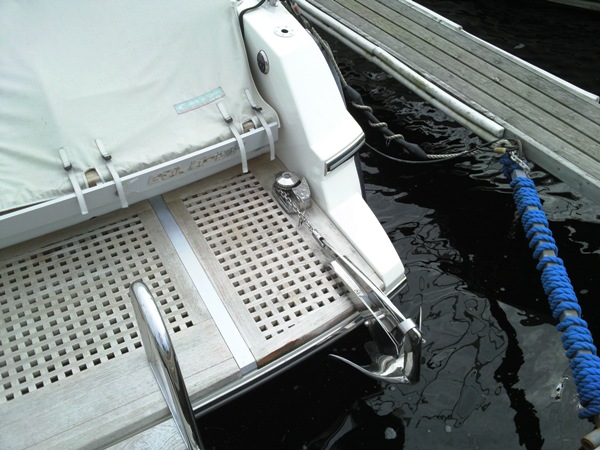

Goldfish 30

Goldfish 25 - 29


Hanse 341 Akter

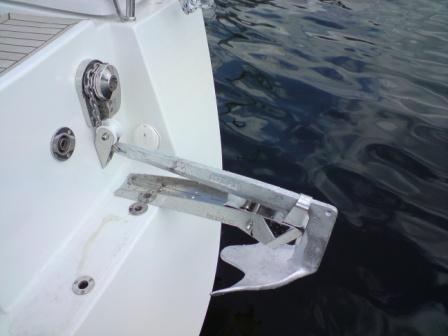

Hanse 350

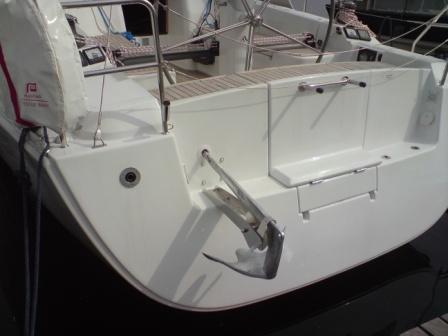

Hanse 370

Hanse 411

Havboat






         Hanse 341                          Hanse 370                             Hanse 400                             Hanse 411                        Hanse 540

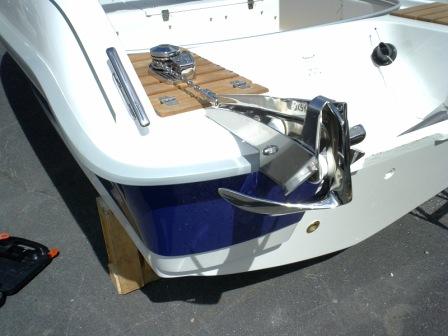

Ibiza 20

Ibiza 21

Ibiza 21W

Ibiza 22

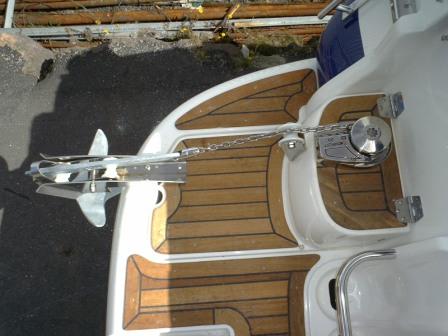

Ibiza 23

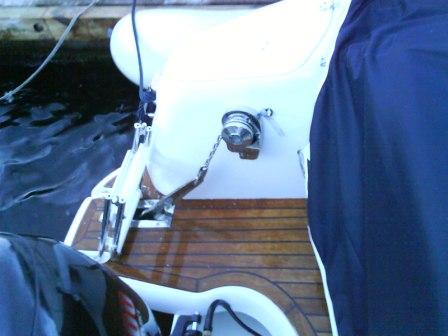

Ibiza 24

Jeanneau 36I - 39I


Jeanneau 37

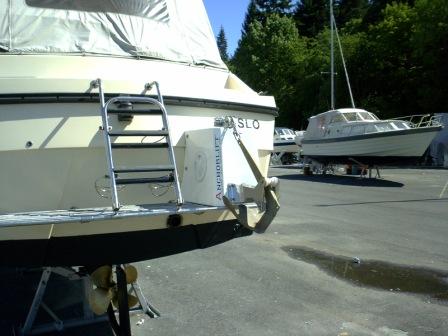

Marex 77

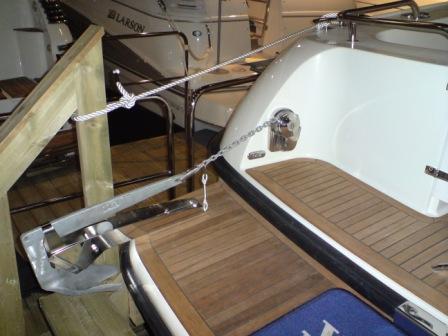

Masmar 31

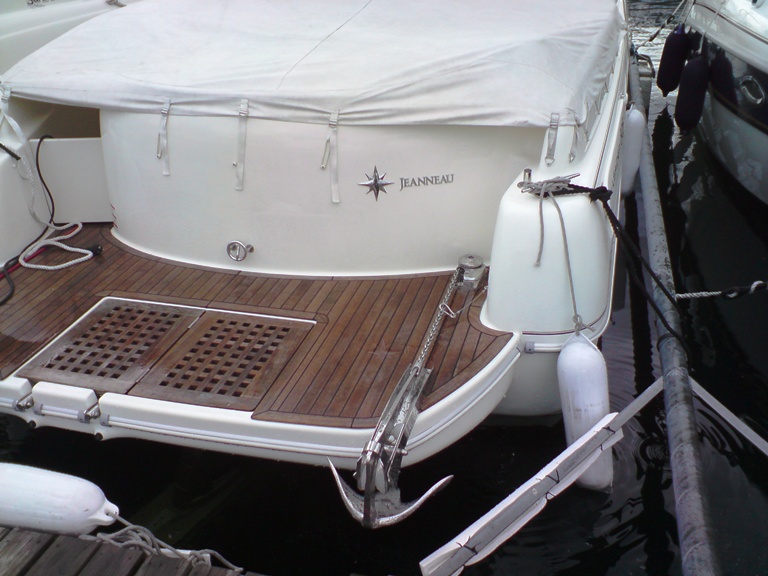

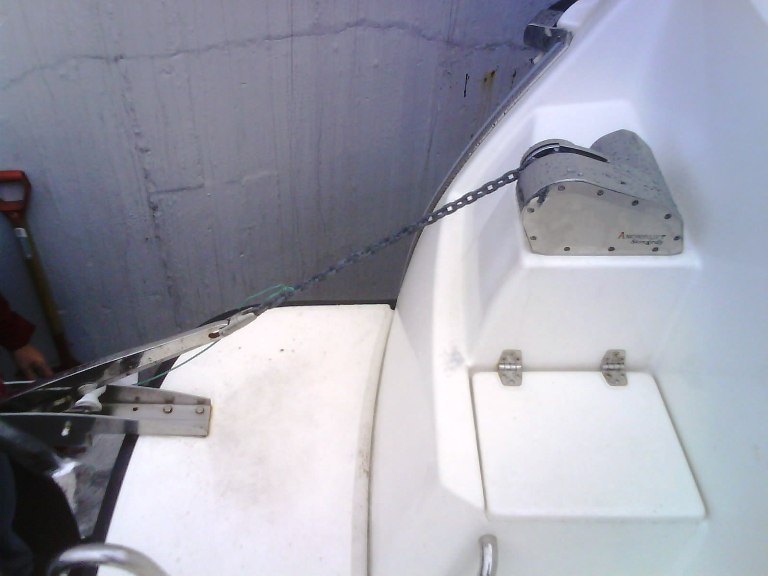

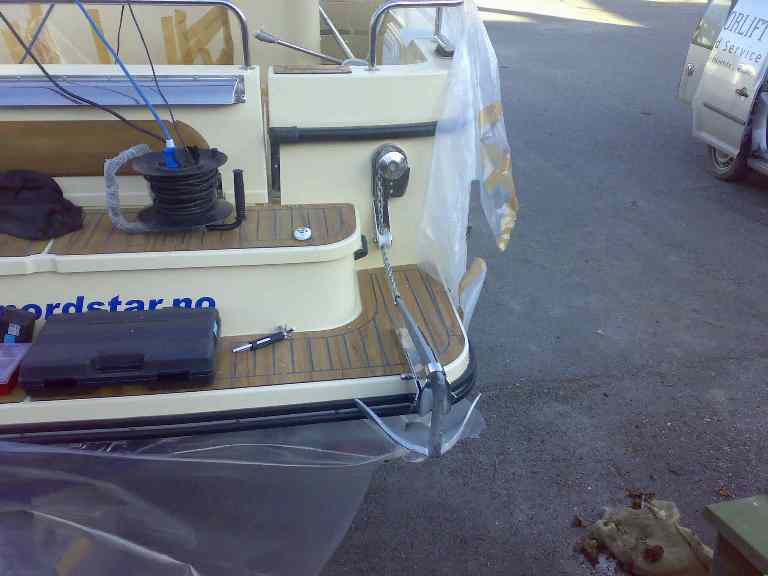

              NB 840                      Nord Star 40                          Nord Star 24                        Nidelv 26                        Jeanneau L.805


Nimbus 320

Nord Star 28


Nord Star 31



Ovni 395










        Princess 35                         Princess 50

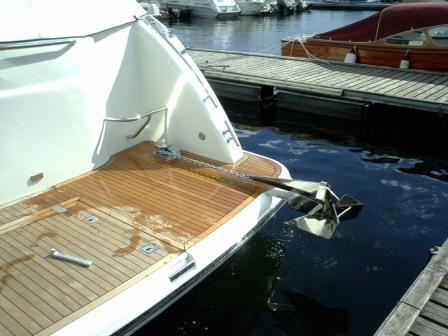

Princess 57

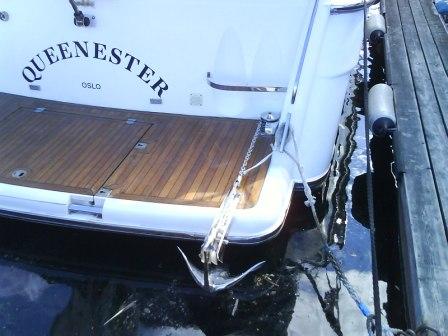

Princess 430

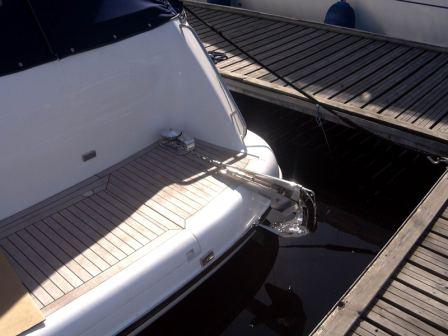

Princess P38

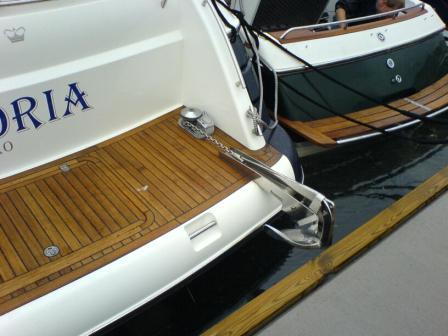

Princess V42

Princess V48

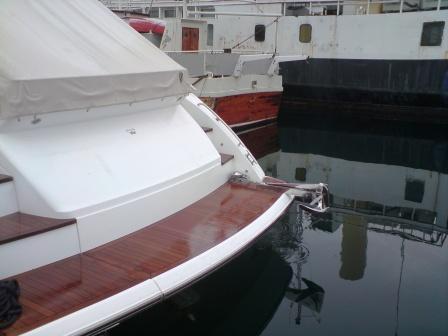

Princess V45

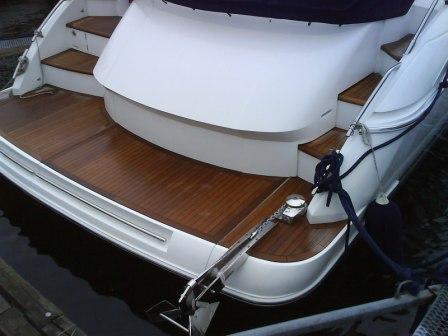

Princess V53

Princess 48

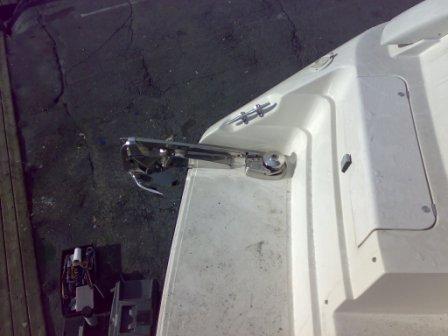

Regal Akter

Scand 9200

Scand Classic 25

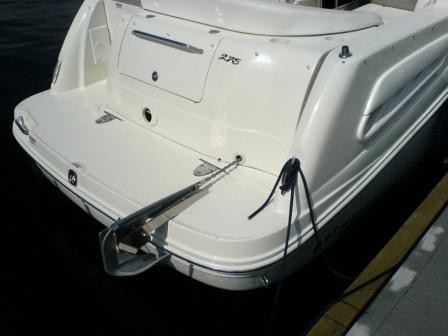

Searay 275

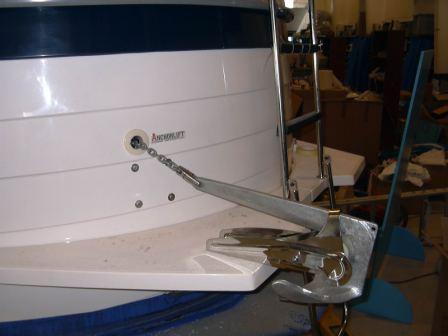

Skagerak 800

Skibsplast 605

Skibsplast 660

Skilso 33 Akter

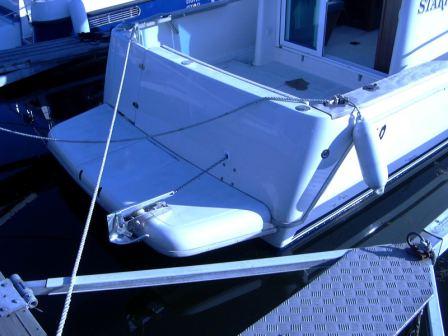

Starfisher 24

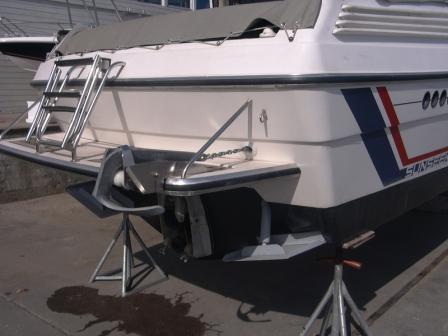

Sunseeker 24

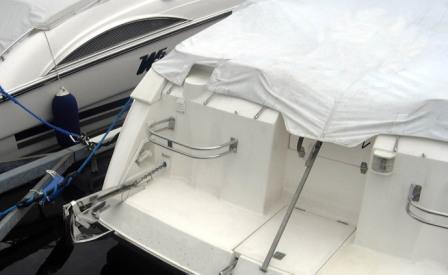

Sunseeker 32

Sunseeker P62

Targa 25

Uttern D68

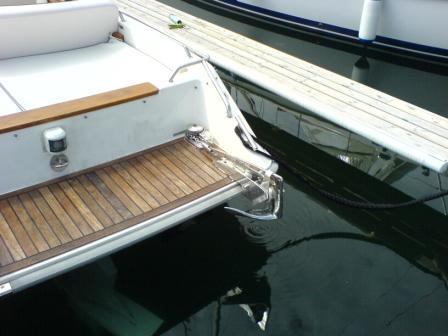

Windy 7500

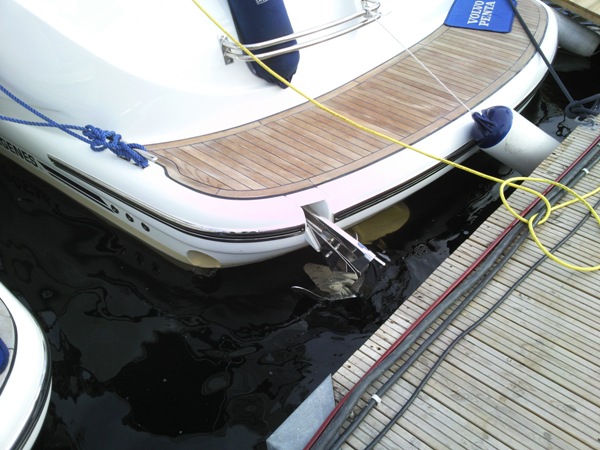

Skorgenes 395



Tresfjord A.390






Windy 761

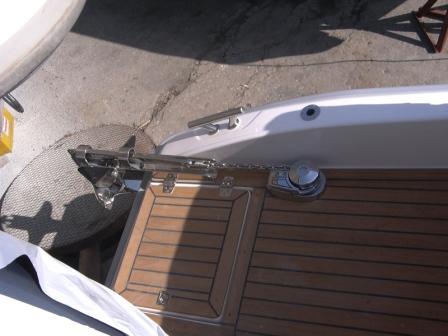

Windy 760

Yamarin

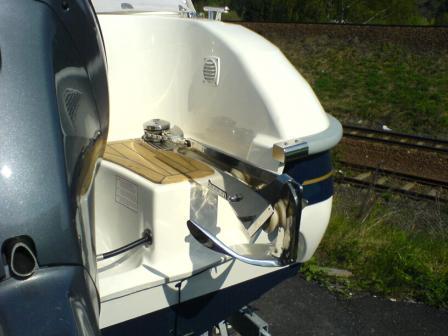

Yamarin 58 BR





User Manual Downloads / Mounting Template / Partlist

  PDF icon   PDF icon
  Radio Remote User Manual
  (536 Kb)

  PDF icon   Installation Quick Guide
  (900 Kb)
  PDF icon

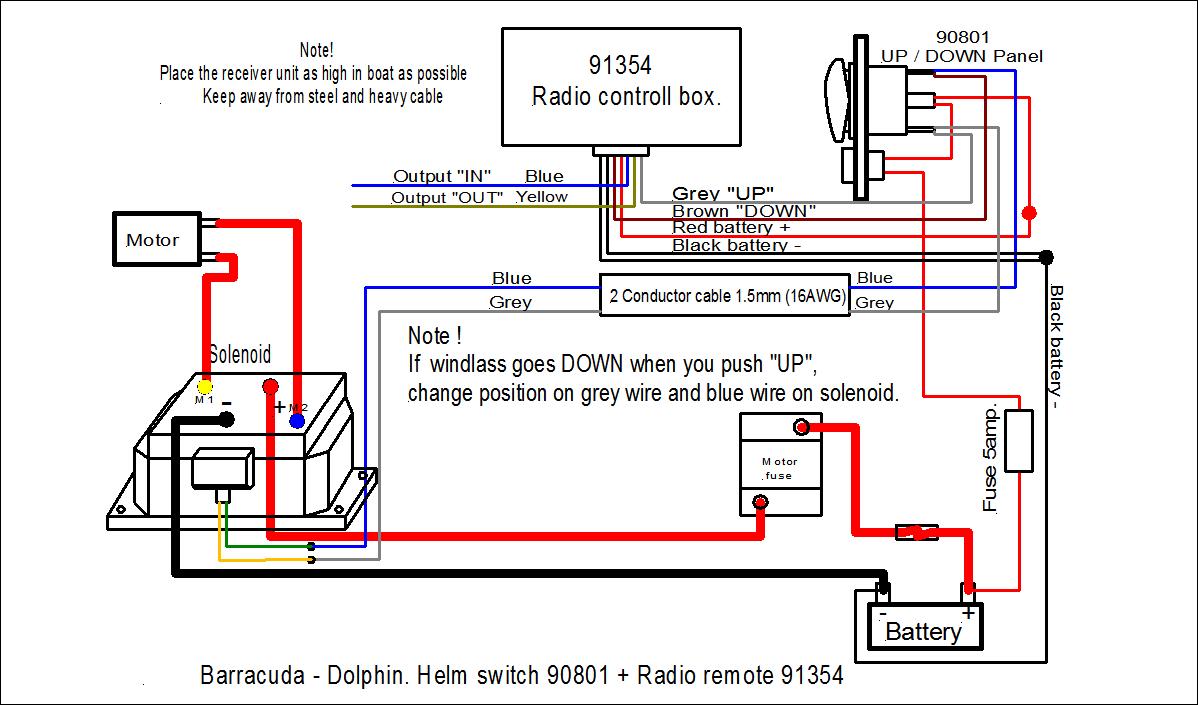

Wiring Radio / Barracuda-Dolphin
  (100 Kb)


  PDF icon   Svensk Windlass User Manual
  (2.2 Mb)
  PDF icon

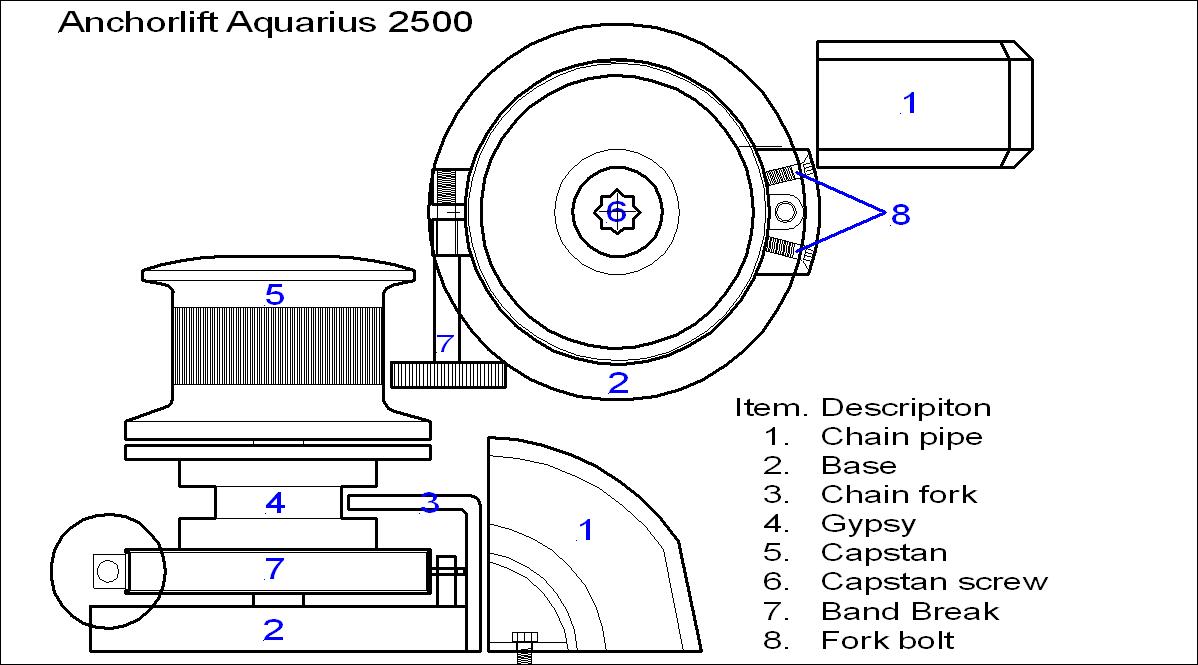

 Aquarius Partlist
  (100 Kb)


  PDF icon  Norsk Windlass User Manual
  (1.5 Mb)
  PDF icon

 Aquarius User Manual Extras
  (100 Kb)


  PDF icon  90503 Solenoid Service
  (700 Kb)
  PDF icon

 Stainless Steel Maintenance
  (600 Kb)


  PDF icon  Small type 90503 solenoid
 repair  (150 Kb)
  PDF icon  90501-2-4 Solenoid Upgrade
  (700 Kb)

  PDF icon  Change oil on gear box -
  repair oil leakage
(620 Kb)
  PDF icon  Mounting Stainless Steel cover on
 Stingray Composite.
(550 Kb)

  PDF icon  Diassembly gear from deck side
  (700 Kb)
  PDF icon  2 wire motor trouble shooting
  test diagram.
(40 Kb)

  PDF icon  DB rope / chain maintenance
  (700 Kb)

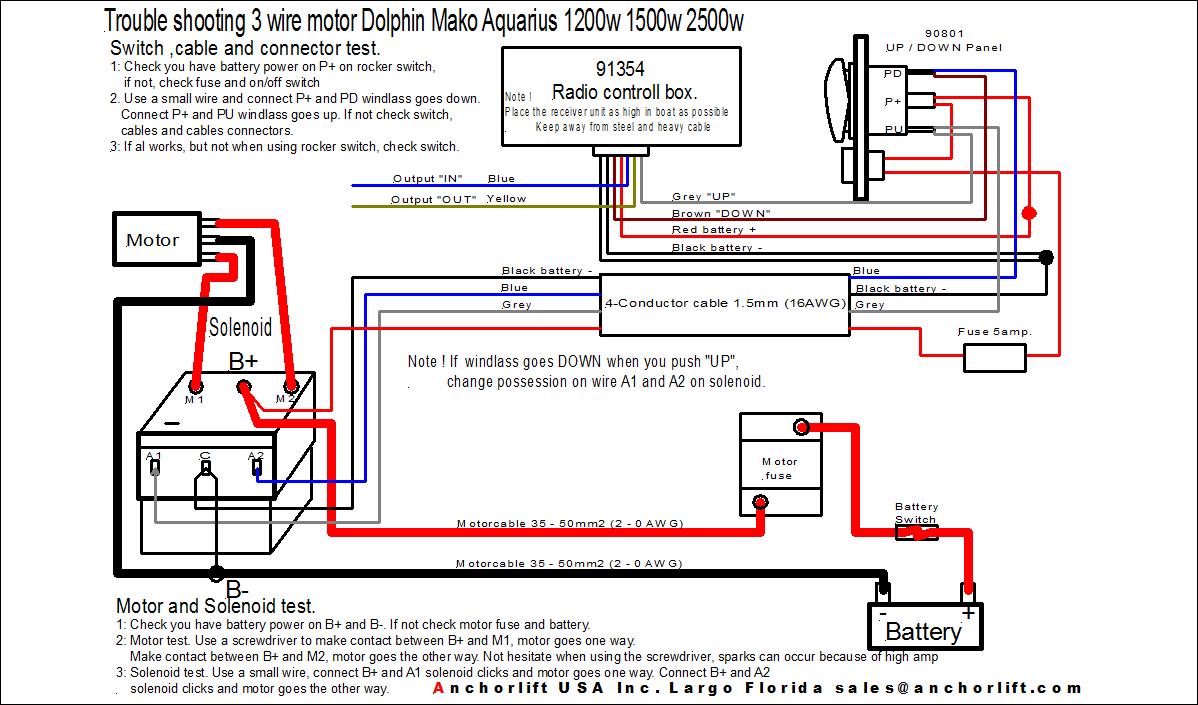

  PDF icon  3 wire motor trouble shooting
  test diagram.
(40 Kb)

  PDF icon  Chain jamming in windlass
 6mm DIN766
(700 Kb)
  PDF icon  Radio remote trouble shooting
 Battery change.
(250 Kb)

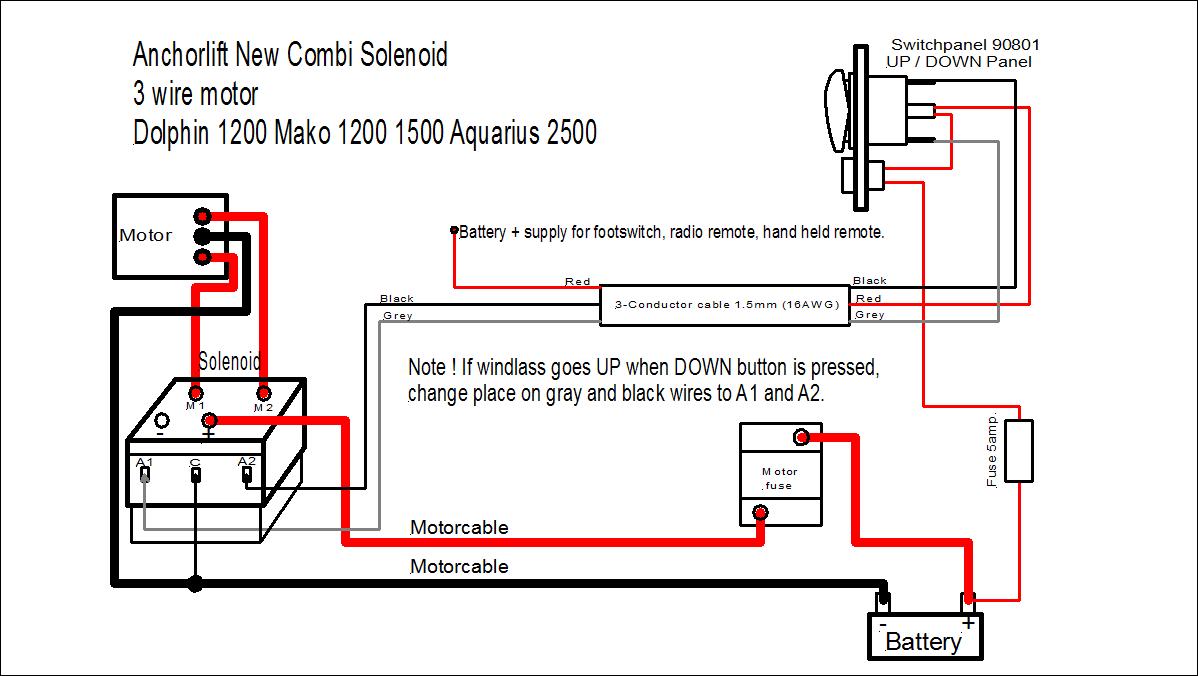

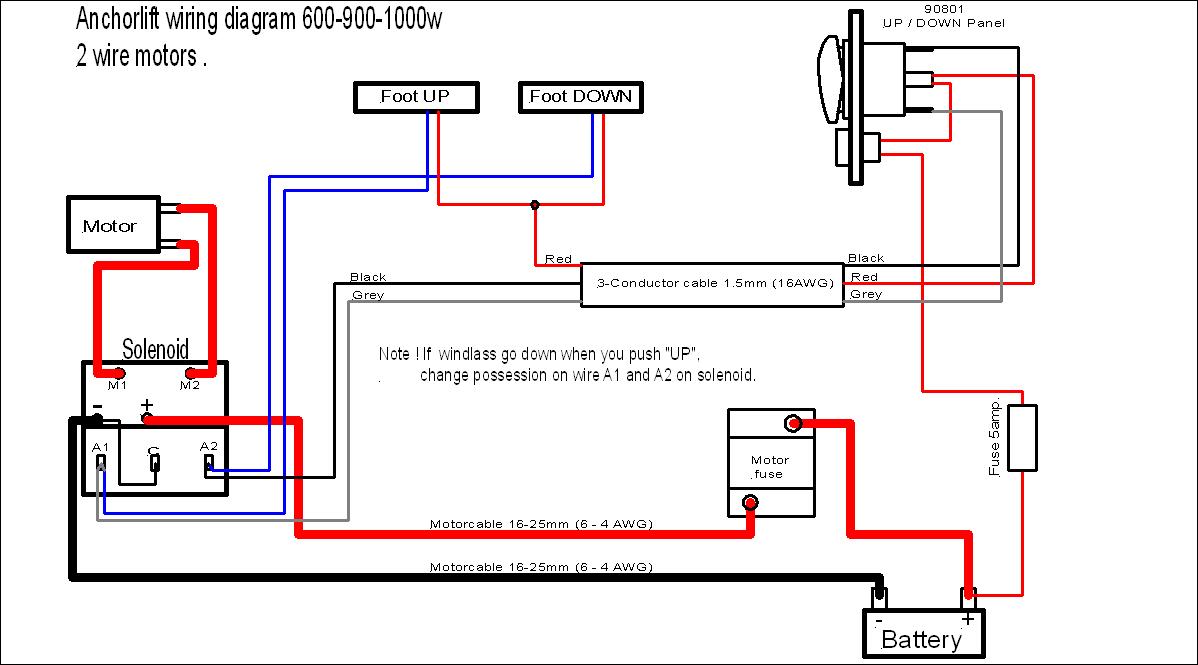

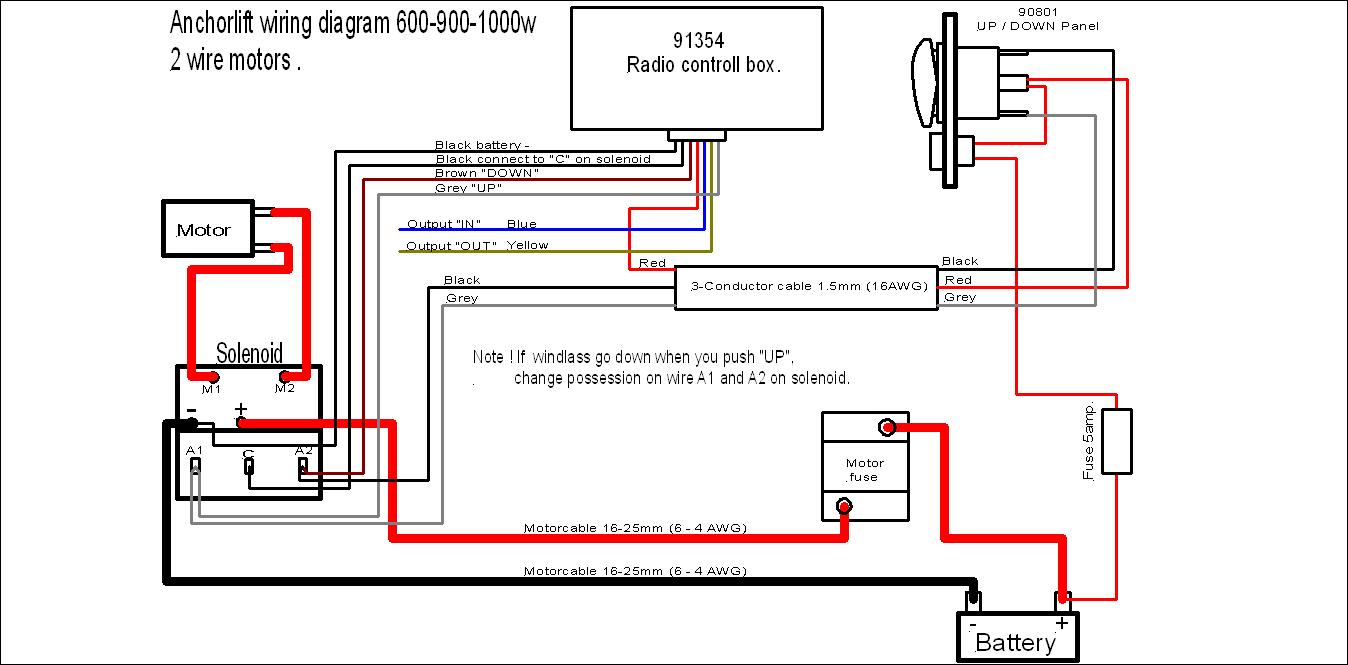

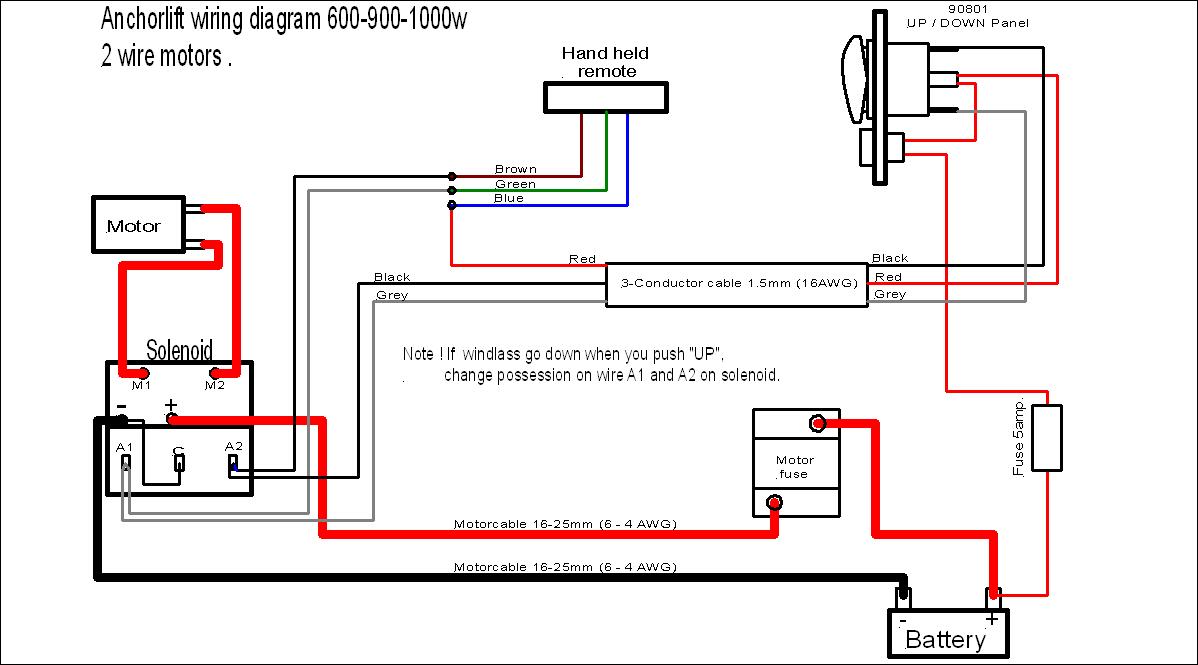

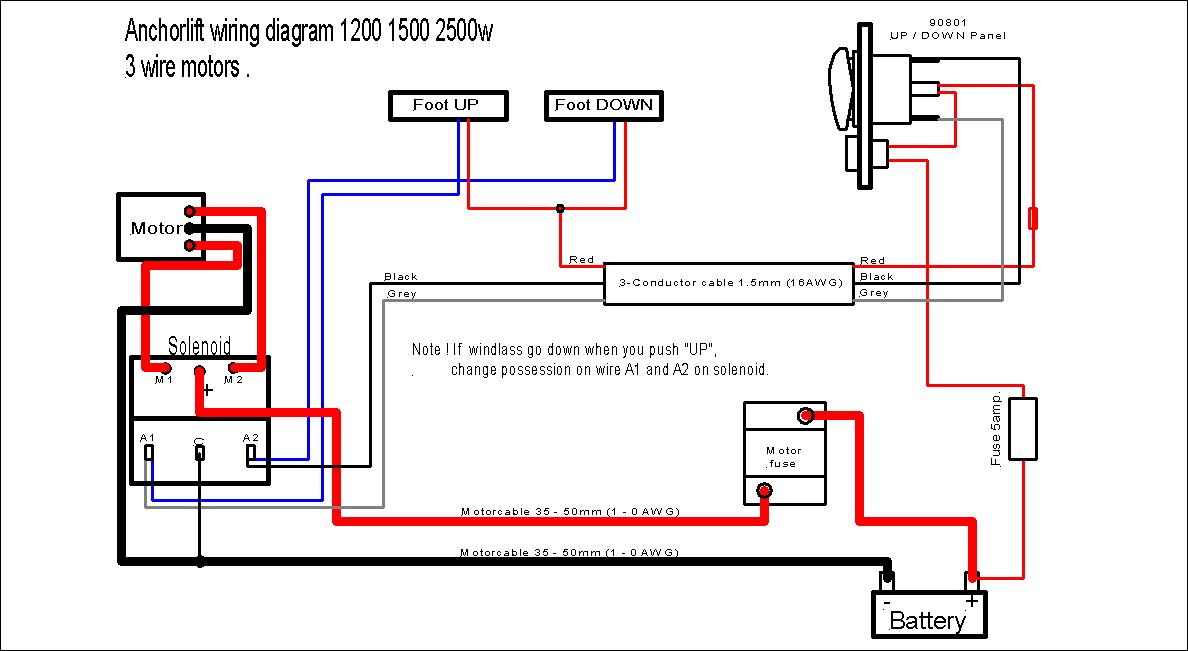

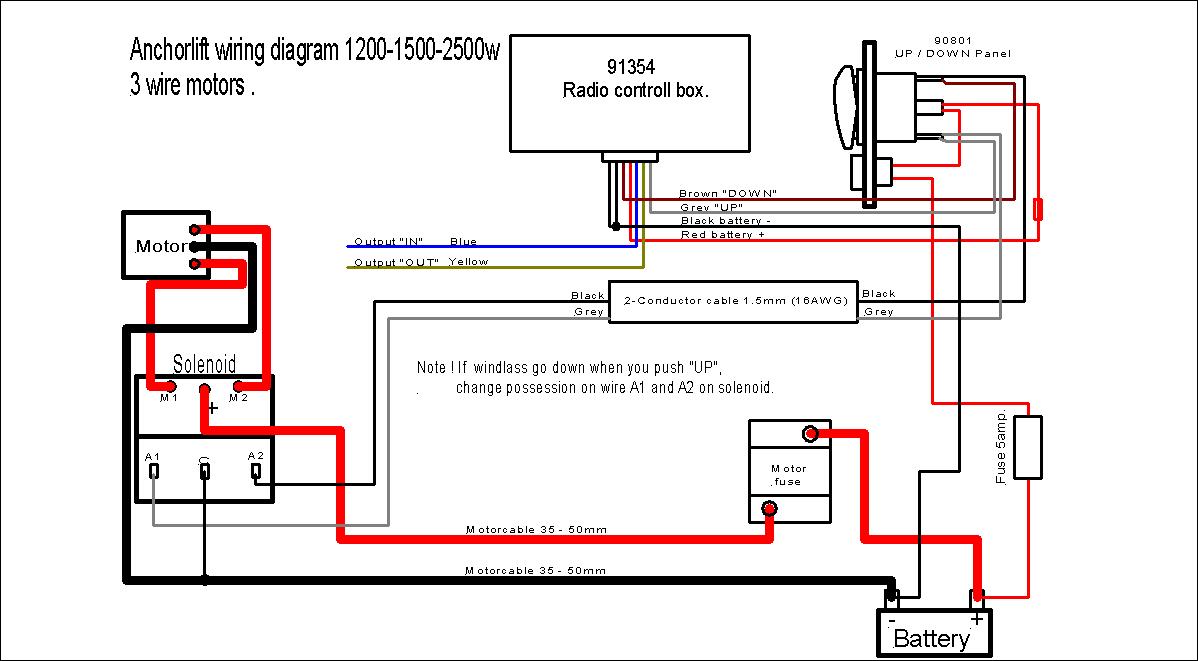

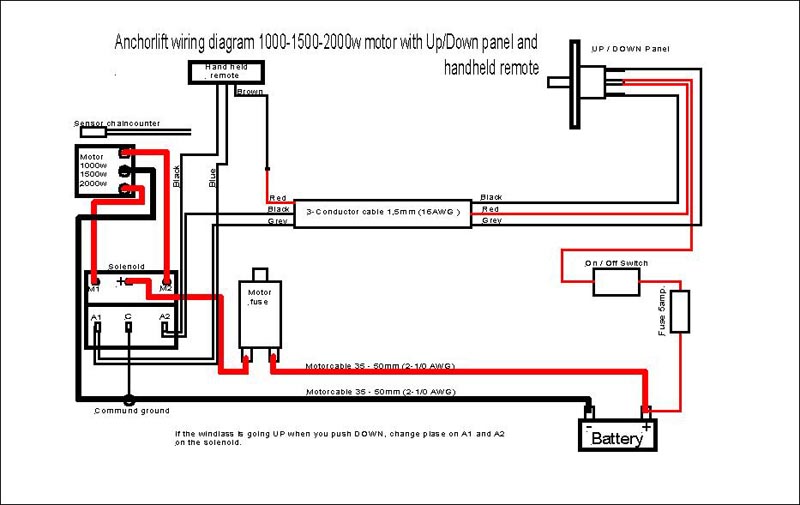

Electrical Installation Diagrams



Windlass System Troubleshooting - FAQ's

Q: Nothing happens when I use the Up & Down switches. What could be causing this?

A: It could be a shortage of power to the Up & Down switches.

Suggestion: Try flipping the on the On/Off switch. See if the fuse has blown.

Q: The solenoid clicks but the windlass will not go either way. What is the problem?

A: There is sufficient power to the solenoid, but not to the windlass.

Suggestion: Check the power supply for the windlass motor. See if the main fuse has blown. (This is not the same fuse for the motor and the solenoid. The main motor fuse is from 70 - 150 amps and the solenoid is 5 amps)

Q: The windlass works normally, but doesn't have enough power to haul the anchor. What could be causing this?

A: The windlass clutch is too loose.

Suggestion: Use the windlass handle to tighten the clutch.

Q: The windlass operates normally, but the chain does not come in. What is causing this?

A: The chain gets jammed on the windlass or underneath the windlass.

Suggestion: This is a common problem especially with new chains (with a lot of galvanizing on the chain). Bring the chain out and then in again. Another problem can be the storage room for the chain. If this is too small the chain can get jammed. If the chain gets stuck without you noticing, the main fuse might blow.

Q: My windlass seems weak and powerless, and the drop and haulage speed is slow. What causes this?

A: Your battery is week, remember we are dealing with a lot of power consumption.

Suggestion: The main fuse might blow under these circumstances. Remember to use the correct cable size for the motor.

Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
We apologize for any spelling mistakes and errors on our website.
