Switch Panels |
|
Switch panel with Up & Down function.
This panel is usually mounted near the steering position. |
|
|
|

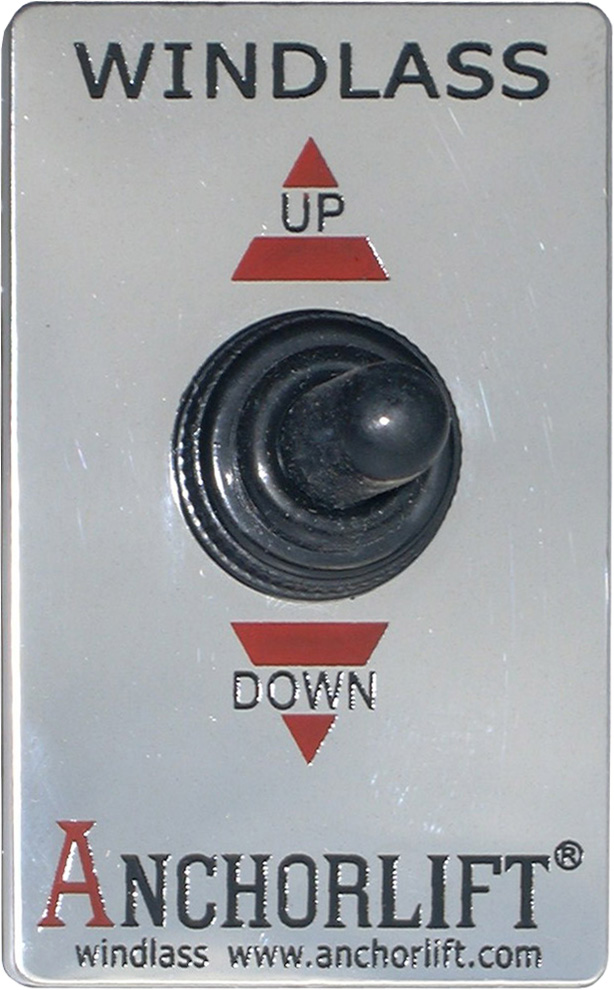

Toggle Switch Panel with
Stainless Steel Front |
|
Model Number |
Width |
Height |
Depth |
90800 |
50 mm / 1.96" |
87 mm / 3.42" |
28 mm / 1.1" |
|
|
|
|
|
|
|
Multi
function panels controlling windlass and bow-stern thrusters.
Works with all windlasses and bow-stern thrusters that are + or -
controlled. Panels are made in solid stainless steel
that are high gloss polished with LED illuminated switches, easy to see
in the dark. ON/OFF button always illuminate while
controll buttons illuminates when switched on. Excellent
finger tip feeling, for inside or outside mounting, IP67. |
|
|

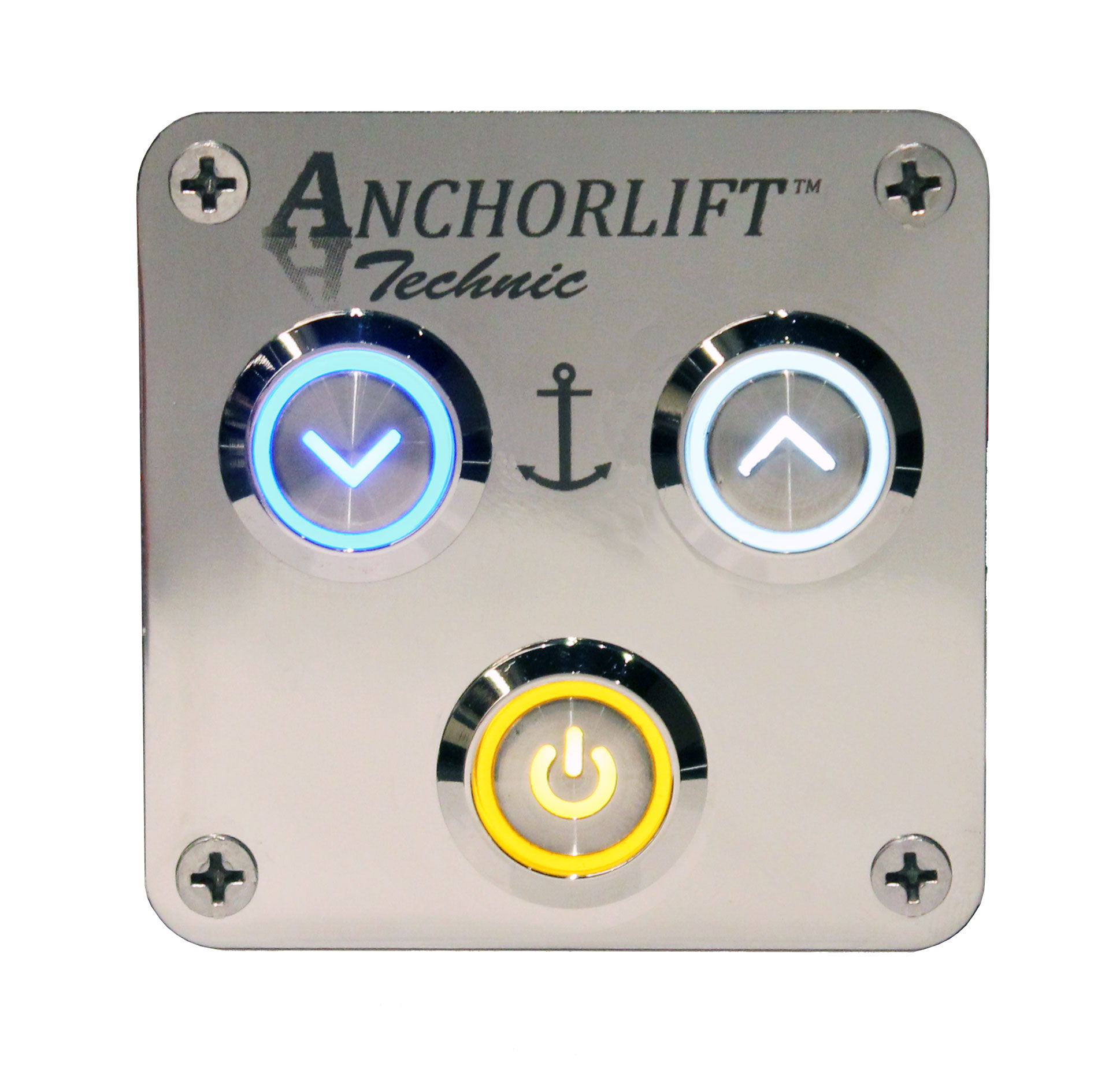

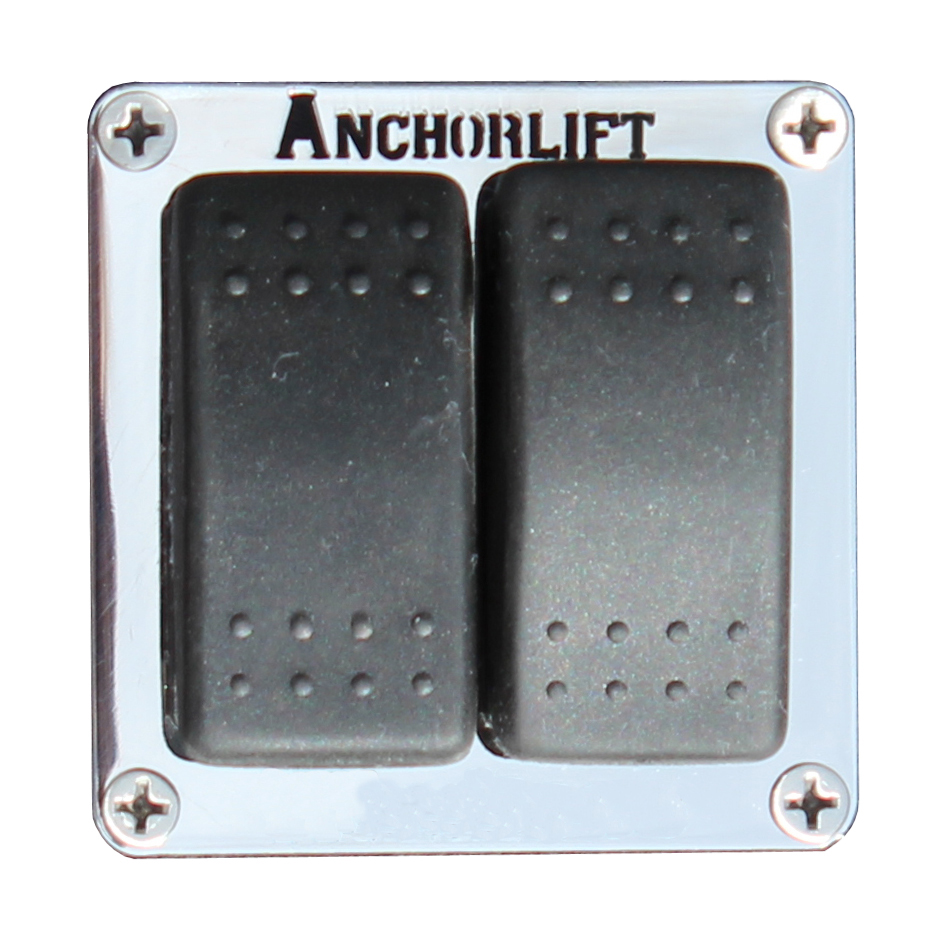

Windlass panel
w/ Safety On/Off
Switch.
|
|
Model Number |
Width |
Height |
Depth |
90803 |
64 mm / 2.5" |
64 mm / 2,5" |
50 mm / 2" |
|
|
|
|
|
|
|
|
Model Number |
Width |
Height |
Depth |
90802 |
64 mm / 2.5" |
64 mm / 2,5" |
50 mm / 2" |
|
|
|
Windlass + Bow
Thruster
w/ Safety On/Off
Switch.
|
|
Model Number |
Width |
Height |
Depth |
90805 |
64 mm / 2.5" |
92 mm / 3,6" |
50 mm / 2" |
|
|
|
|
|
|
|
Bow
Thruster + Stern
Thruster
w/ Safety On/Off
Switch.
|
|
Model Number |
Width |
Height |
Depth |

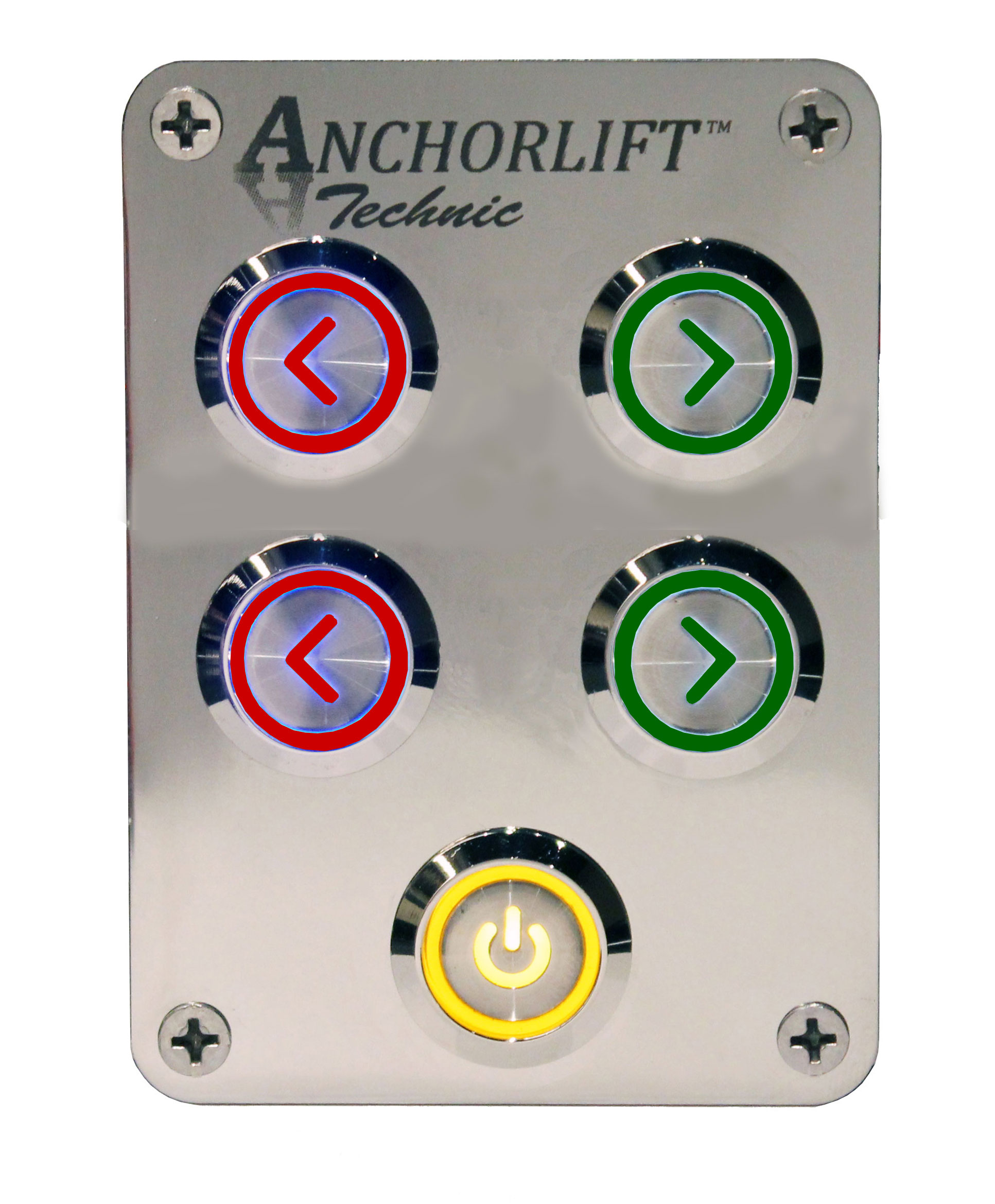

90804 |
64 mm / 2.5" |
92 mm / 3,6" |
50 mm / 2" |
|
|
|
|
|
|
|
Windlass + Bow
Thruster + Stern
Thruster
w/ Safety On/Off
Switch.
|
|
Model Number |
Width |
Height |
Depth |
90807 |
64 mm / 2.5" |
121 mm / 4,75" |
50 mm / 2" |
|
|
|
|
|
|
|
Windlass + Bow
Thruster + Stern
Thruster +
Windlass
w/ Safety On/Off
Switch.
|
|
Model Number |
Width |
Height |
Depth |

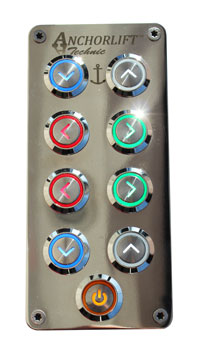

90806 |
64 mm / 2.5" |
149 mm / 5,9 |
50 mm / 2" |
|
|
|
|
|
|
|
|
|
|

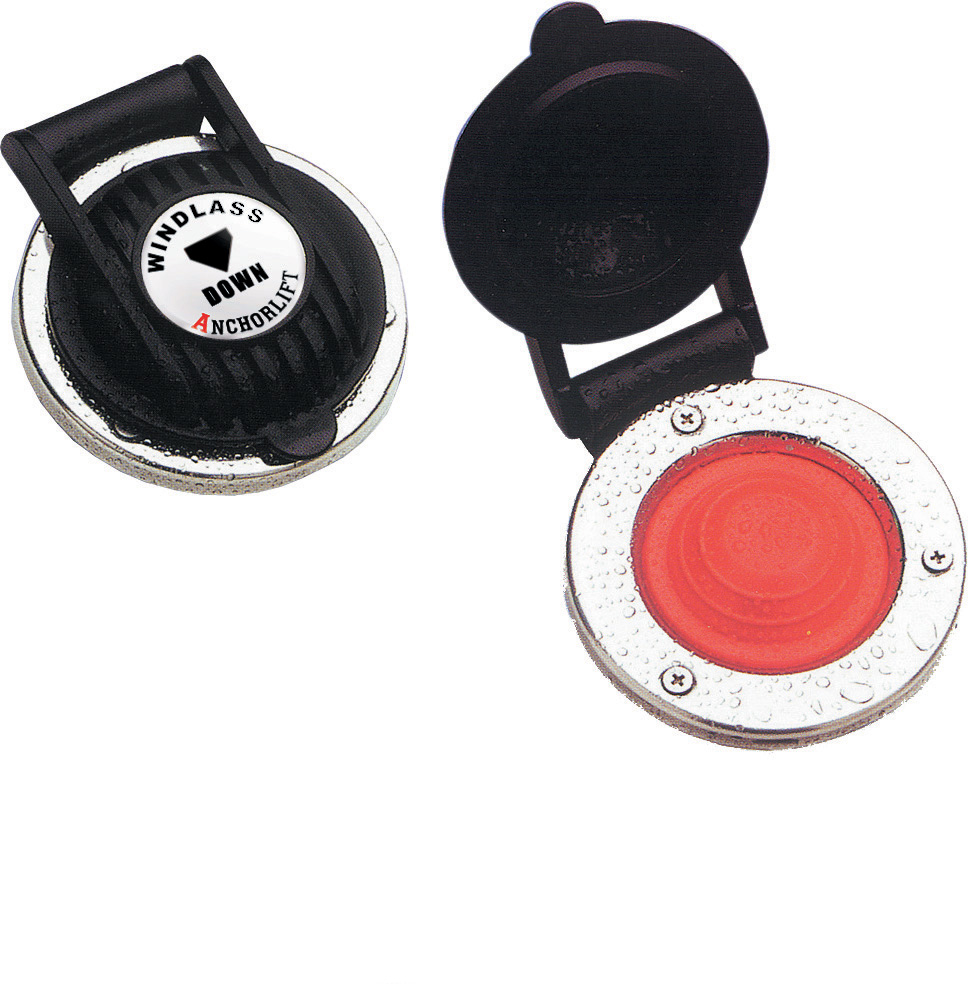

Foot Switches |
|
UP & DOWN switch with a safety cover to prevent
accidental push button operation. Usually mounted
on deck near the anchor windlass.
Available with black or white cover. Sold in pair |
|
|
|
Model Number |
Description |
90900B |
UP - DOWN with black cover |
|
|
|
|
|
|

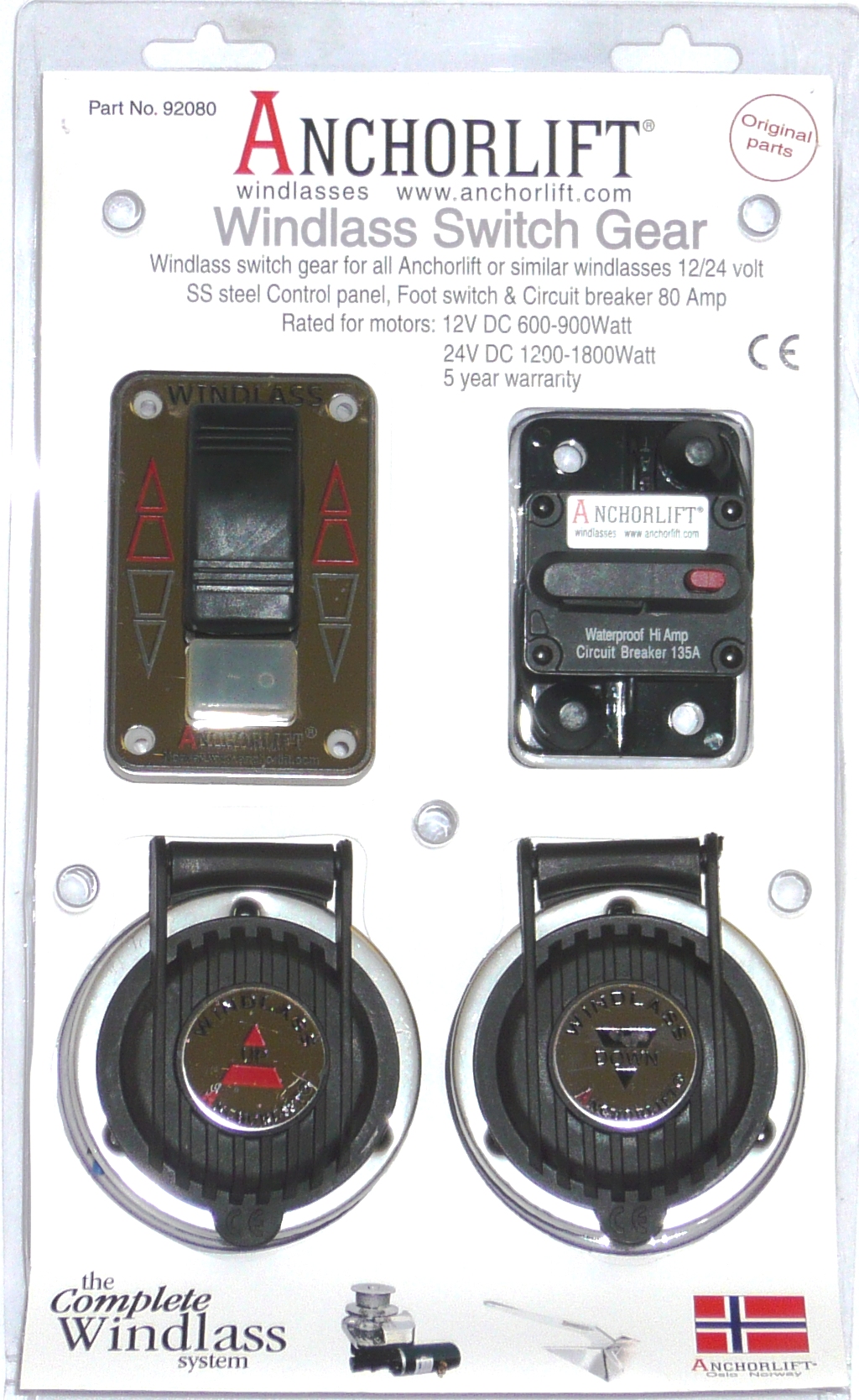

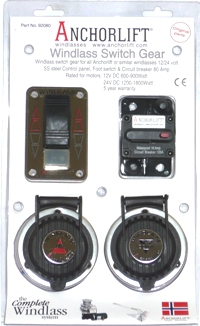

Switch Kit Combo
|
|
Combo switchpack. Include 90801 Rocker switch panel, 90060 to 90175 Circuit breaker, 90900B Foot switches. |
|
|
|
Model Number
|
Fuse Size
|
92060
|
60 Amp. Stingray 600
|
92080
|
80 Amp. Stingray 900 Barracuda 600 Mako 1200 24v
|
92100
|
100 Amp. Barracuda 900 Dolphin 1000 Mako 1500 24v
|
92135
|
135 Amp. Mako 1200-1500
|
92175
|
175 Amp. Aquarius 2500
|
|
|

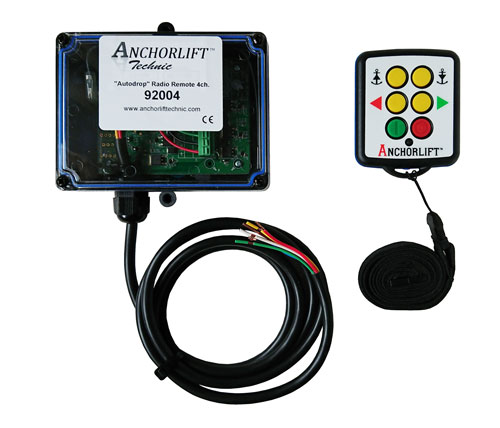

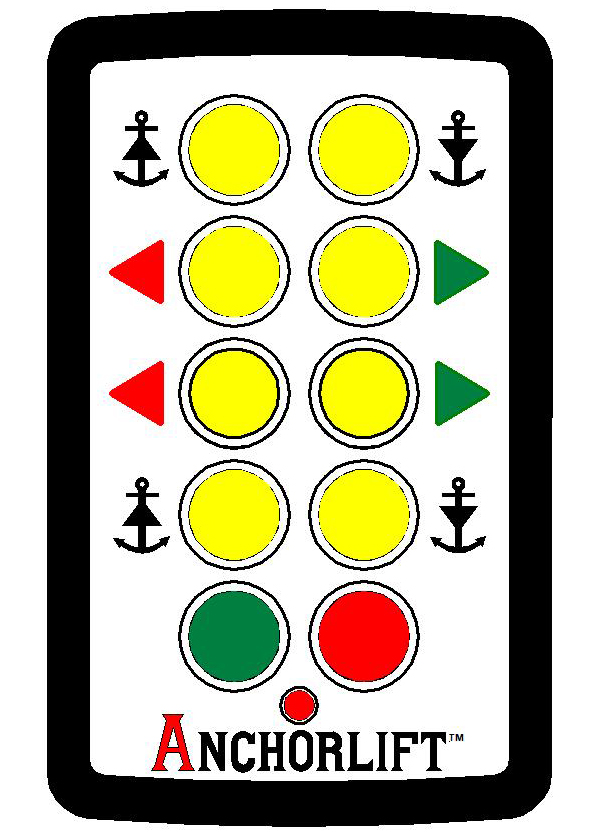

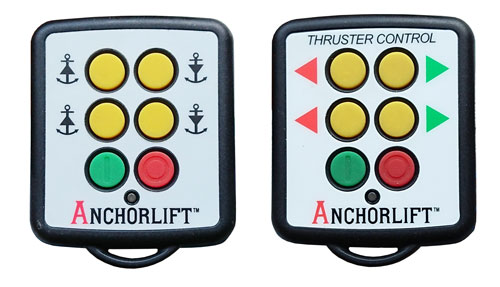

Autodrop Wireless Remote Controls
IP67
|
|
With a radio control installed you will have full control of windlass operation wherever you are on board.
The control consists of a transmitter and
holder and a receiver with cable. With the Autodrop™ function your Highspeed Anchorlift windlass feels like a free fall windlass but with full control.
The windlass will run automatically for 40 seconds ( approx 25m / 80ft ) before stopping.
To enable the Autodrop™ just press the DOWN button on your transmitter.
To stop the Autodrop™ at any time, press DOWN once on the receiver. When stopped you have immediately full grip on your chain and rope that are not the case with other free fall windlass. that must run up for some time before you have grip on your chain and rope.
92004: 4 Channel output 12 / 24v operate your windlass and bowthruster.
92008: 8 Channel output 12 / 24v operate two
windlasses and two thrusters, bow and stern.
93004: 4 Channel output 12 / 24v operate two
windlasses with AutoDrop function.
94004: 4 Channel output 12 / 24v operate two thrusters, bow
and stern.
|
|
|
|
Model Number |
Description |
92004 |
4 channel - 12/24 v
1 x Windlass Autodrop 1 x Thruster |
92008 |
8 channel -
12/24v 2 x windlass Autodrop 2 x thruster |
|
|
|
92004 Usermanual Wiring |
|
|
92008 |
|
|

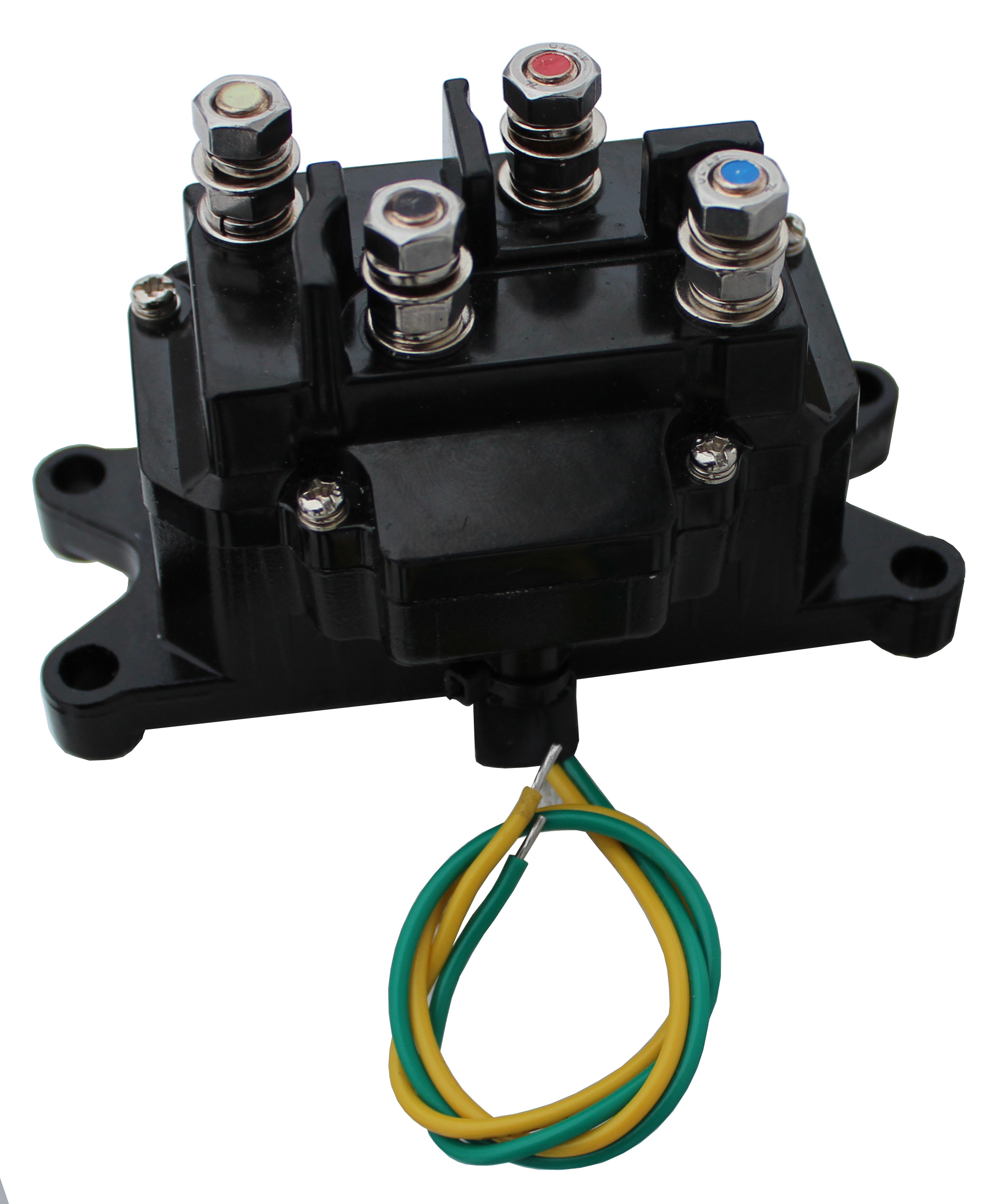

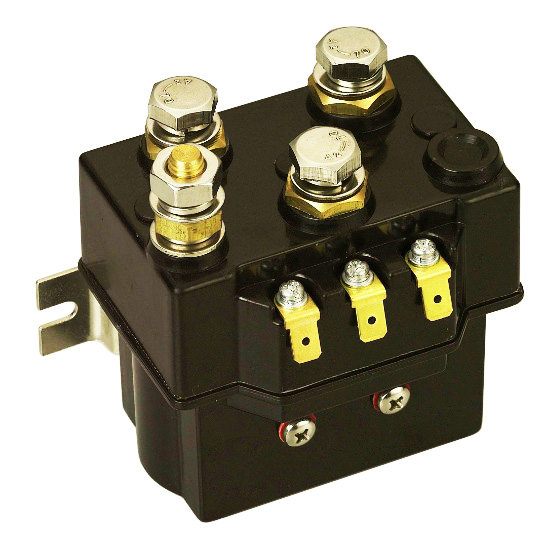

Regular & Reverse Solenoids |
|
Operates anchor windlass system from 400 to 5000 watts
12 & 24 volts. The solenoids are reliable
and compact in size. The external connections on the solenoids
make them very easy to install. |
|
|
|
Model Number |
Type |
Max Motor |
Supply V |
90501 |
Regular / Reverse |
3000 watt 400amp |
12 volts |
90503 |
Reverse |
2000 watt 200 amp |
12 volts |
90504 |
Regular / Reverse |
5000 watt 400 amp
|
24 volts |
|
|
|
|
|

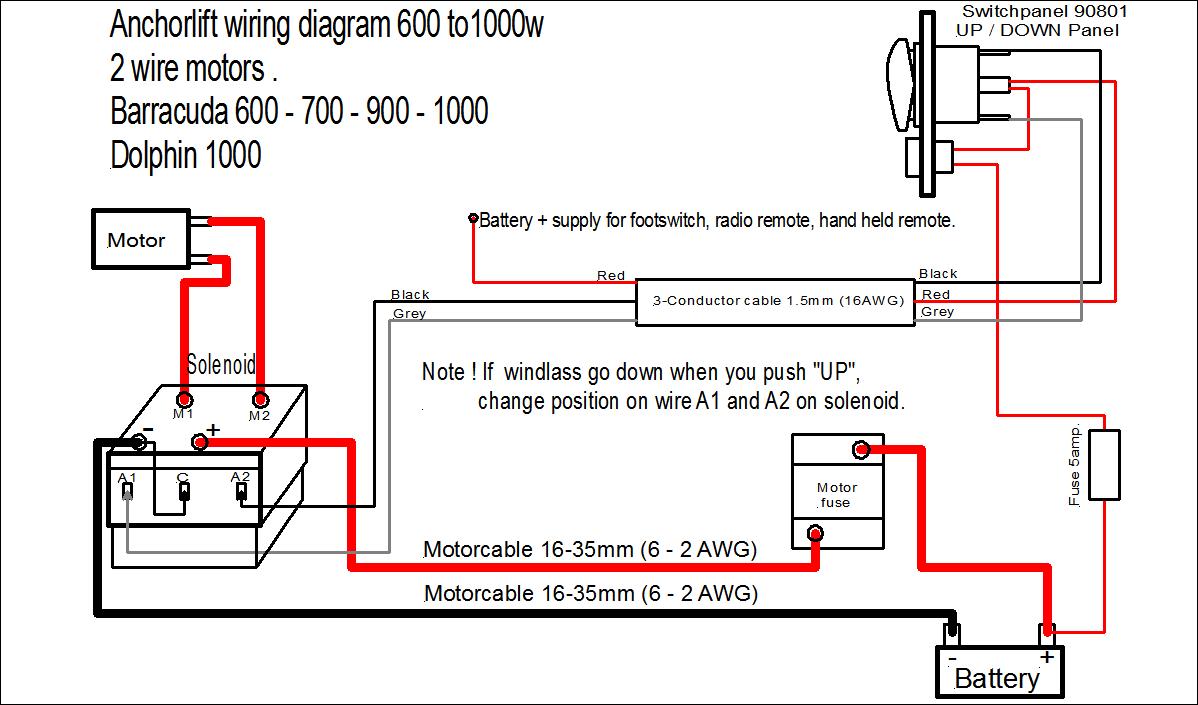

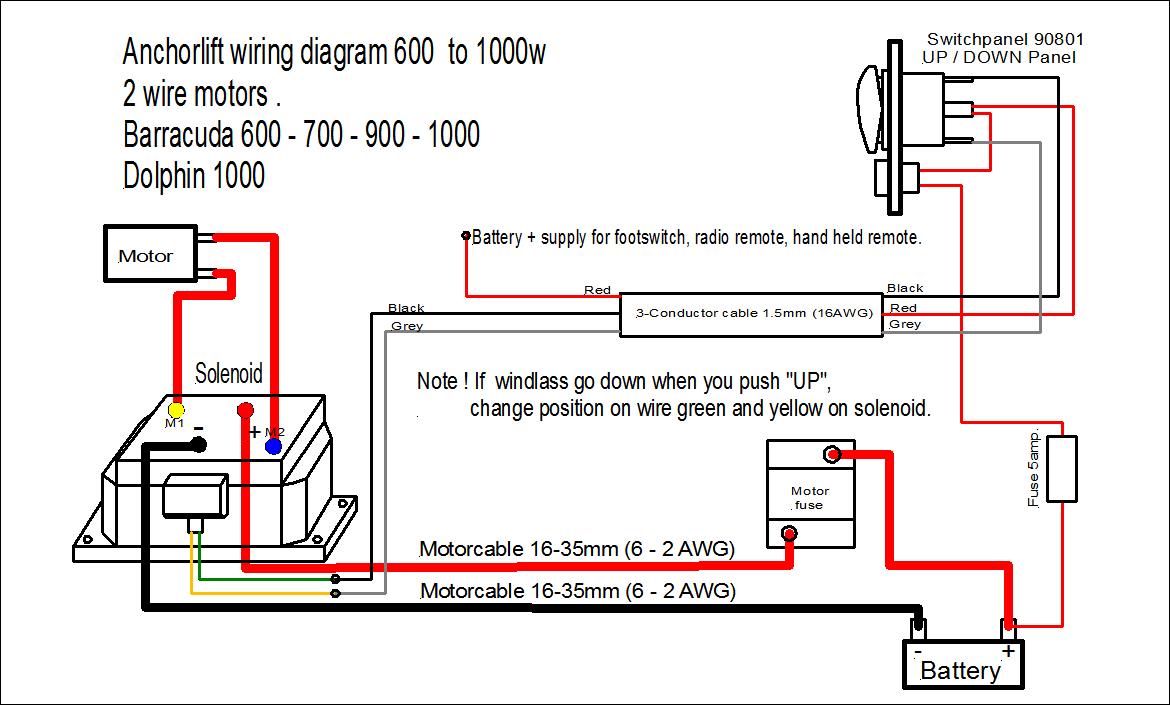

90501 12v / 90504 24v |
90503 |
|
|

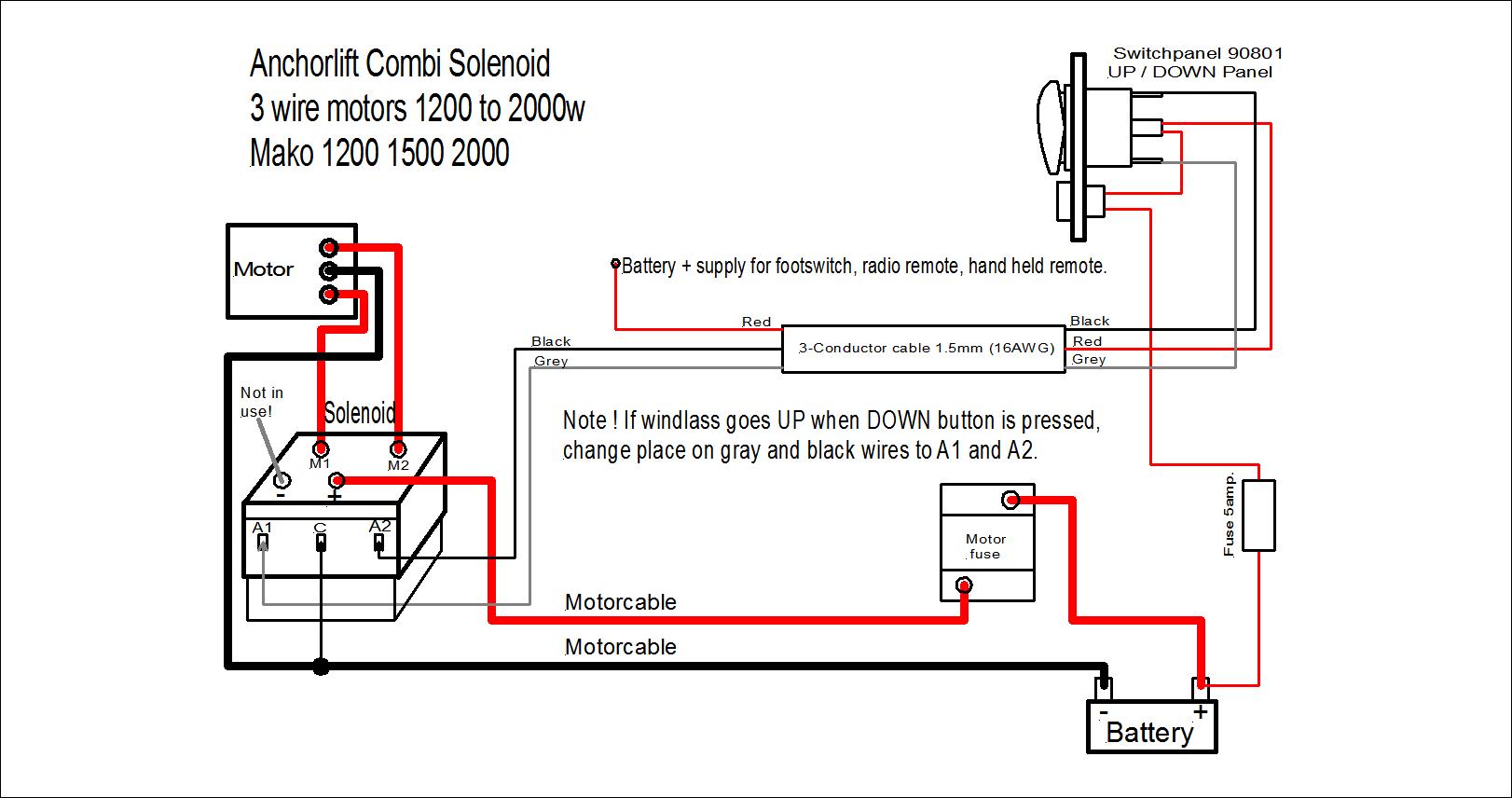

Wiring 2 wire motor |

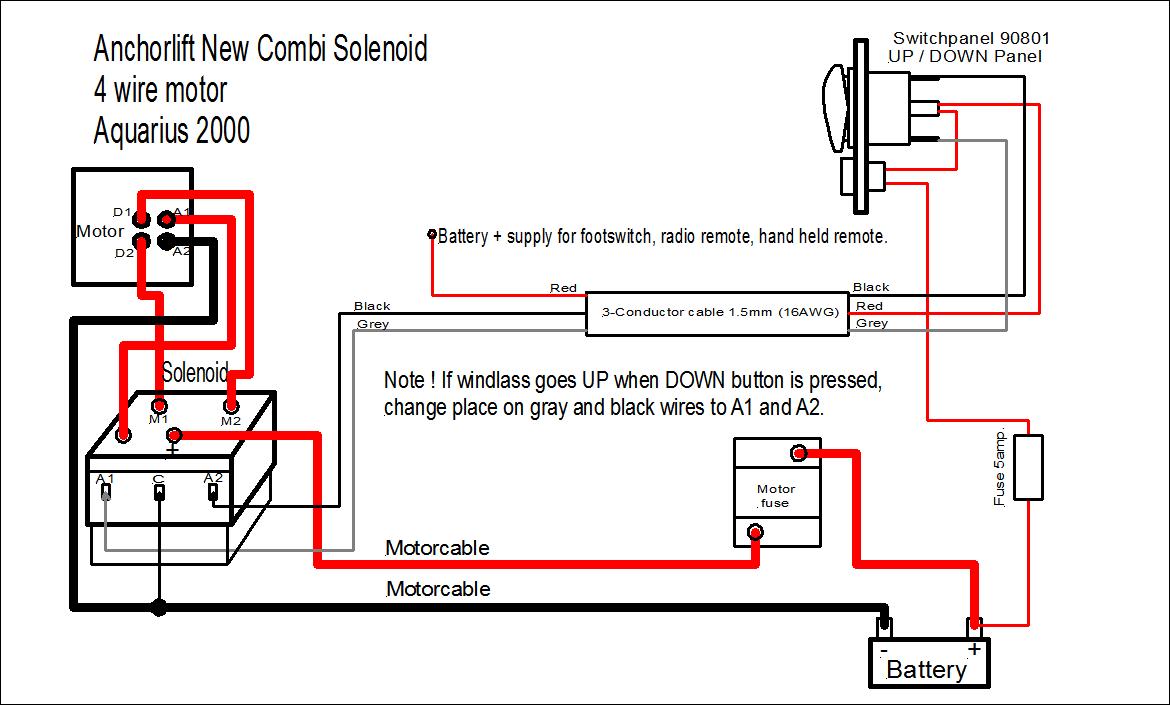

Wiring 3 wire motor |
Wiring 2 wire motor |
Wiring 4 wire motor |
|

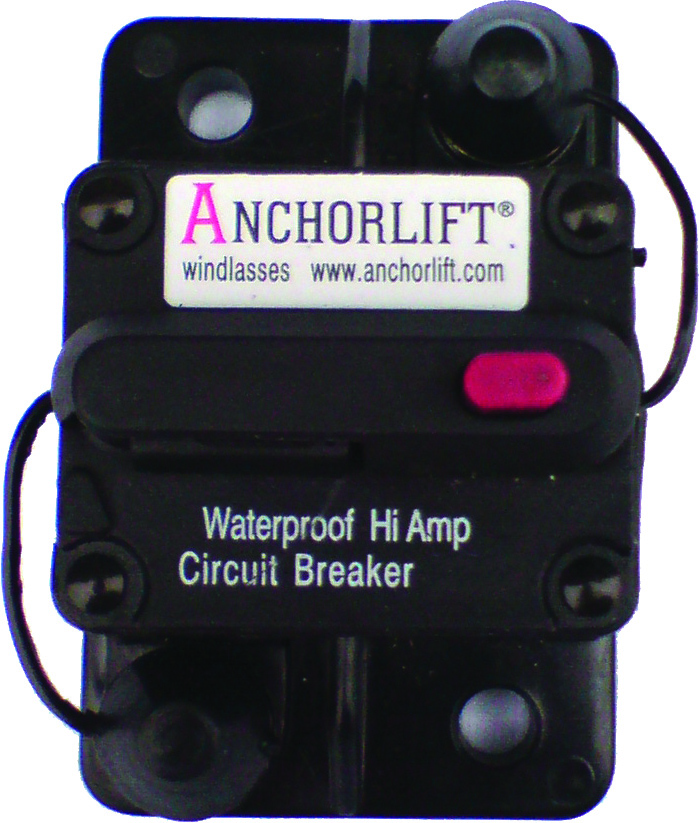

Thermal Circuit Breaker
|
|
Water and vapor proof automatic windlass fuses. Combines switching and circuit breaking into one unit. |
|
|
|
Model Number |
Fuse Size |
90060 |
60 Amp. Stingray 600
|
90080 |
80 Amp. Stingray 900 Barracuda 600
Mako 1200 24v
|
90100 |
100 Amp. Barracuda 900 Dolphin 1000
Mako 1500 24v
|
90135 |
135 Amp. Mako 1200-1500
|
90175 |
175 Amp. Aquarius 2500
|
|
|
|
|
|
|
|
|
|
