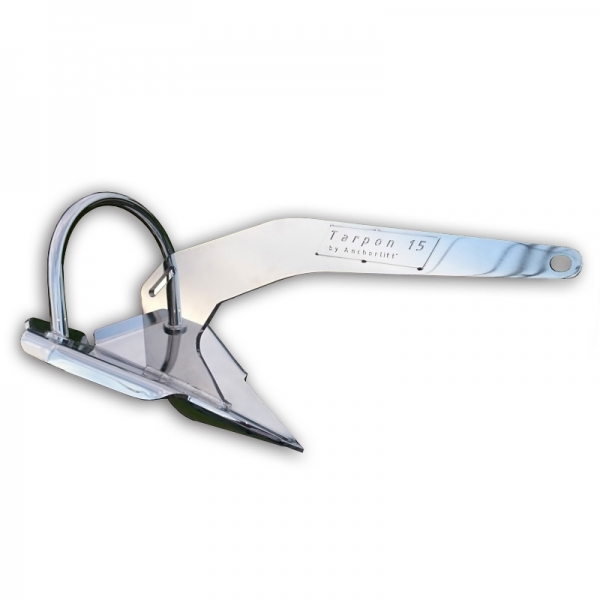

  TPX™ anchors
   Anchorlift TPX™ anchors are exceptionally effective in a variety of sea beds. Work very well with Anchorlift bow rollers, which give you a self launching system.
   Release the anchor without the need to leave the controls. Remains stable in various tidal conditions.
   Available in high polished stainless steel AISI 316L made from steel plates not by casting for maximun strenght and corrision protection.
   Sizes from 7 kg to 128 kgs. According to our testing, the TPX™ anchors holds up to 60% more weight than our competitor's counterpart,
   the Bruce anchor. TPX™ comes with an removable rollbar, ideal for bow sprit and bow plank mounting.  European made.

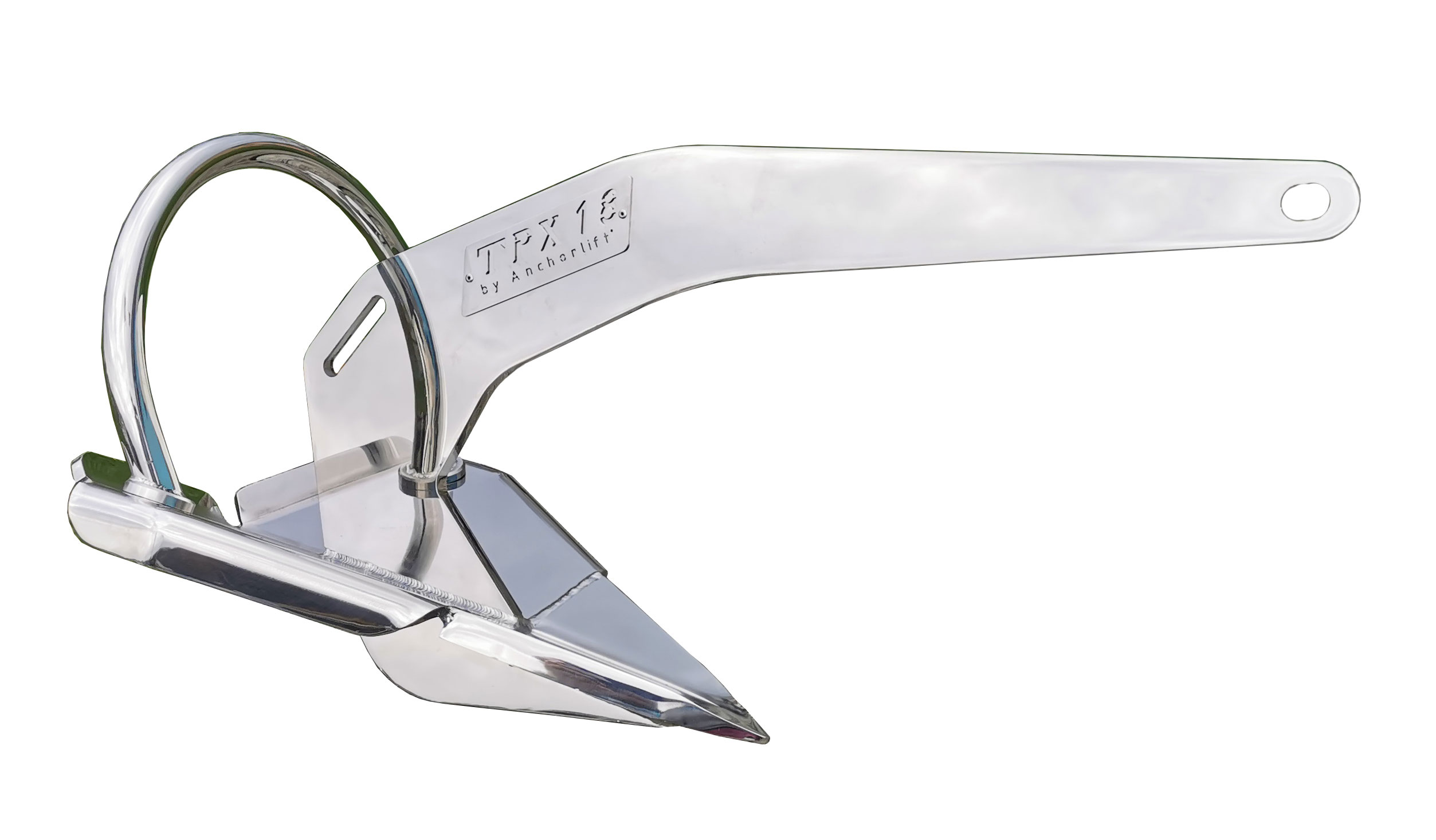

TPX18RB
Stainless Steel Models Weight Boat Size
TPX 7 7 kgs up to 28 feet
TPX 9 9 kgs up to 33 feet
TPX 12 12 kgs up to 40 feet
TPX 18 18 kgs up to 48 feet
TPX 23 23 kgs up to 56 feet
TPX 28 28 kgs up to 62 feet
TPX 33 33 kgs up to 65 feet
TPX 44 44 kgs / up to 70 feet
TPX 55 55 kgs up to 80 feet
TPX65 65 kgs up to 85 feet
TPX 86 86 kgs up to 90 feet
TPX 128 128 kgs up to 100 feet





  Test Shark Anchor vs Bruce type anchor

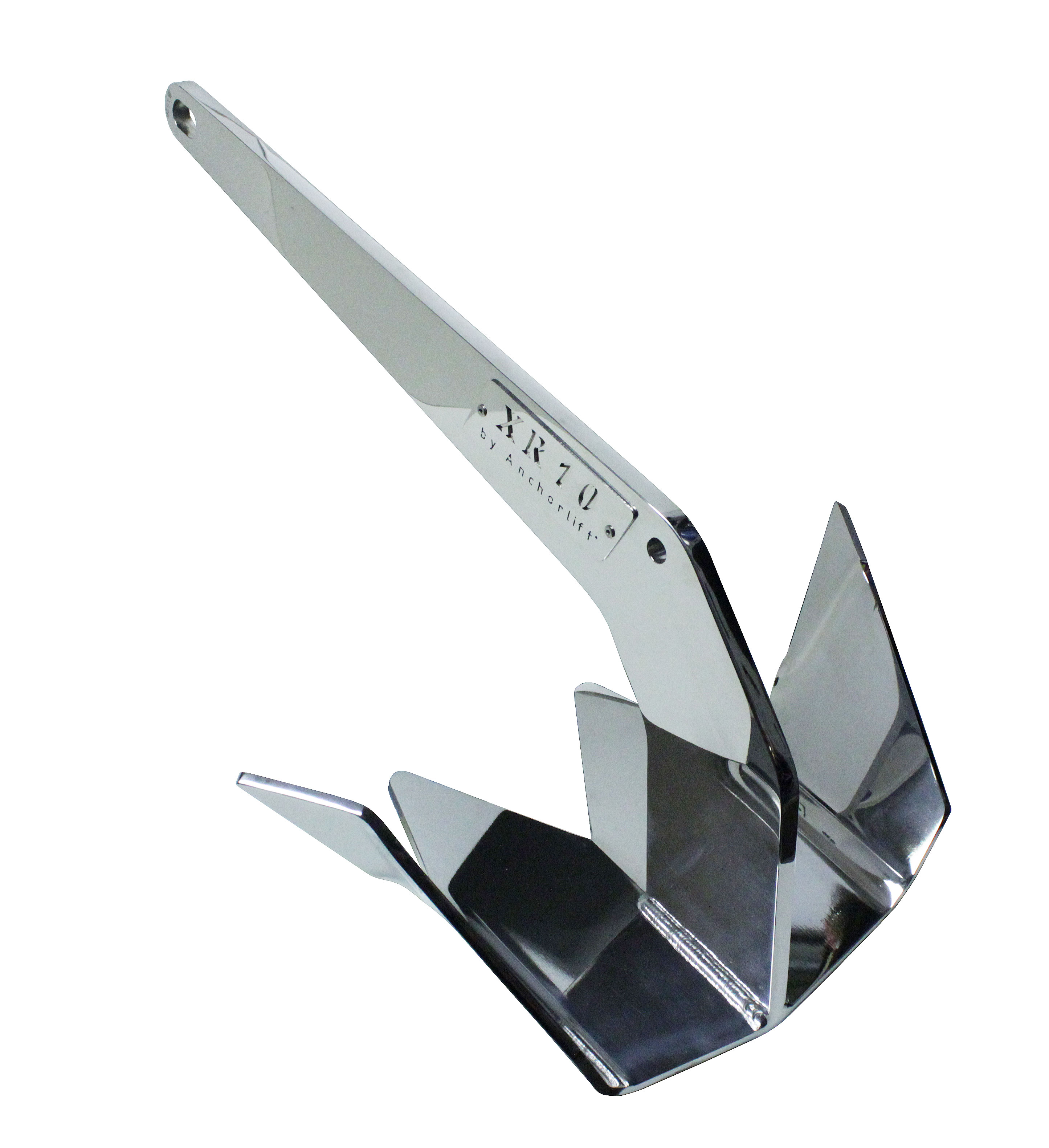

  XR anchors     Higher holding power, Less weight

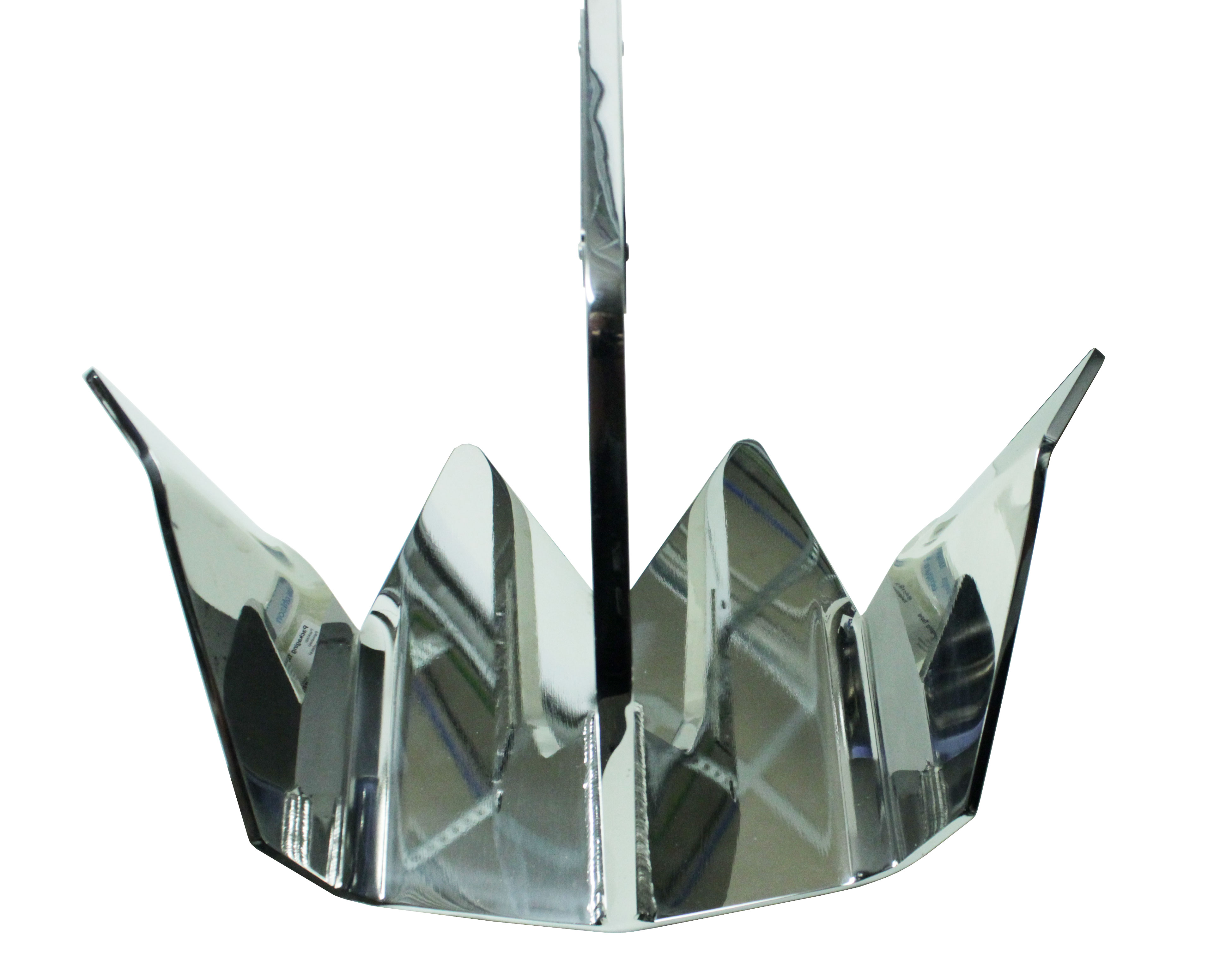

   Anchorlift new XR anchor is specifically designed to get the anchor parked so close to the bow as possible.
   The special design of anchor wing allows the anchor not beating in the bow when parked in roller.
   Anchor arm also has its function in that the anchor goes out and clear of the bow before it goes down.
   Low weight has also been important without it having gone out of the anchor's holding power,
   as this is intended to be used on sport fishing boats and other boats which will have as little
   weight in the bow as possible. Anchorlift XR anchor is made of the same physical sizes as the famous Bruce
   anchor, but the weight is only about 60% compared with the Bruce anchor.

Anchorlift XR anchor is made of Aisi 316L high polish stainless steel. European made.





Black Edition

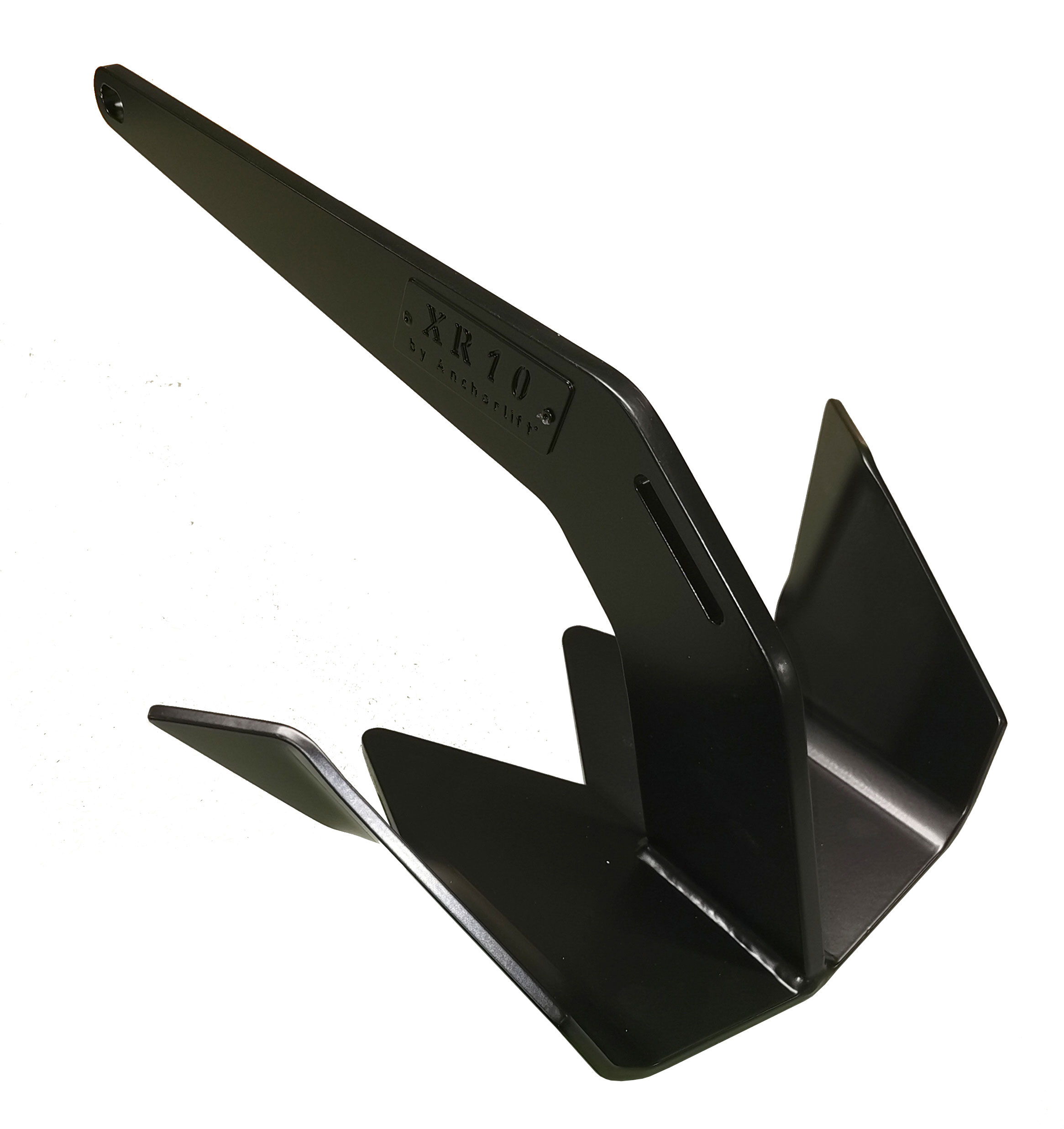

                 XR Black Edition

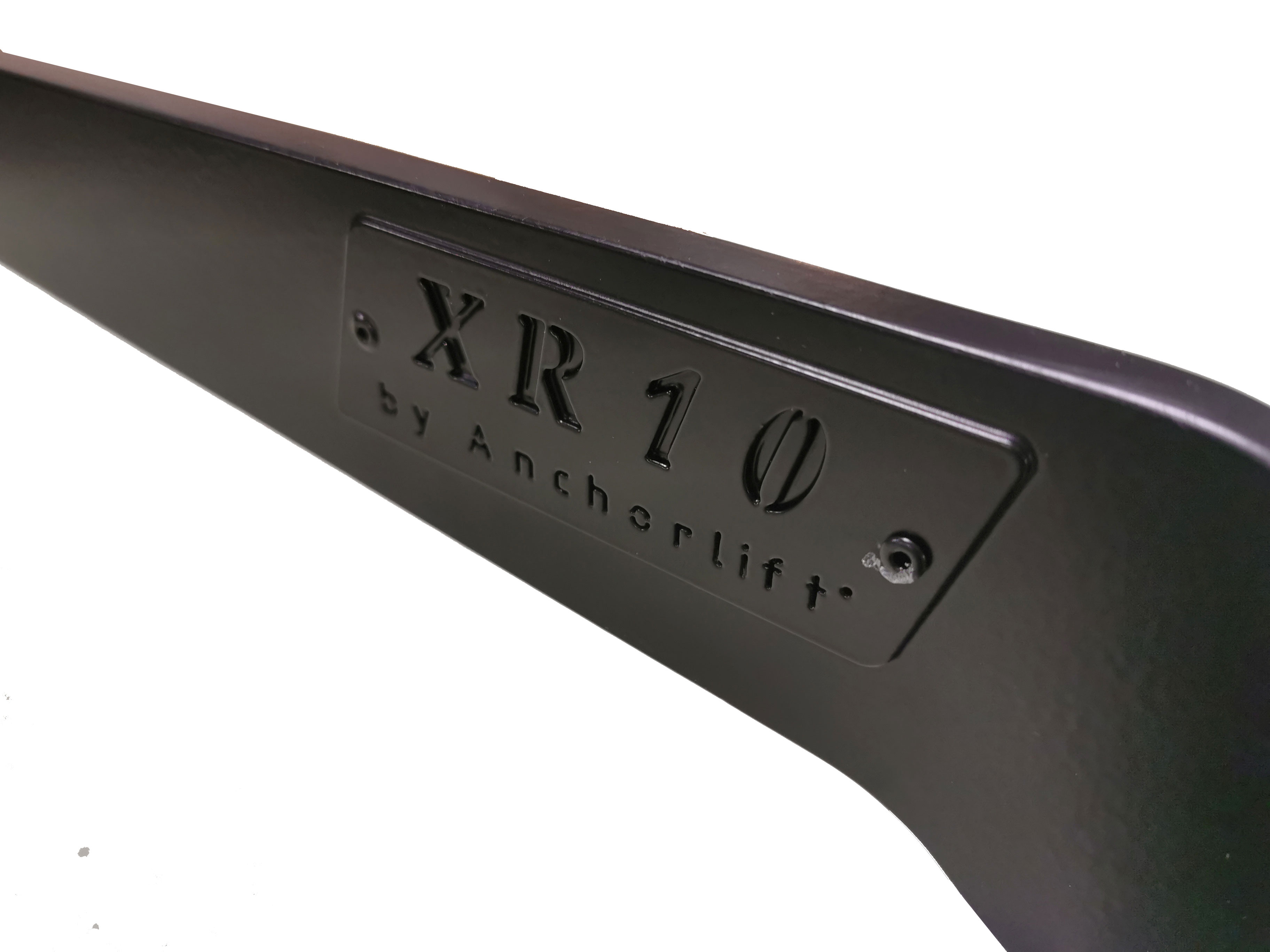

                                                      XR Black edition logo
XR Stainless
Steel Models
Bruce / Claw
Compareble
XR  Weight Blade Area Boat Size
XR6 5kg / 11lbs

4,3 kgs / 9,5 lbs

455 sq cm up to 22 feet

XR8

7,5kg / 16,5lbs 5,2 kgs / 11,5 lbs 552 sq cm up to 28 feet
XR10     10kg / 22lbs 7,4 kgs /  16,3 lbs 670 sq cm up to 35 feet
XR12 12kg / 25lbs 9 kgs / 19,8 lbs 760 sq cm up to 37 feet
XR15     15kg / 33lbs 10,5 kgs / 23 lbs 855 sq cm up to 40 feet
XR20    20kg / 44lbs 14 kgs /  30,8 lbs 993 sq cm up to 50 feet
XR25 25kg / 55lbs 20 kgs / 44lbs 1150 sq cm up to 55 feet
XR30     30kg / 66lbs 23,5 kgs / 52 lbs 1292 sq cm up to 60 feet
XR40  40kg / 88lbs  31kg / 68lbs  1508 sq cm up to 65 feet

XR50

50kg / 110lbs 32 kgs / 70,5 lbs 1745 sq cm up to 75 feet

XR80

80kg / 176lbs 52 kgs /114,5 lbs 2252 sq cm up to 90 feet

XR120

120kg / 264lbs 90 kgs /198 lbs 3004 sq cm up to 110 feet
XR140 120kg / 264lbs 125 kgs / 275lbs 3350 sq cm up to 120 feet

XR Size Diagram

   XR Anchor test / product sheet.       XR anchor vs Bruce anchor

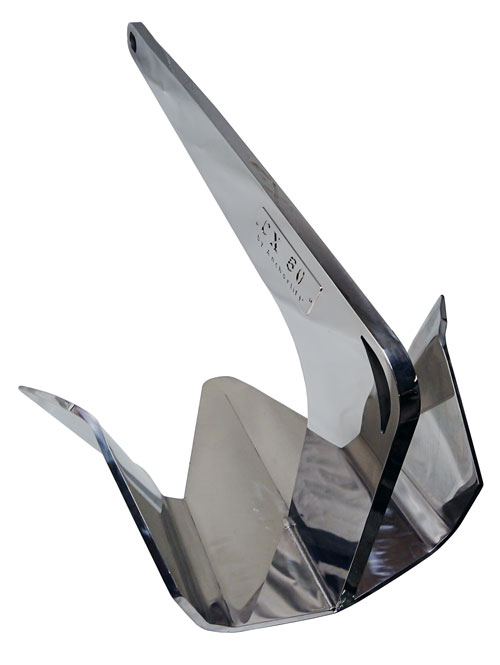

  Claw X (CX) anchors    Higher holding power, Less weight

   Our NEW Claw X anchor is based on the famous Bruce anchor, which was originally made for oil riggs in the North Sea.
   Sets fast and secure to almost any bottom conditions. Made in one piece. Available in stainless steel AISI 316L.
   CX anchor are not casted but made of stainless steel 316L plates for best corrosion protection and strenght.
   Wing size is 25% larger on CX anchors than on the corresponding Bruce size for best possible holding power. European made.


CX Stainless Steel Models Bruce / Claw
Compareble
 CX  Weight Blade Area Boat Size
CX6 5kg / 11lbs 4,4kgs / 9,7 lbs 408cm2 / 63in2 up to 22 feet

CX8

7,5kg / 16,5lbs 5,2 kgs / 11,5 lbs 483cm2 / 75in2 up to 28 feet
CX10 10kg / 22lbs 7,6 kgs / 16,7 lbs 657cm2 / 102in2 up to 35 feet
CX15 15kg / 33lbs 12 kgs / 33 lbs 858cm2 / 133in2 up to 40 feet
CX20 20kg / 44lbs 17 kgs / 37,4 lbs 1086cm2 / 168in2 up to 50 feet
CX30 30kg / 66lbs 21 kgs / 41,8 lbs 1317cm2 / 204in2 up to 60 feet
CX40 30kg / 66lbs 31 kgs / 68,2 lbs 1542cm2 / 239in2 up to 65 feet

CX50

50kg / 110lbs 40kgs / 88 lbs 1681cm2 / 261in2 up to 75 feet
CX80 80kg / 176lbs 53kg /  117 lbs 2185cm2 / 339in2 up to 90f feet
CX120 120kg / 264lbs 80kg / 176lbs 2185cm2 / 339in2 up to 100f feet

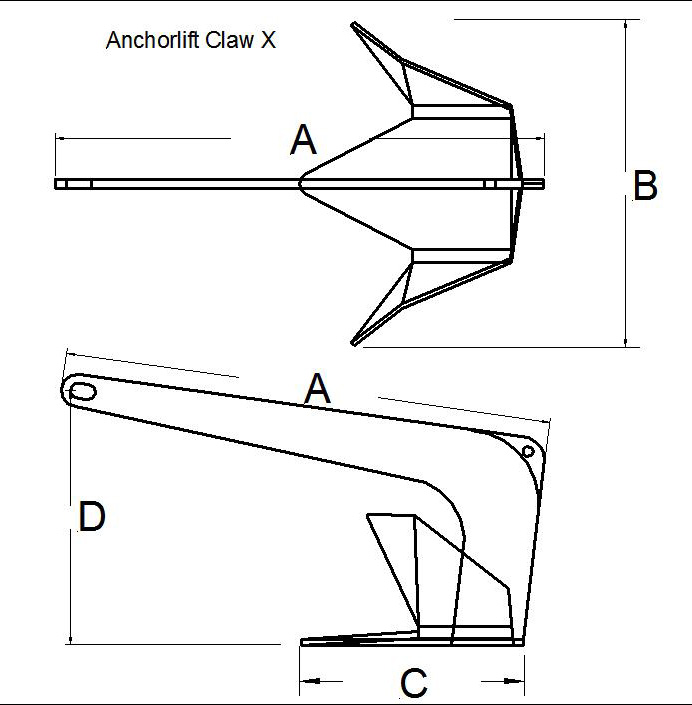

Click on picture for measure



       CX Anchor test / product sheet.

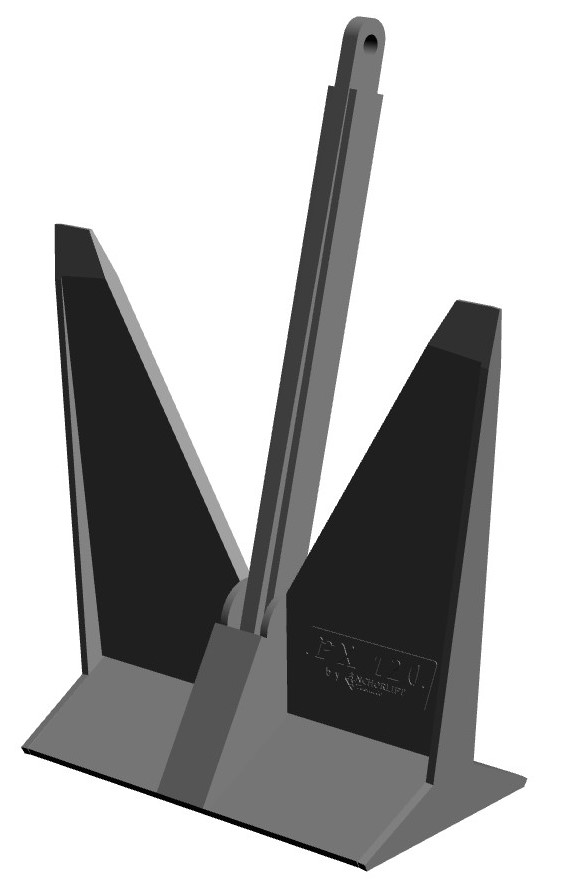

      PX anchors     Higher holding power, Less weight
   PX anchor is based on the famous HHP type anchors.
   Sets fast and secure to almost any bottom conditions. Available in stainless steel AISI 316L.
   PX anchor are not casted but made of stainless steel 316L plates for best corrosion protection and strenght.
   European made.
                   px
PX Stainless Steel Models  CX  Weight Blade Area Boat Size
PX50 42k/ 93lbs 3145cm2 up to 70 feet
PX60 56kg / 123lbs 3450cm2 Up to 80 feet

PX80

72 kg /158lbs 3700cm2 up to 90 feet
PX100 90kg /198lbs 4110cm2 up to 100 feet
PX120 108kg / 238lbs 4574cm2 up to 120 feet
PX140 126 kg /277lbs 5035cm2 up to 130 feet
PX160 145kg / 319lbs 5540cm2 up to 140 feet

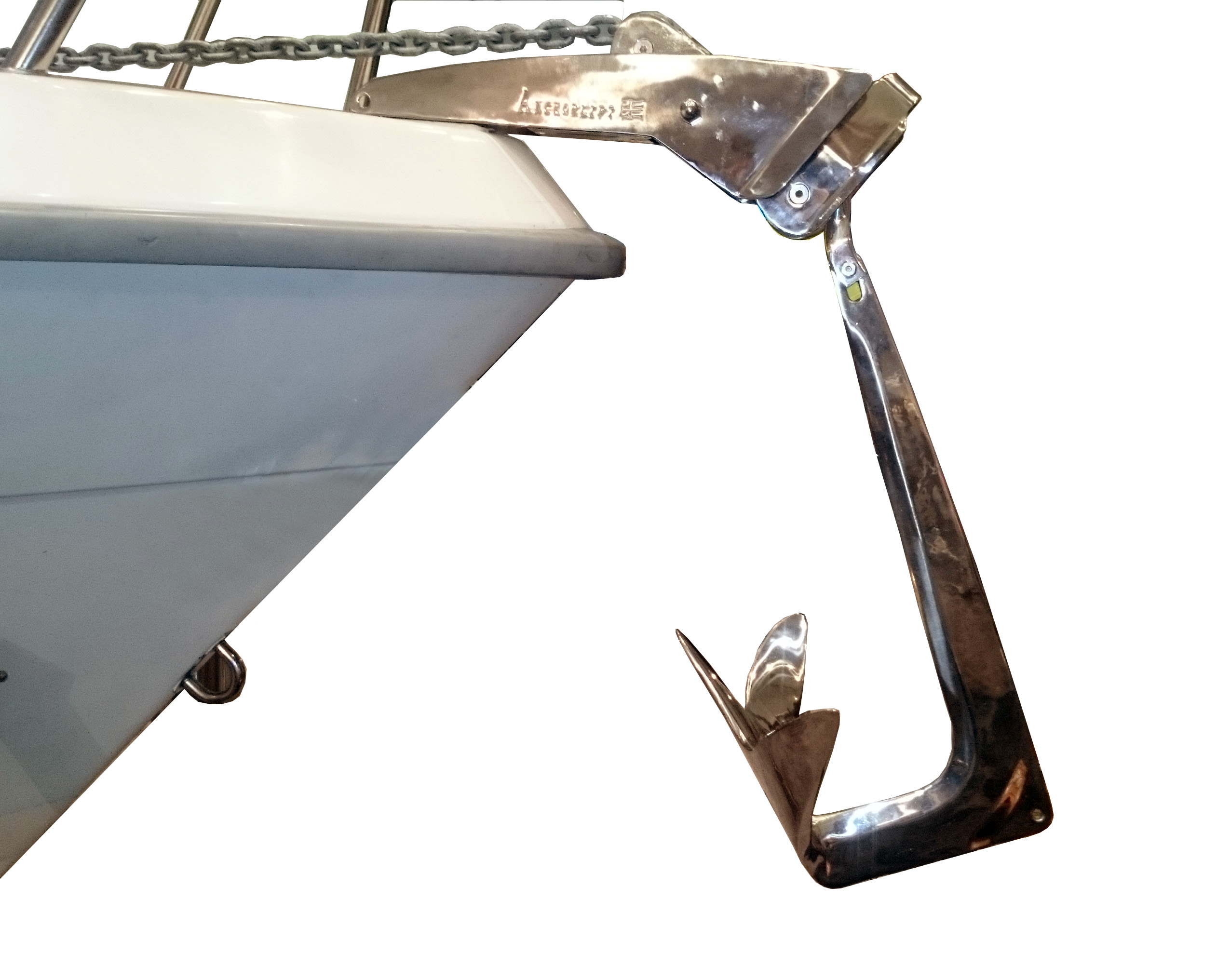

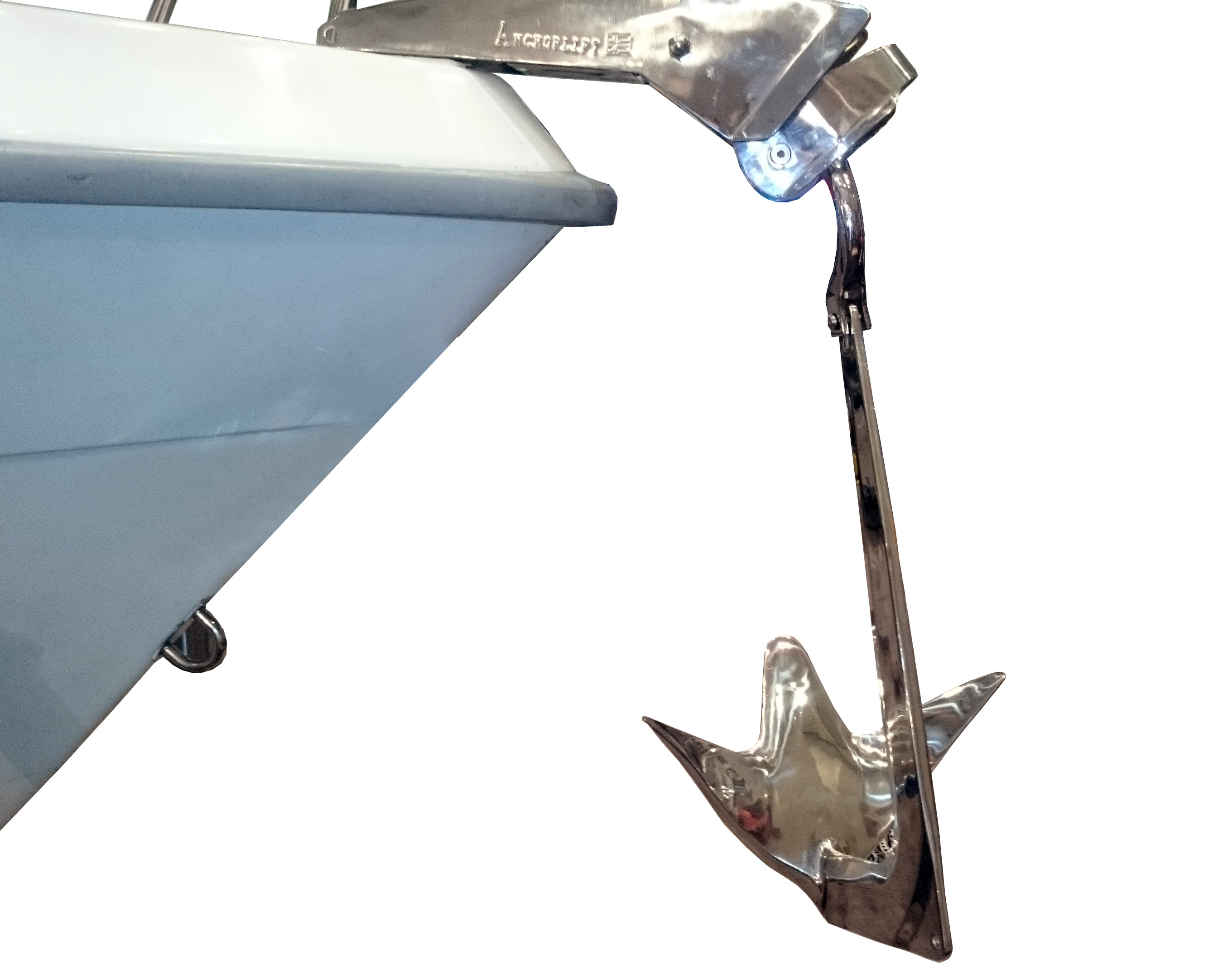

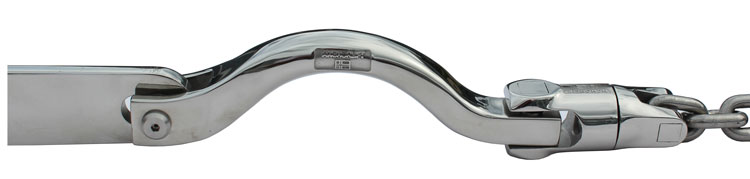

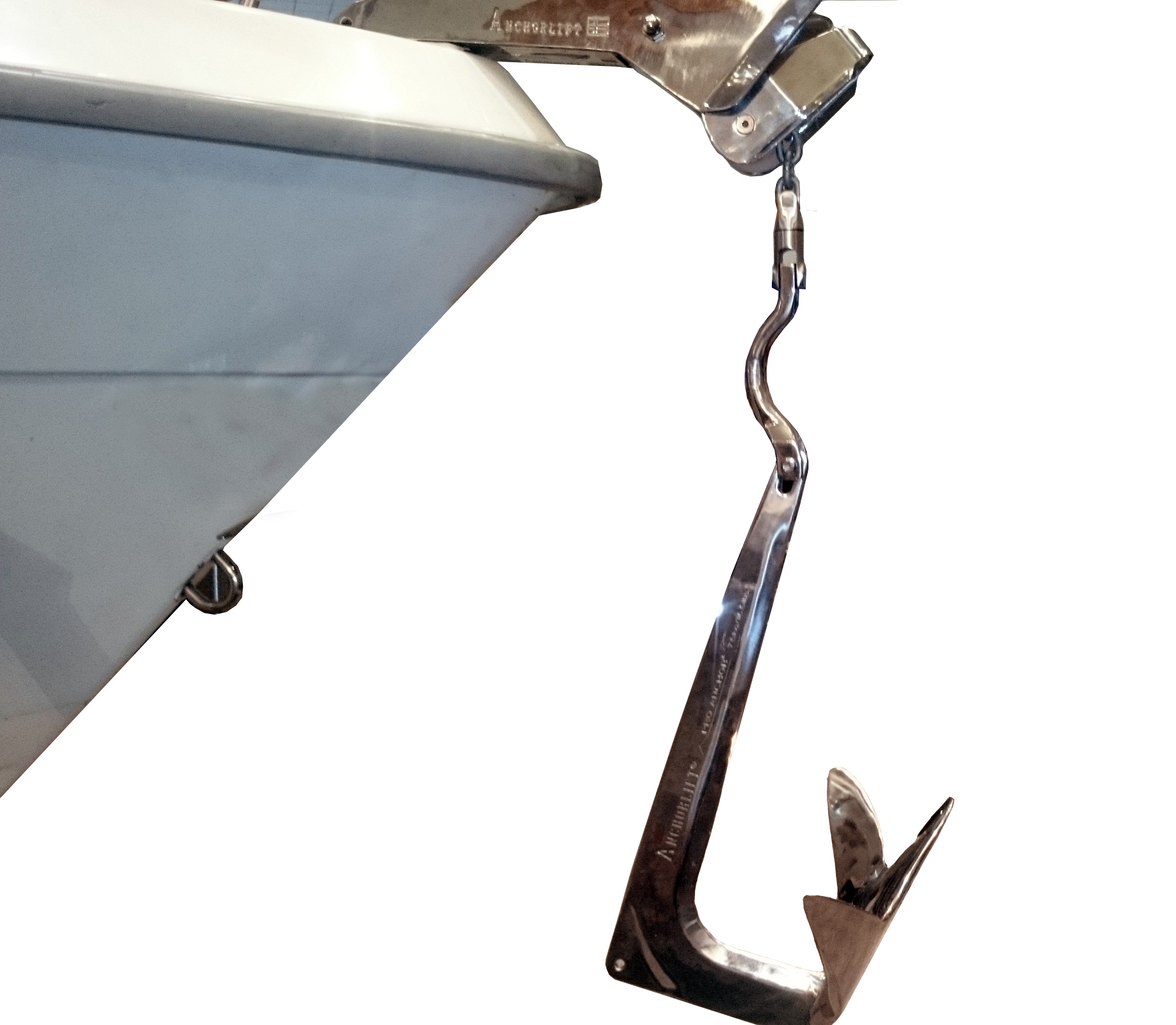

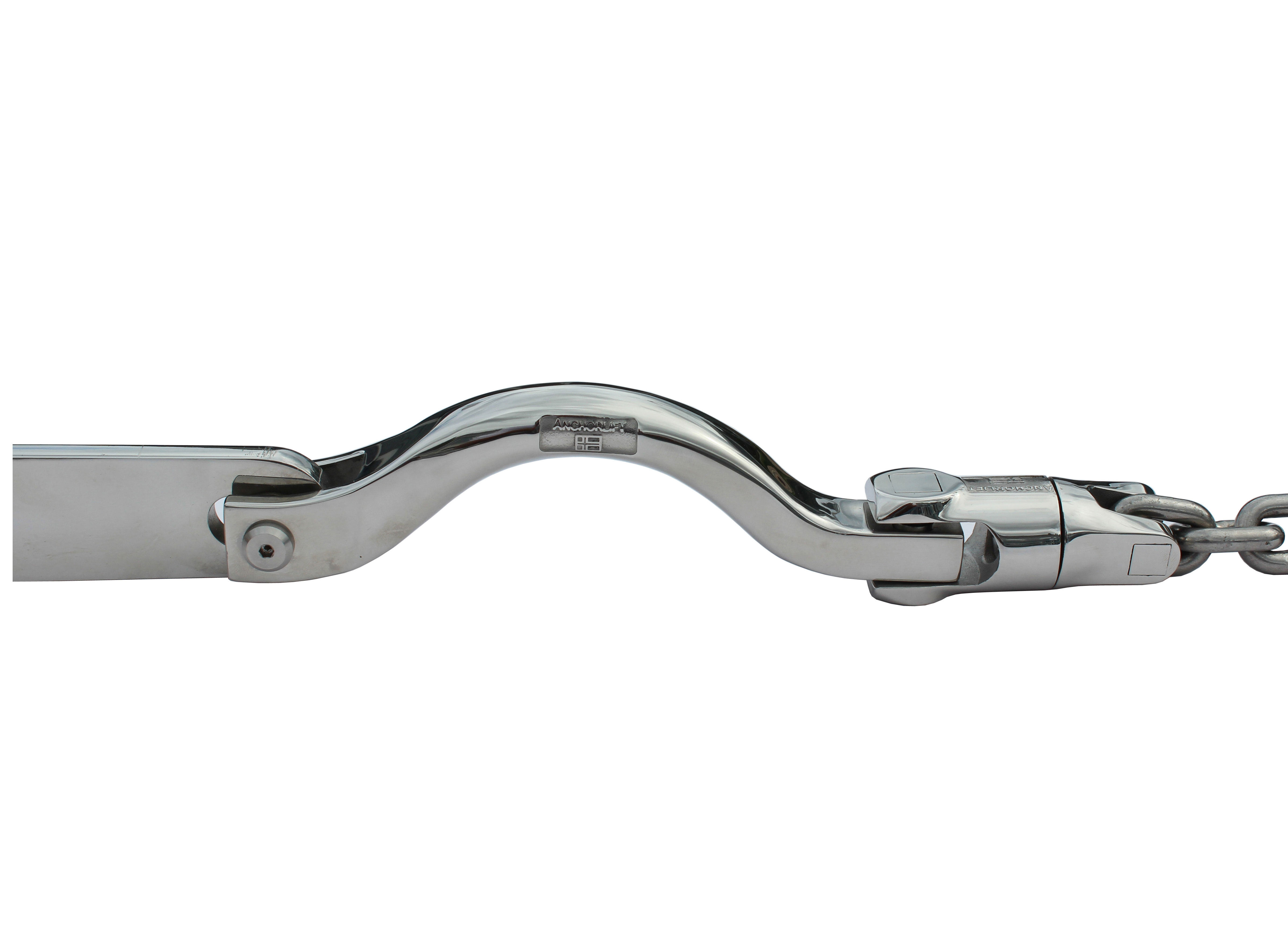

   Anchor Turner Connectors (with swivel)

           965008 - 12 Diagram
                                 Anchor Turner Size Guide
Part No.  Breaking Load Chain size
965008 2500 kgs / 5500 lbs 6-7 mm - 1/4"  Anchors 5kg/11lbs to 10kg/22lbs
965010 5000 kgs / 12500 lbs 8-10 mm - 5/16" - 3/8"  Anchors 10kg/22lbs to 25kg/55lbs
965011 7000 kgs / 15400 lbs 10-13 mm - 3/8" - 1/2"  Anchors 25kg/55lbs to 120kg/265lbs
965012 18500 kgs / 40700 lbs 14 - 20mm - 1/2" - 3/4"  Anchors 80kg/176lbs and up.

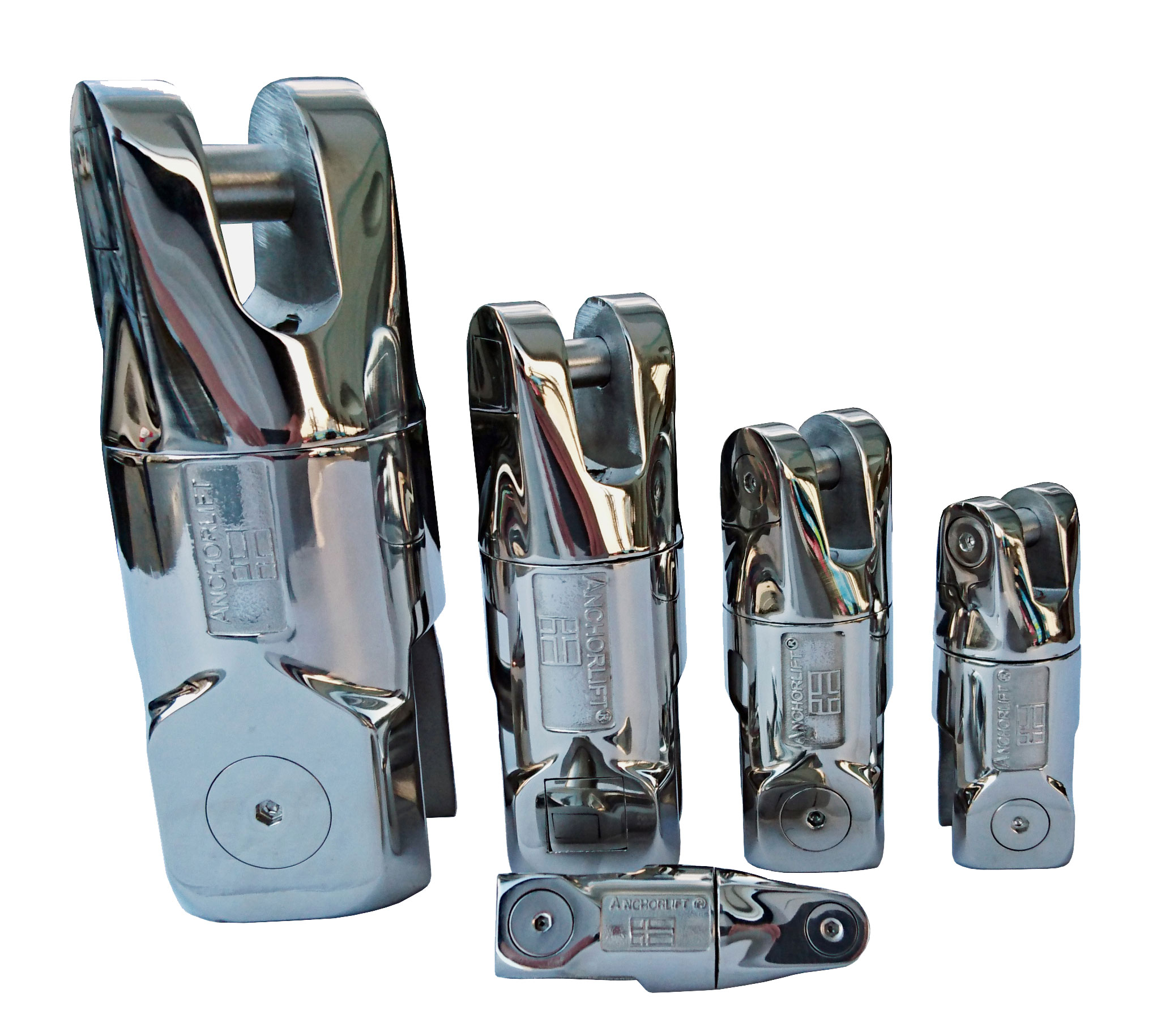

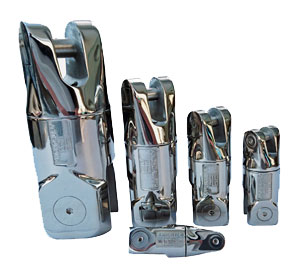

  Anchor Connectors (with swivel)

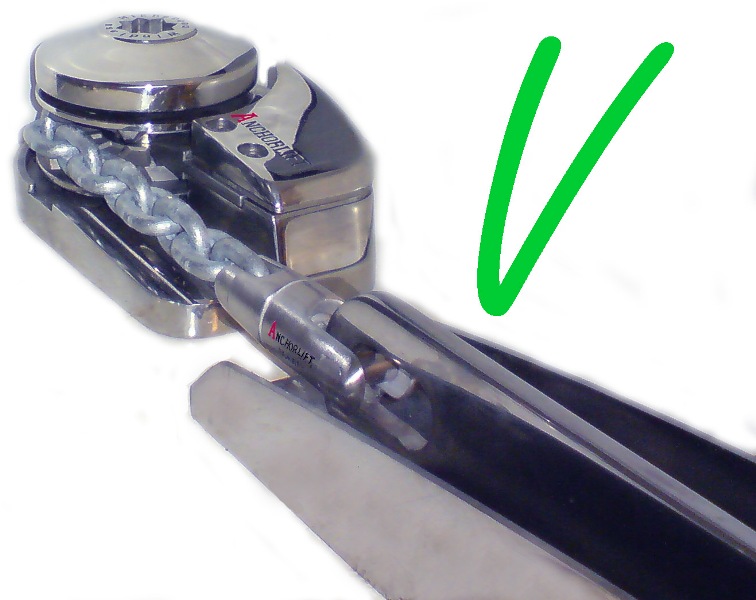

   Stainless steel AISI 316L anchor connectors with swivel. With an anchor connector swivel attached to the anchor it is impossible for the chain to get twisted.
   Anchorlift swivel has bronze bearing inside make it also spin when load on it, which is not the case for other well know swivels.

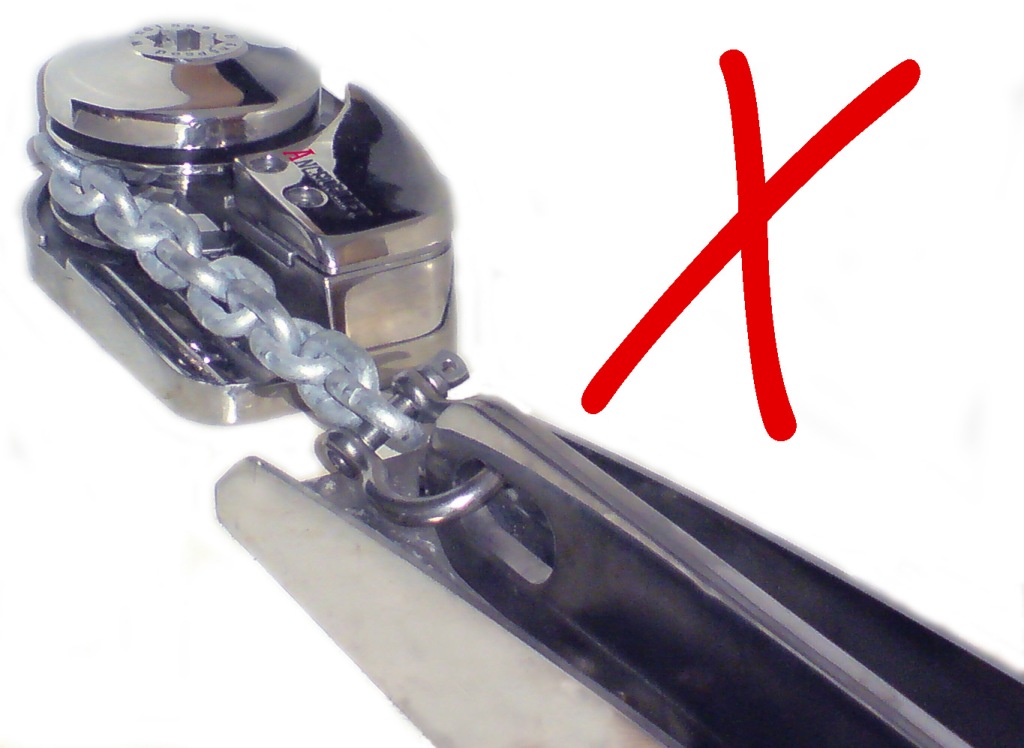

   The sleek shaped joint allows perfect sliding of the anchor through the roller with no risk of damaging any components.
   Fits Anchorlift TPX,  XR, CX,  Delta, Bruce, Pool and Holding anchors up to 250 kgs/ 550 lbs.


Model Number Breaking Load Chain size
964408 2500 kgs / 5500 lbs 6-7 mm - 1/4"                  Anchors 5kg/11lbs to 10kg/22lbs
964410 5000 kgs / 12500 lbs 8-10 mm - 5/16" - 3/8"   Anchors 10kg/22lbs to 25kg/55lbs
964411 6000 kgs / 13200lbs 10-12mm - 3/8" -7/16"   Anchors 25kg/55lbs to 80kg/176lbs
964412 7000 kgs / 15400 lbs 10-13 mm - 3/8" - 1/2"   Anchors 30kg/66lbs to 120kg/265lbs
964420 18500 kgs / 40700 lbs 14 - 20mm - 1/2" - 3/4"   Anchors 80kg/176lbs and up.




Diagram 964408 Metric

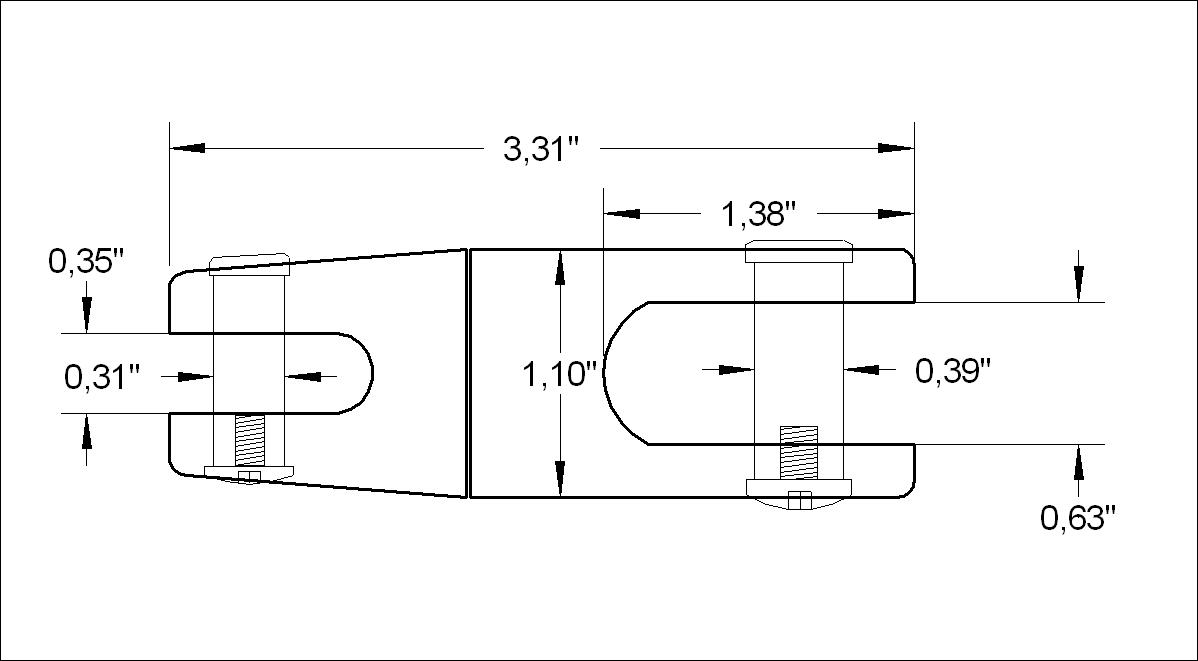

Diagram 964408 US Inc

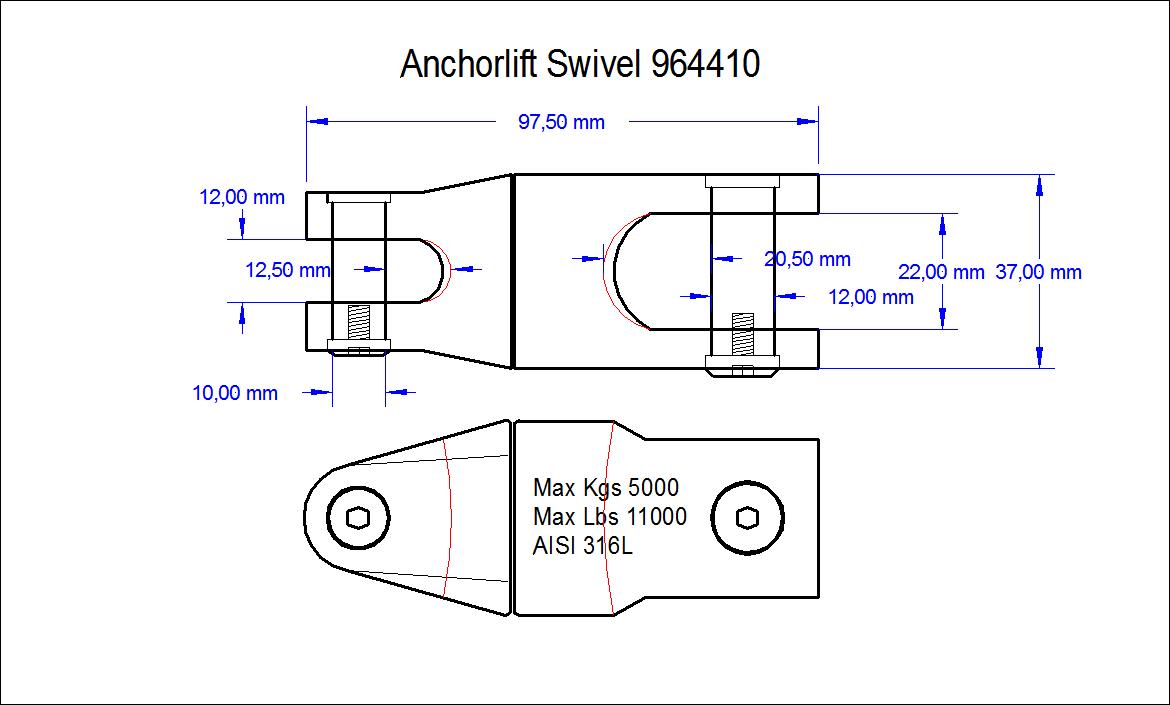

Diagram 964410 Metric

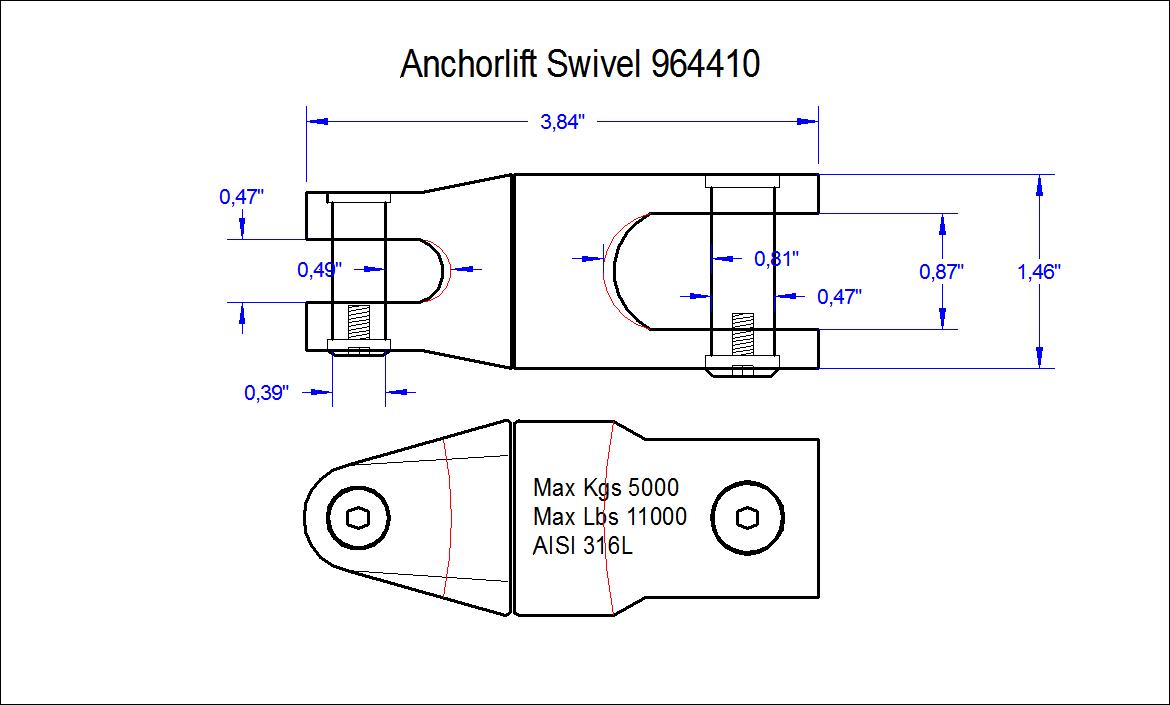

Diagram 964410 US Inc

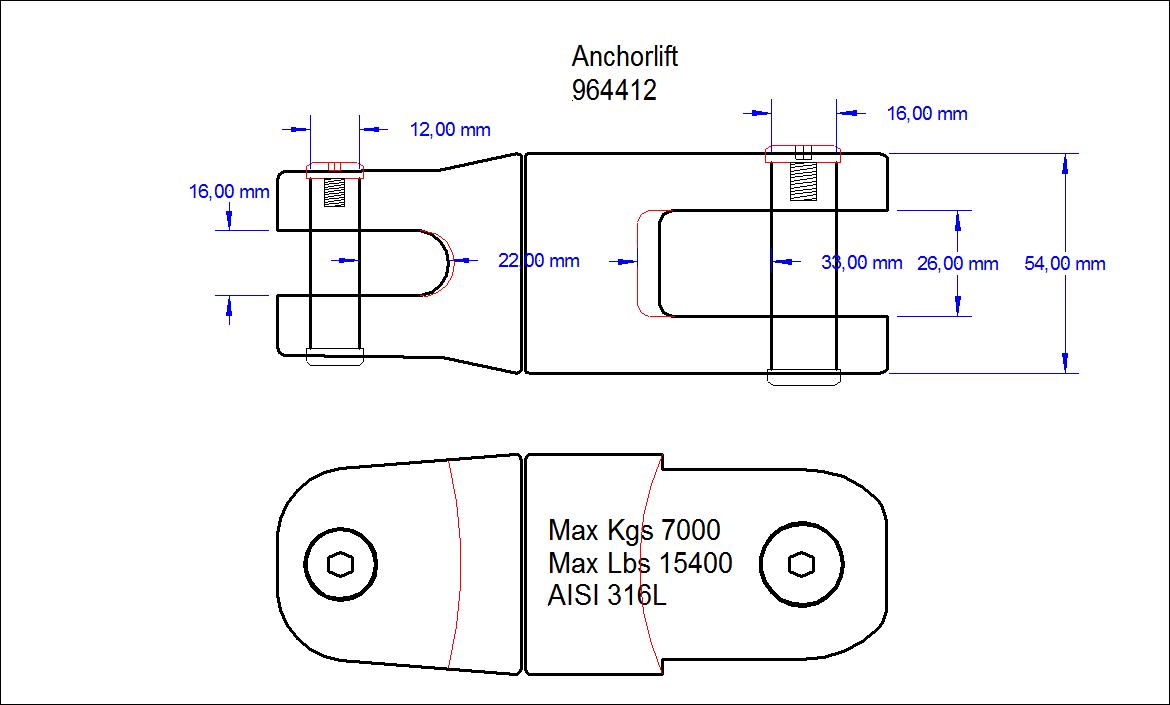

Diagram 964412 Metric

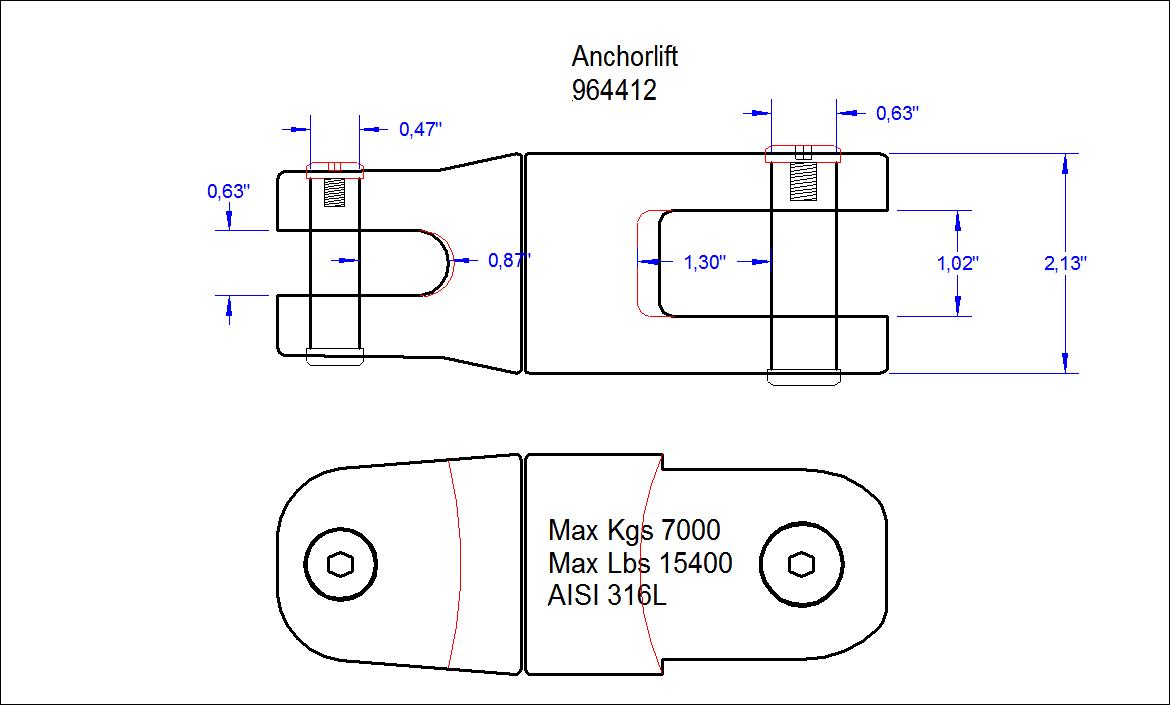

Diagram 964412 US Inc

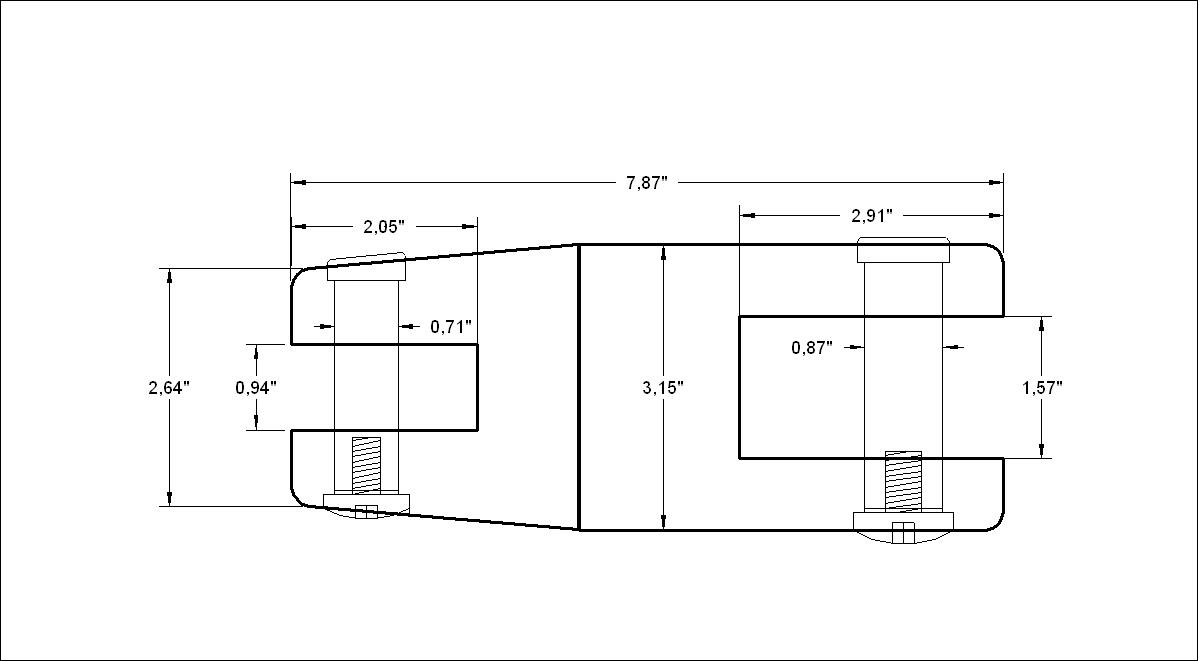

Diagram 964420 Metric
Diagram 964420 US Inc





Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
