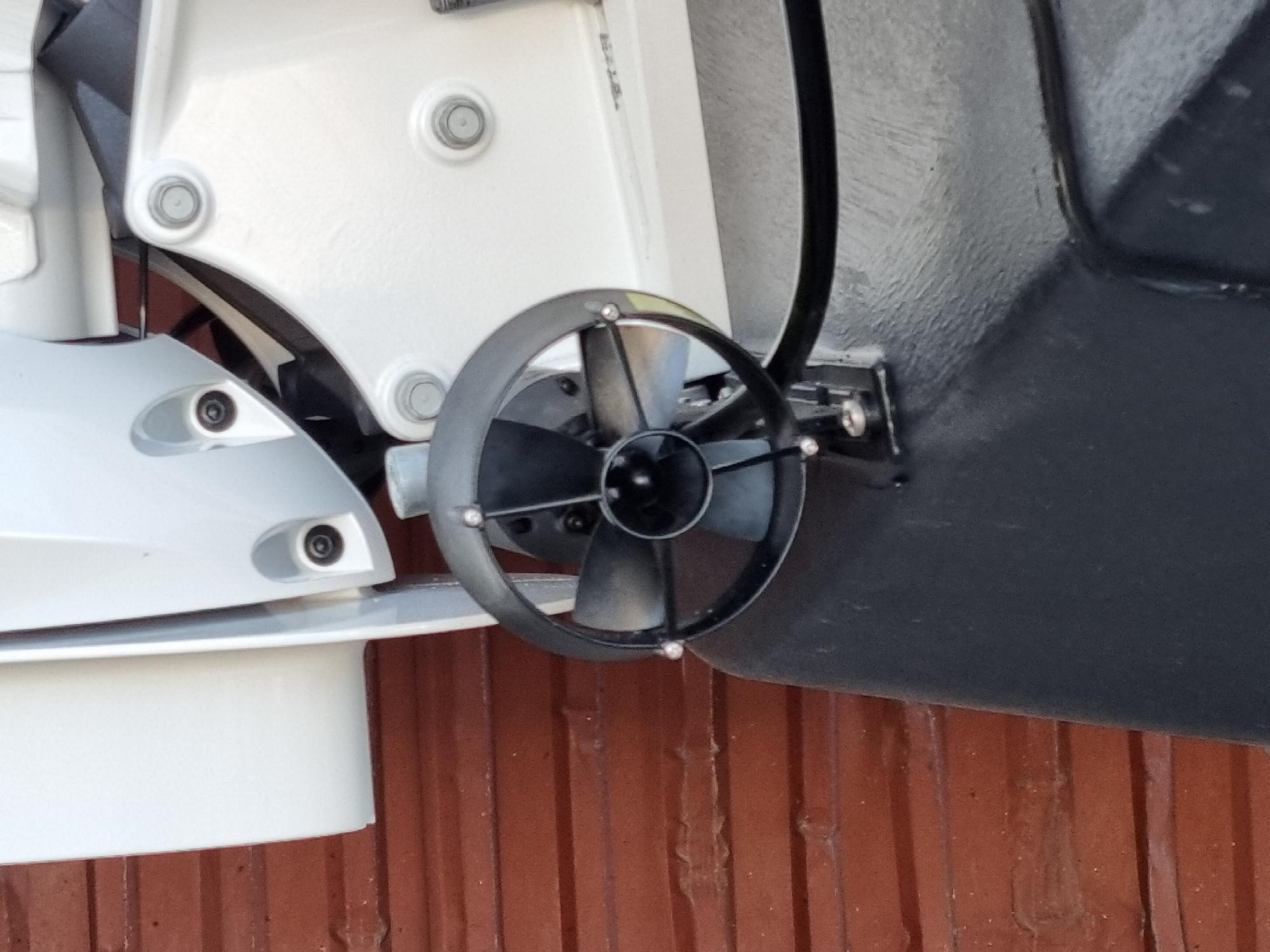

WS60 Ultra Compact Stern Thruster |
| |
The brand new WS60 is a completely new way of
mounting a stern thruster propeller system.
When mounting conventional stern thrusters on
boats with outboard motors or boats with stern drives, the motor / stern
drives is in the way of get free water flow to both sides.

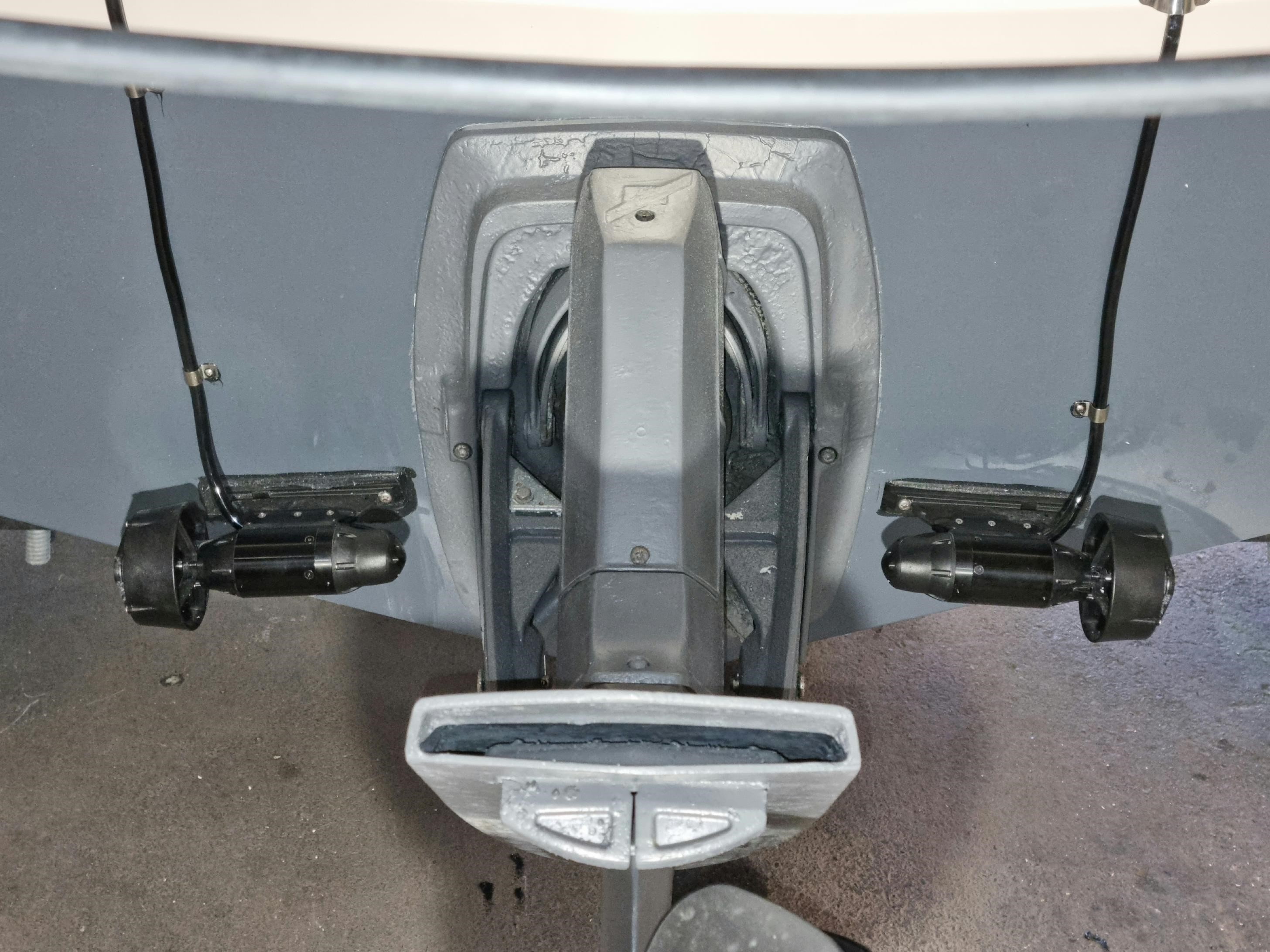

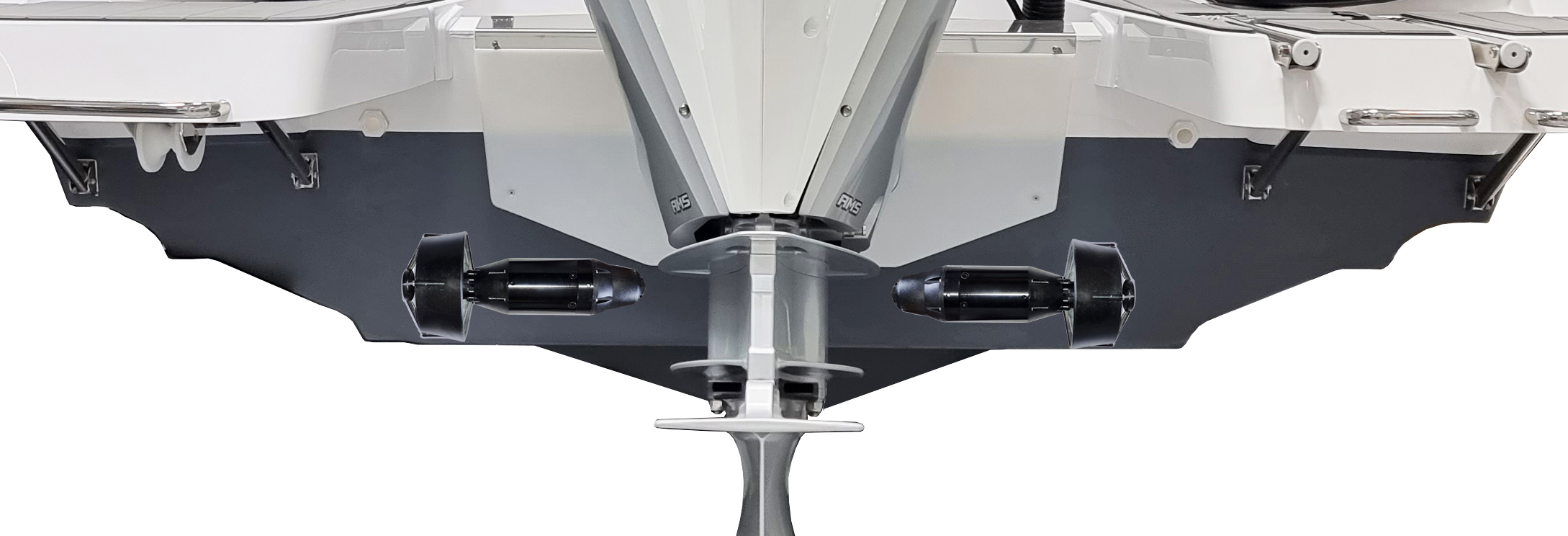

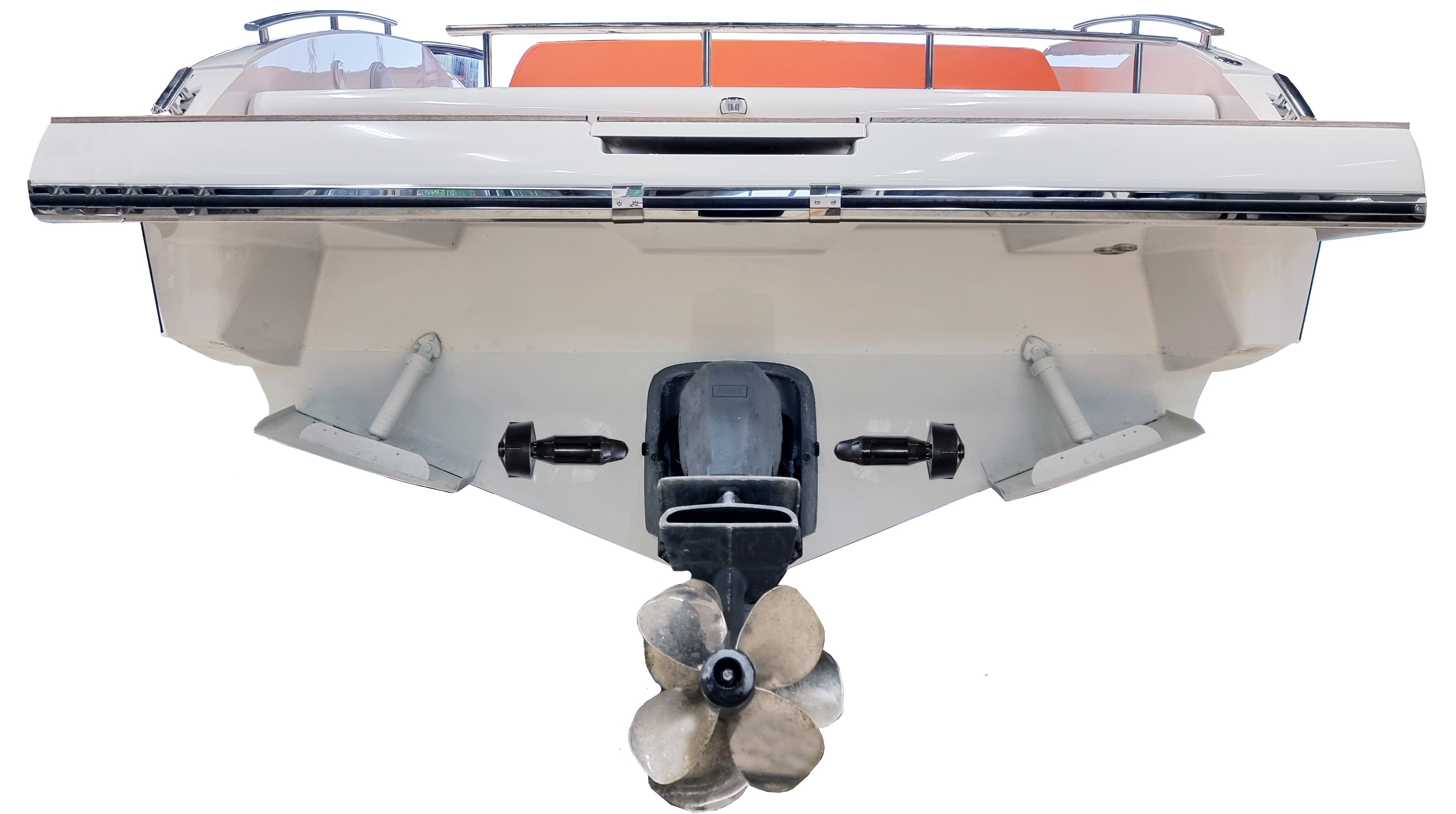

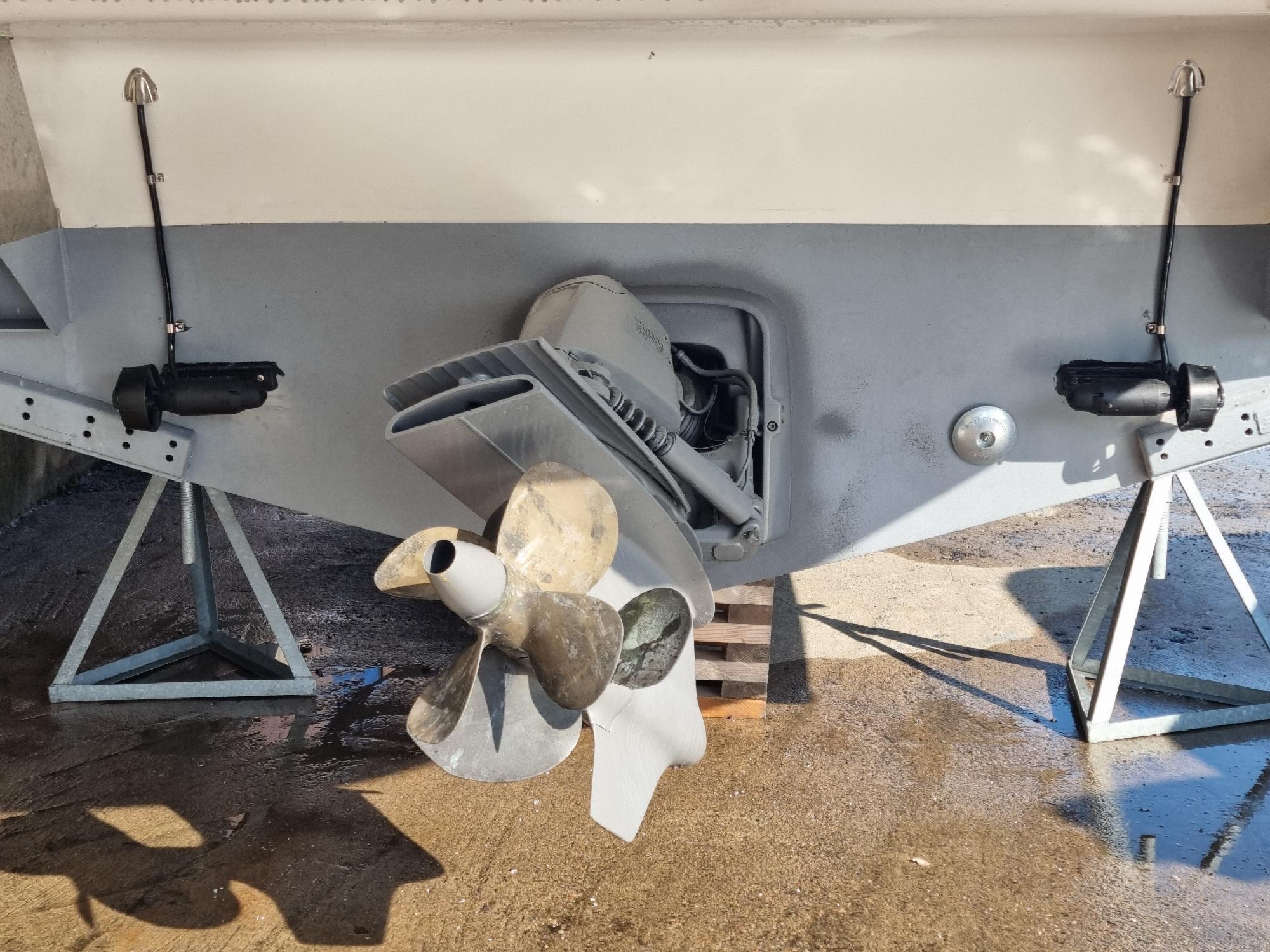

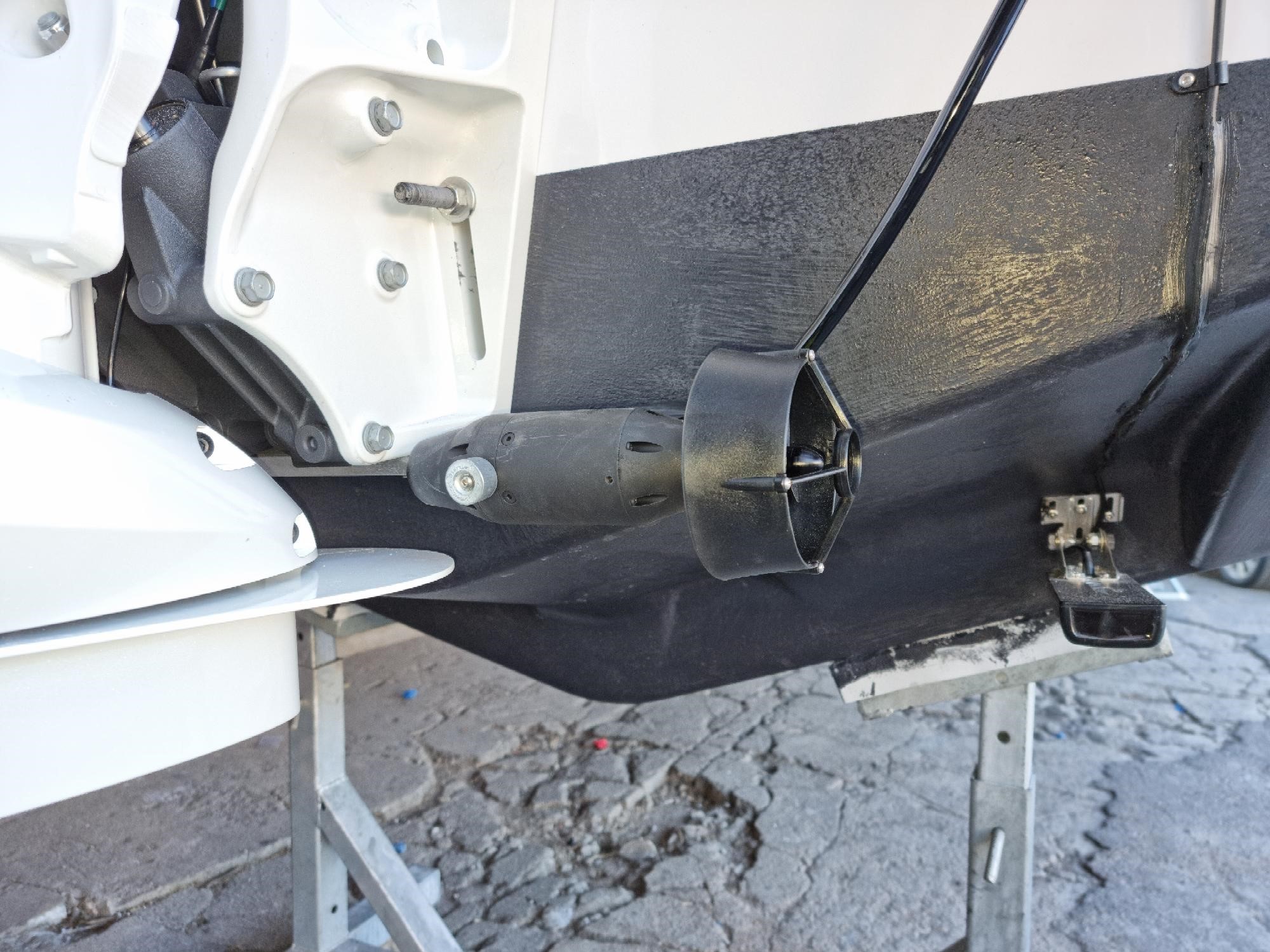

The WS60 has two thruster motores where one
is mounted on each side of the engine / stern drive, this provides free
water flow when maneuvering to the port or starboard side.

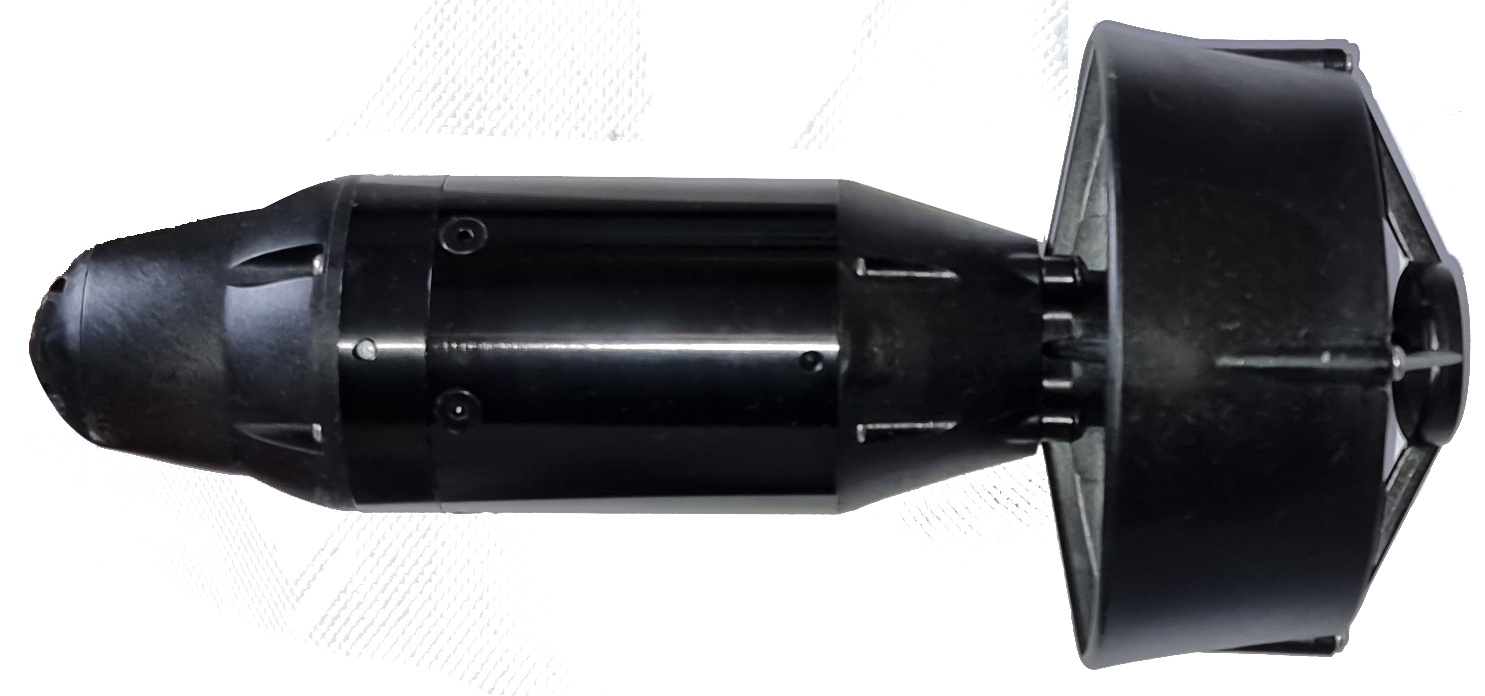

The WS60 is very flexible in installation
thanks to the new super-compact 3-phase brushless motor technology.
Despite its super compact size, the WS60 has similar power as a
conventional thuster system in the 60-65kg range.
Intended for boats
up to about 40ft max 8000kg

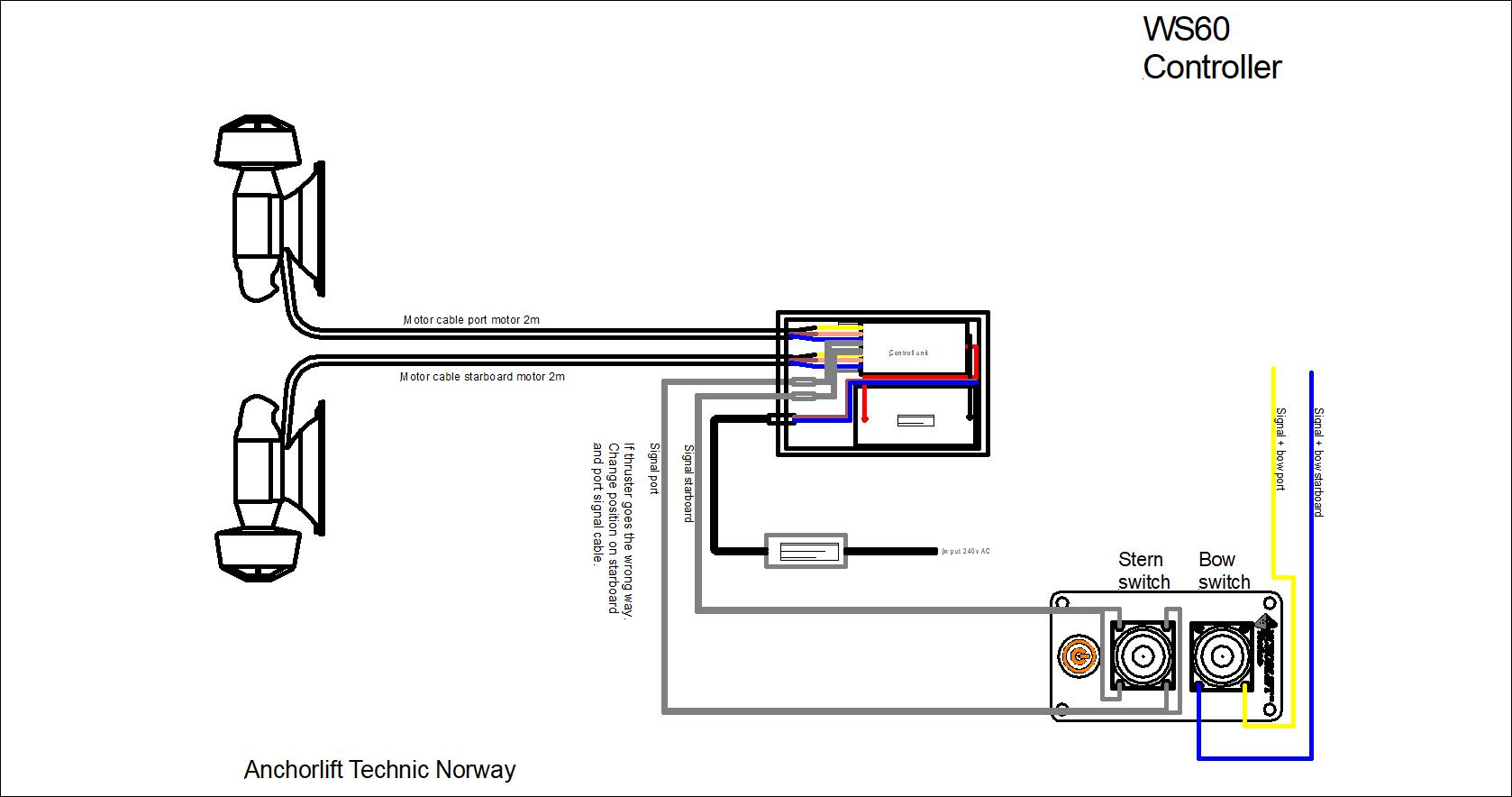

System contains:
2 thruster motores
with 2,5m motor cable, contoll unit with intrigated Lithium battery 36v
22amp and battery charger.
|
 |
DATA:
Engine: 2600w
3-phase direct-drive water-cooled.
Motor controls:
MOSFET
Battery: Lithium 36v 22amp
Operating time fully charged battery: 20-25min
Boats: Up to approx. 40 feet max 8000 kg
Helm Controls: Any joystick or push button
controls.
Circuit protection: Motor and
charging.
|
| |
|
Stern Thrusters
|
| |
|
|
High quality
Stern Thrusters. Space saving and time saving installations. Higher
power in relation to size.
6 blade propeller for more
power and quieter running. Long tunnel for better water flow and
less cavitation.

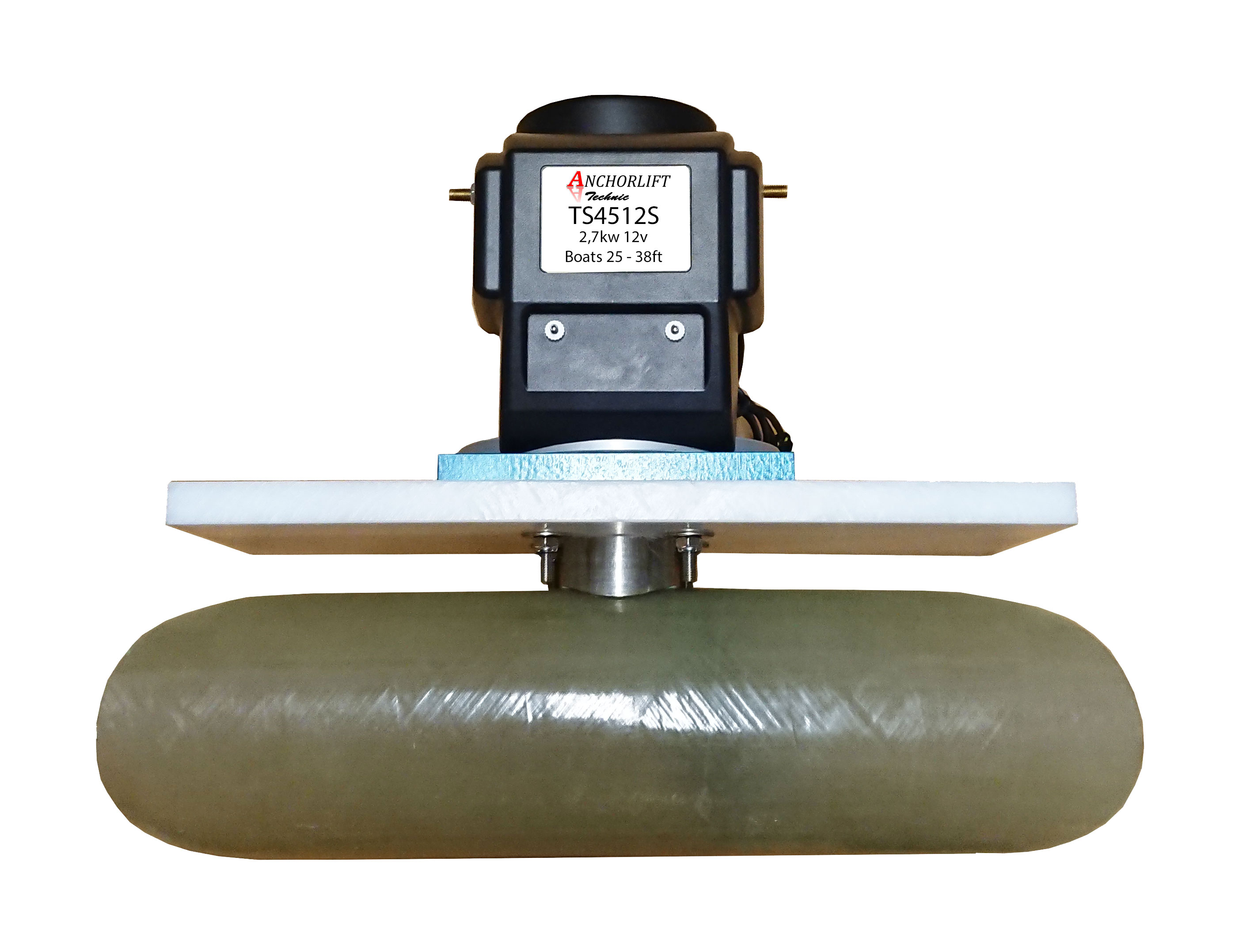

TS thruster comes with thru hull bracket
and GRP tunell.
|
|
|
|
Model
|
Propeller |
Tunnel |
Thust
|
Motor
|
Boat Size
|
|
TS3512S
|
Singel |
125mm |
38kg - 83lbs
|
2,2kw 12v
|
20 - 30ft
|
|
TS4512S |
Singel |
125mm |
48kg - 105lbs |
2,7kw 12v |
25 - 38ft |
|
TS6512T |
Twin |
150mm |
68kg - 150lbs |
3,8kw 12v |
30 - 45ft |
|
TS8012S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 12v |
35 - 50ft |
|
TS8024S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 24v |
35 - 50ft |
|
TS9512T |
Twin |
185mm |
95kg - 209lbs |
6kw 12v |
40 - 55ft |
|
TS9524T |
Twin |
185mm |
95kg - 209lbs |
6kw 24v |
40 - 55ft |
|
TS12024T |
Twin |
185mm |
125kg - 275lbs |
7kw 24v |
55 - 65ft |
|
TS15024T |
Twin |
250mm |
155kg - 341lbs |
8kw 24v |
60 - 70ft |
|
| |
|
|

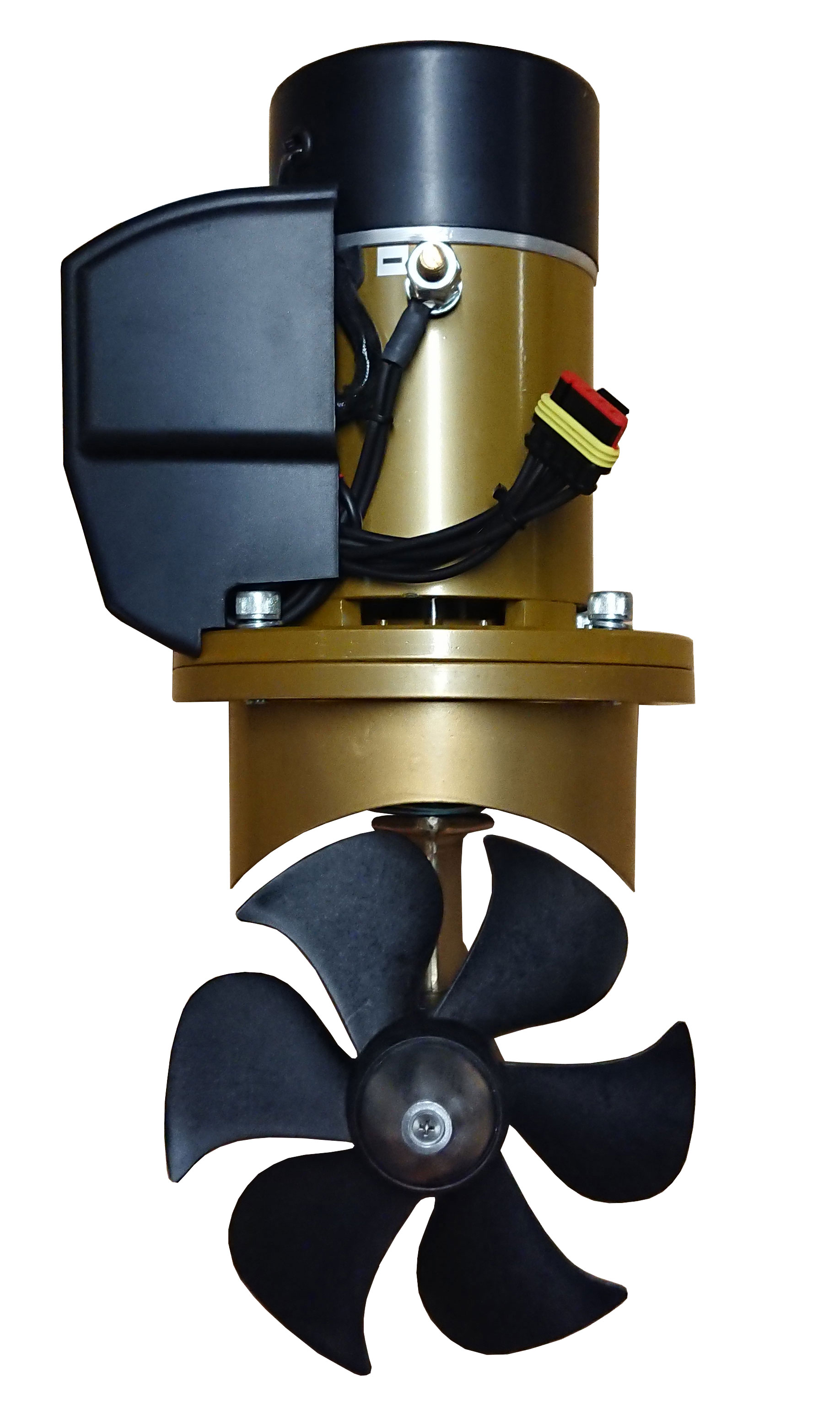

Bow
Thrusters |
| |
High quality Bow Thrusters. Higher power
in relation to size.
6 blade propeller for more
power and quieter running. |
 |
|
Model
|
Propeller |
Tunnel |
Thust
|
Motor
|
Boat Size
|
|
S3512S
|
Singel |
125mm |
38kg - 83lbs
|
2,2kw 12v
|
20 - 30ft
|
|
S4512S |
Singel |
125mm |
48kg - 105lbs |
2,7kw 12v |
25 - 38ft |
|
S6512T |
Twin |
150mm |
68kg - 150lbs |
3,8kw 12v |
30 - 45ft |
|
S8012S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 12v |
35 - 50ft |
|
S8024S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 24v |
35 - 50ft |
|
S9512T |
Twin |
185mm |
95kg - 209lbs |
6kw 12v |
40 - 55ft |
|
S9524T |
Twin |
185mm |
95kg - 209lbs |
6kw 24v |
40 - 55ft |
|
S12024T |
Twin |
185mm |
125kg - 275lbs |
7kw 24v |
55 - 65ft |
|
S15024T |
Twin |
250mm |
155kg - 341lbs |
8kw 24v |
60 - 70ft |
|
S17524T |
Twin |
250mm |
175kg - 440lbs |
8,5kw 24v |
65 - 75ft |
|
S20024T |
Twin |
250mm |
200kg - 440lbs |
11,5kw 24v |
70 - 80ft |
|
|

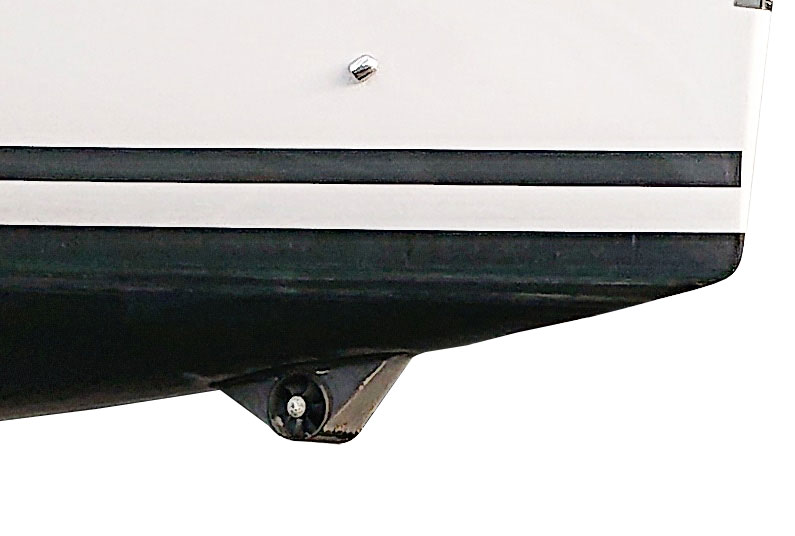

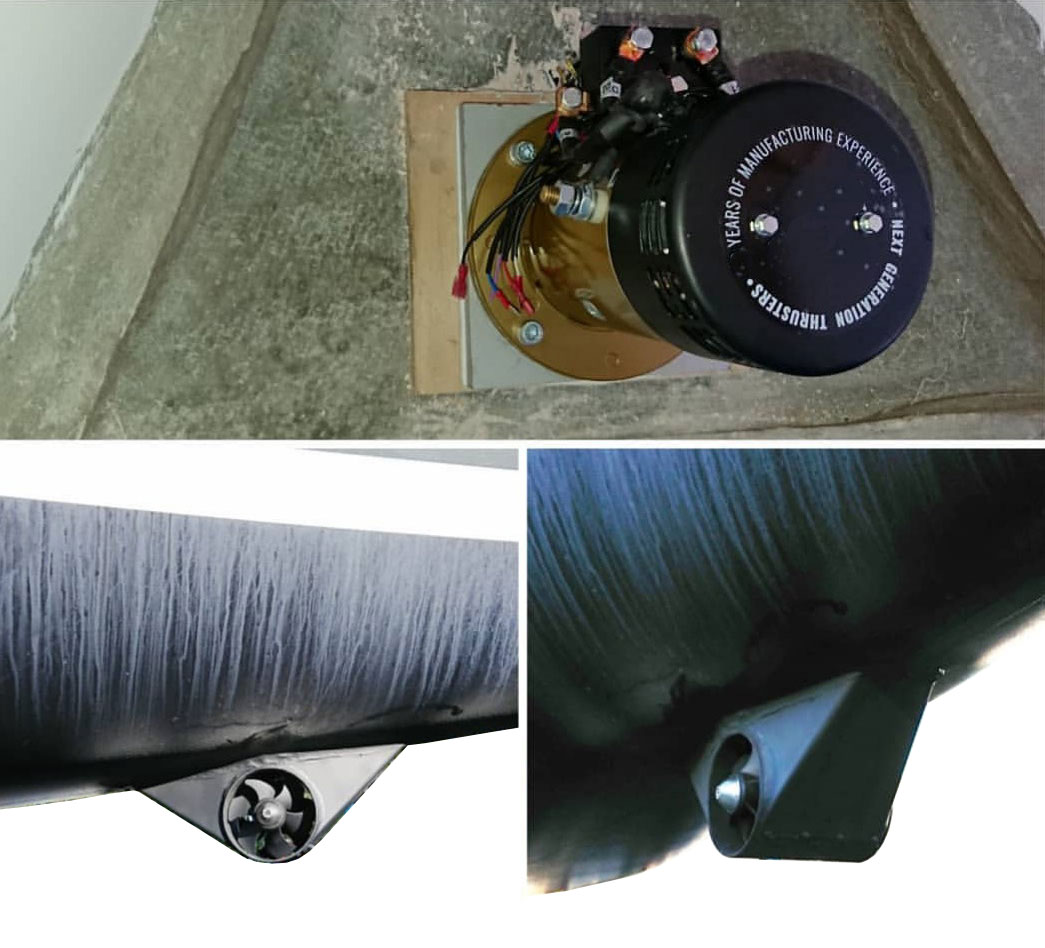

Bow & Stern Thrusters |
|
|
High quality Bow and Stern Thrusters.
Boats where a tunnel in the hull is not
possible. Higher power in relation to size.
6 blade propeller for more power and quieter
running. No electrical parts outside the hull /
in water like others on the marked.
Runs on 12v thruster 35 to 95kg thrust, 24v
thrusters 80 to 150kg. Lower cost than competing
brands
Popular on modern sail boats
bow and stern installations.
|
|
|
|
Model
|
Propeller |
Tunnel |
Thust
|
Motor
|
Boat Size
|
|
TSX3512S
|
Singel |
125mm |
38kg - 83lbs
|
2,2kw 12v
|
20 - 30ft
|
|
TSX4512S |
Singel |
125mm |
48kg - 105lbs |
2,7kw 12v |
25 - 38ft |
|
TSX6512T |
Twin |
150mm |
68kg - 150lbs |
3,8kw 12v |
30 - 45ft |
|
TSX8012S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 12v |
35 - 50ft |
|
TSX8024S |
Singel |
185mm |
85kg - 187lbs |
4,5kw 24v |
35 - 50ft |
|
TSX9512T |
Twin |
185mm |
95kg - 209lbs |
6kw 12v |
40 - 55ft |
|
TSX9524T |
Twin |
185mm |
95kg - 209lbs |
6kw 24v |
40 - 55ft |
|
TSX12024T |
Twin |
185mm |
125kg - 275lbs |
7kw 24v |
55 - 65ft |
|
TSX15024T |
Twin |
250mm |
155kg - 341lbs |
8kw 24v |
60 - 70ft |
|
|
|
|
|
| |
| |
|
Switch Panels High Gloss Stainless Steel
|
|
High quality switch panels made in solid
high gloss polished stainless steel.
LED on/off button.
92801 92802 LED red and green button.
| |
|
 |
|
Model
|
Length
|
Width
|
Type
|
Volt
|
|

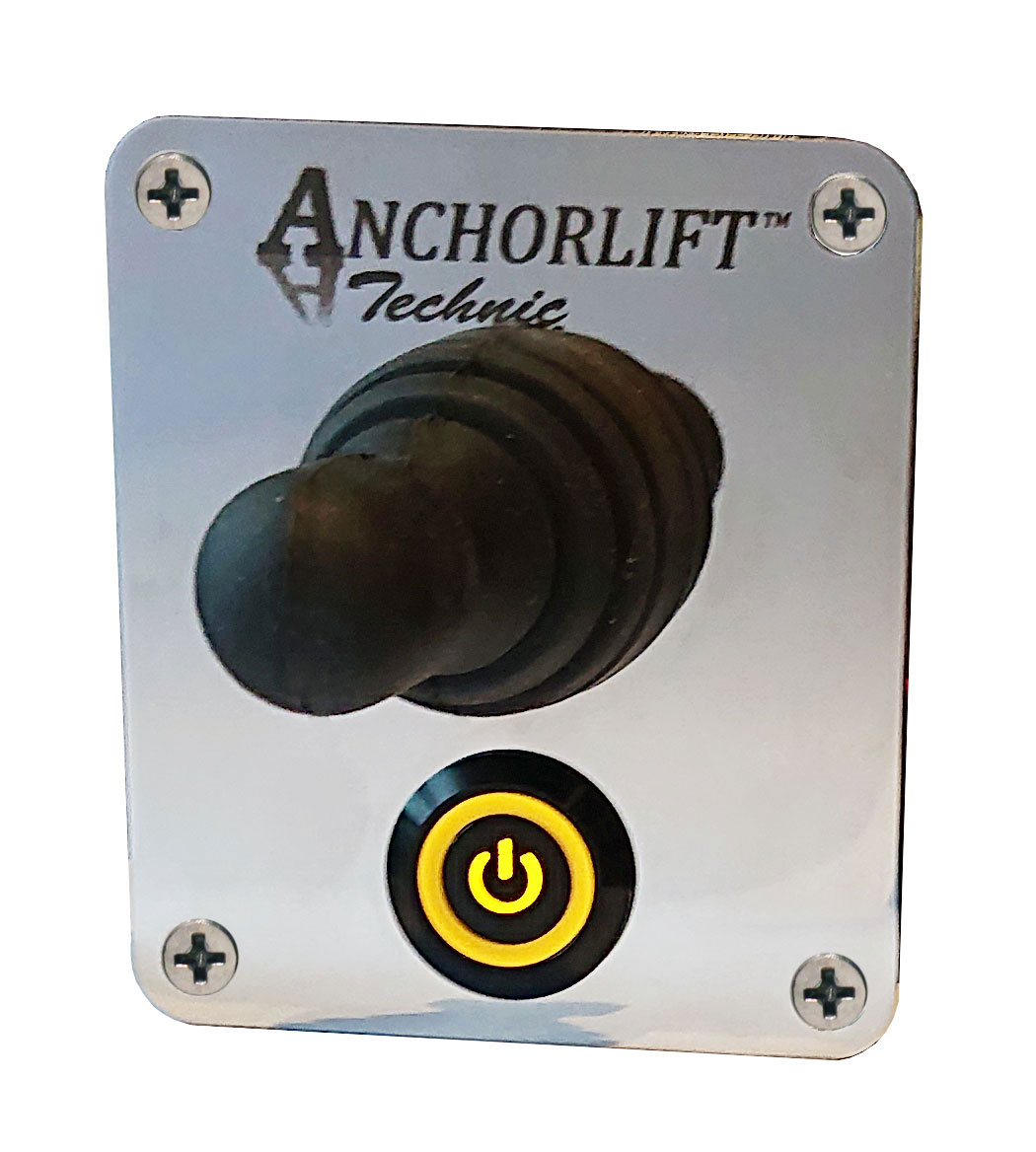

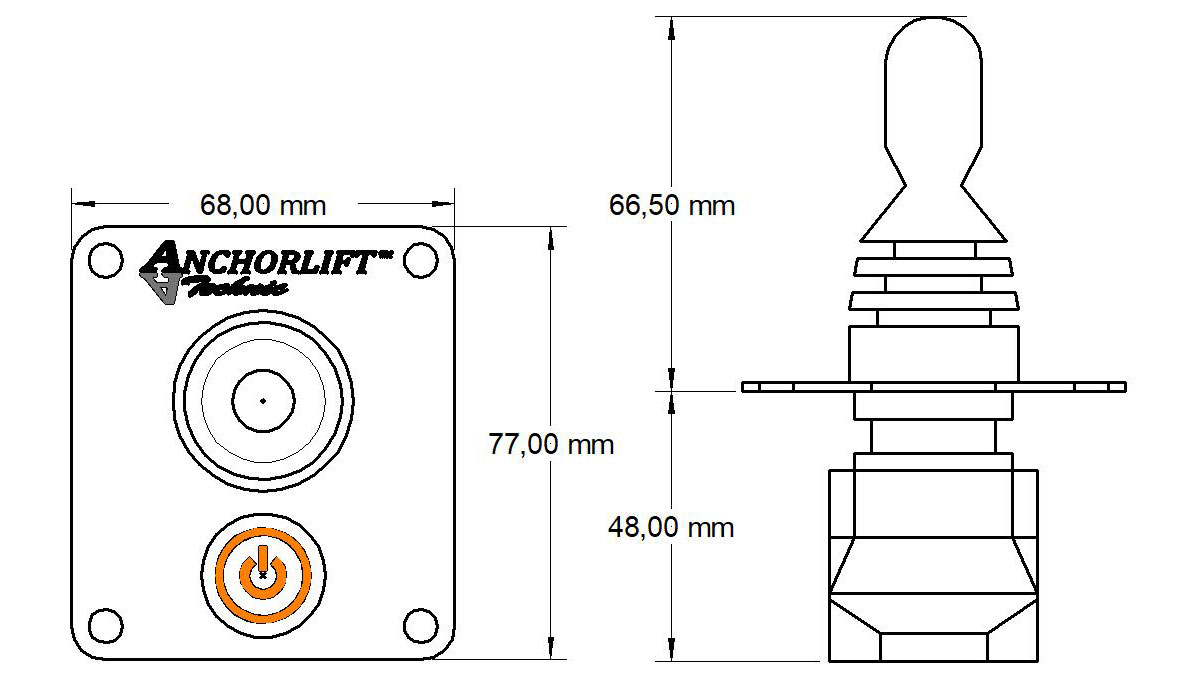

92803
|
77mm - 3"
|
68 mm - 2,67 "
|
Joystick /
Single
|
12 - 24v
|
 |
 |
|
Model
|
Length
|
Width
|
Type
|
Volt
|
|

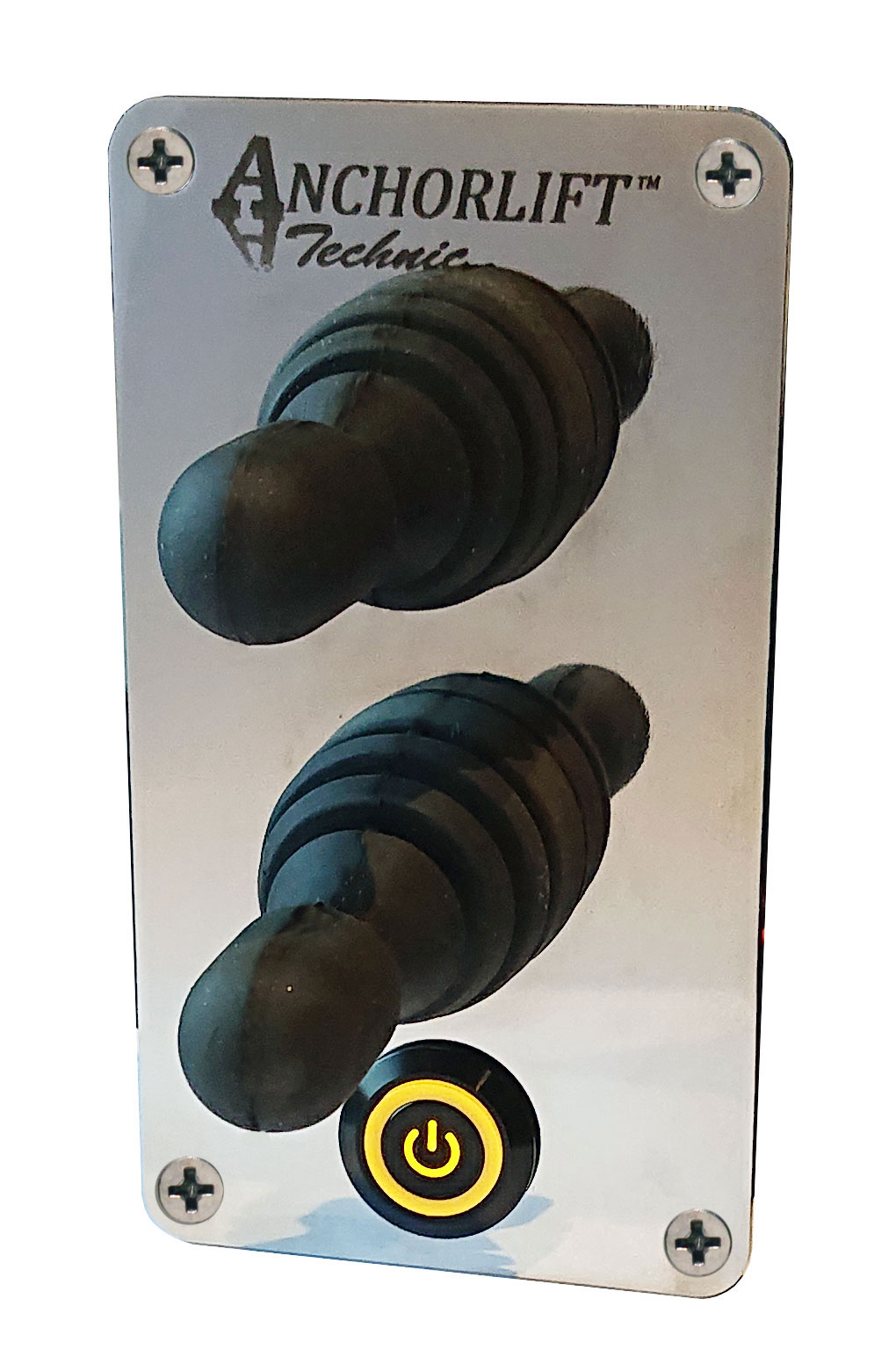

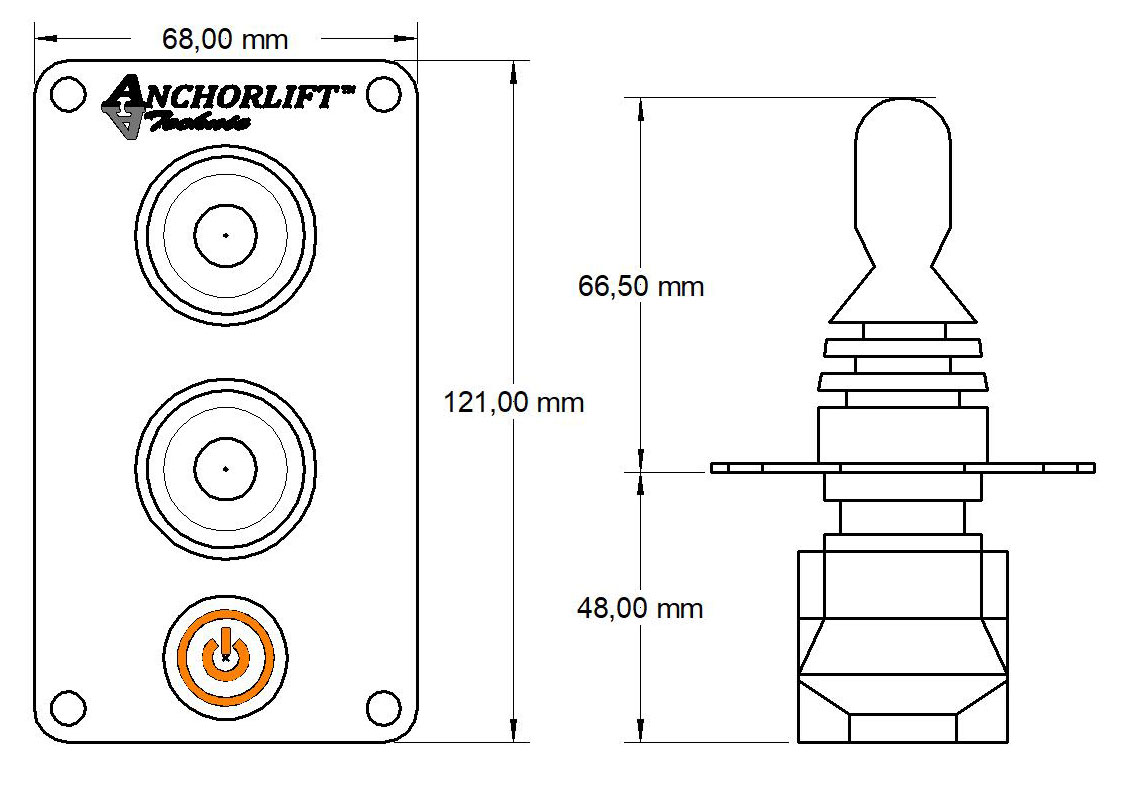

92804
|
121mm - 4,76"
|
68 mm - 2,67 "
|
Joystick /
Double
|
12 - 24v
|
 |
 |
|
Model
|
Length
|
Width
|
Type
|
Volt
|
|

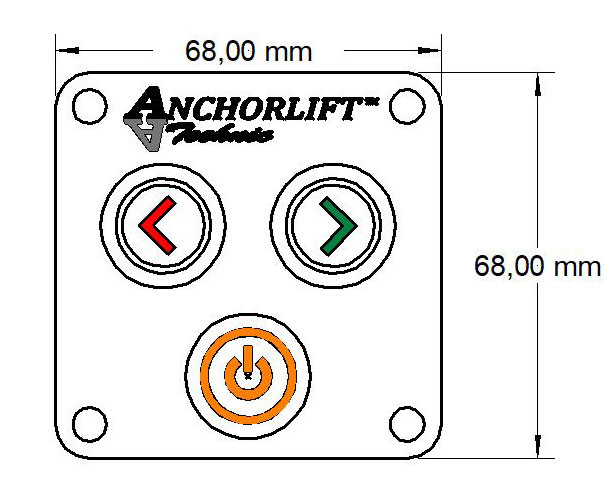

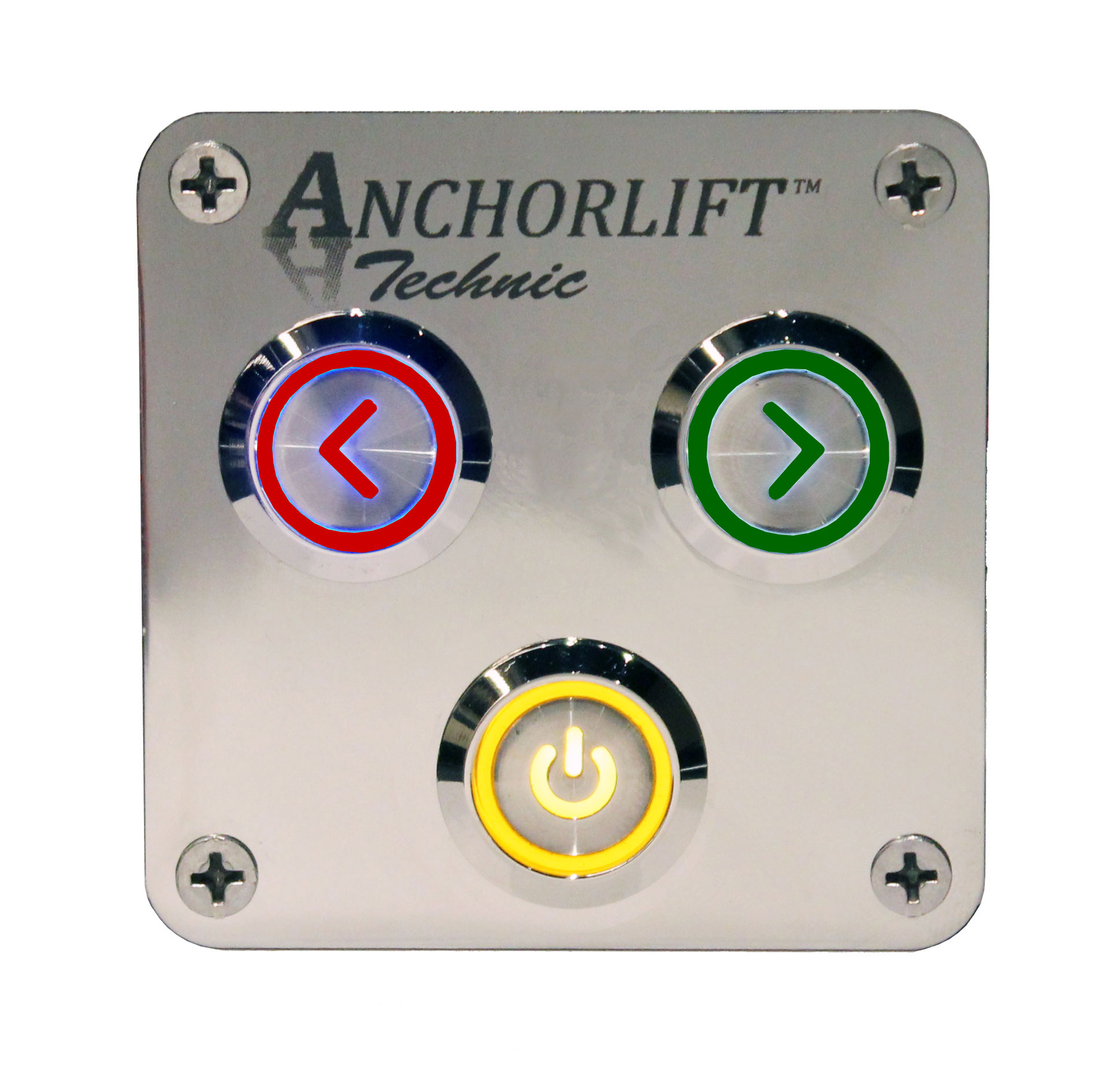

92801
|
68mm - 2,67"
|
68 mm - 2,67 "
|
Touch / Double
|
12 - 24v
|
 |
 |
|
Model
|
Length
|
Width
|
Type
|
Volt
|
|

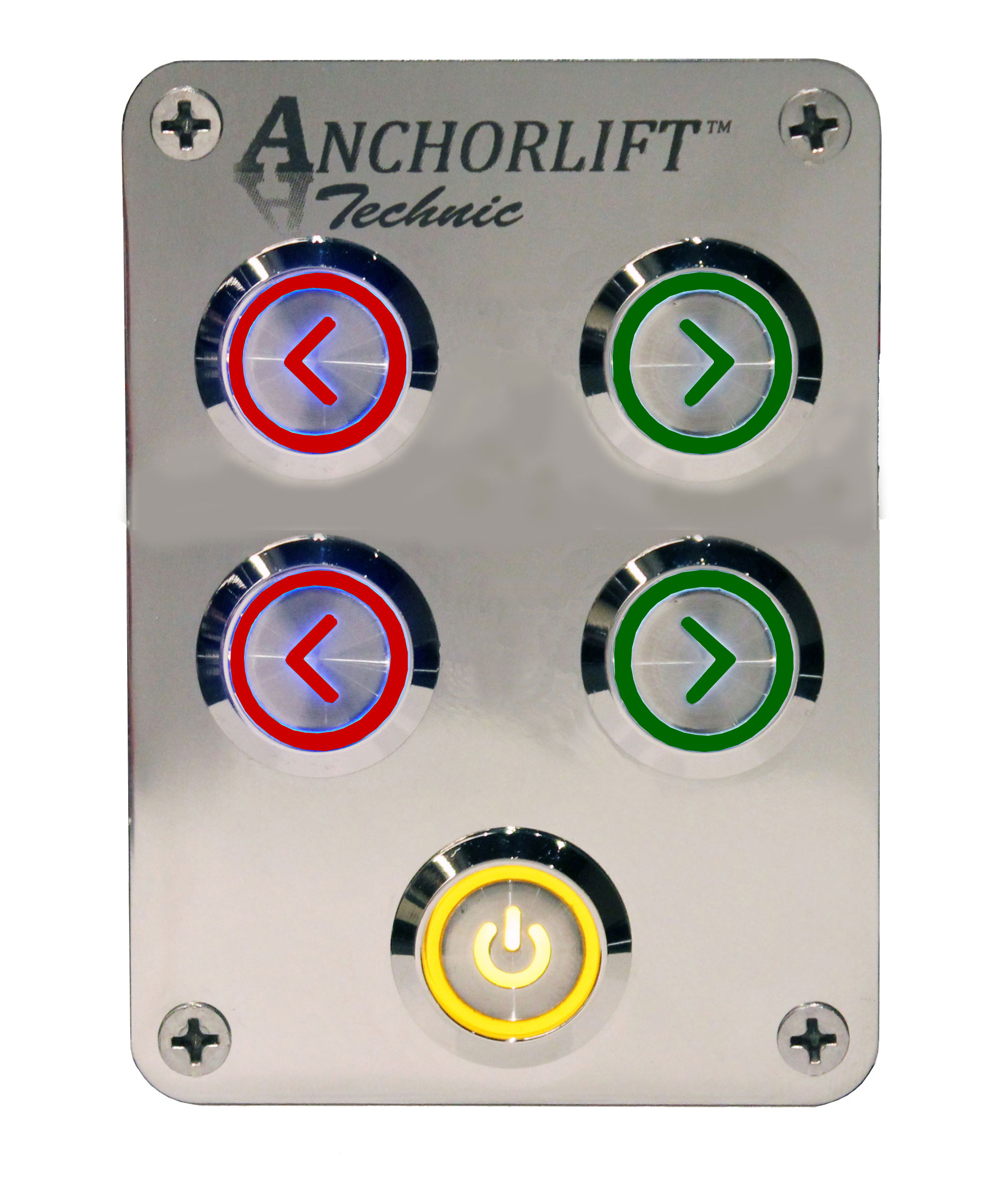

92802
|
92mm - 3,6"
|
68 mm - 2,67 "
|
Touch / Double
|
12 - 24v
|
|
| |
|
|
|
|
| |
| |
|

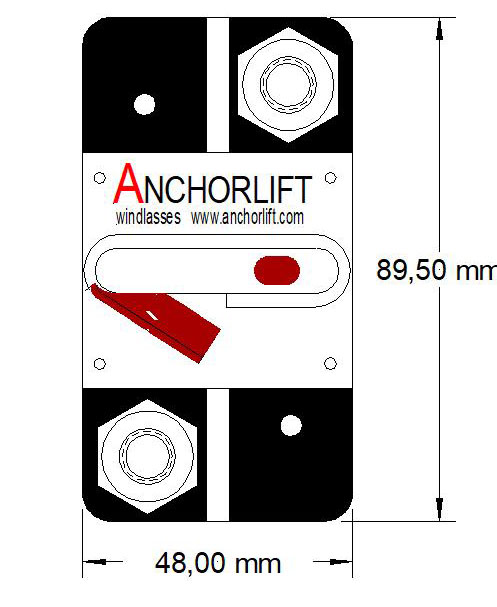

Circuit Breakers |
|
|
Circuit breakers High Amp with
emegrancy ON/OFF switch. Thermal type. |
 |
|
Model
|
Amp
|
On / Off
Switch
|
Type
|
Volt
|
|
90200
|
200amp - 400amp 20sec
|
Yes
|
Thermal Singel
|
12 - 48v
|
|

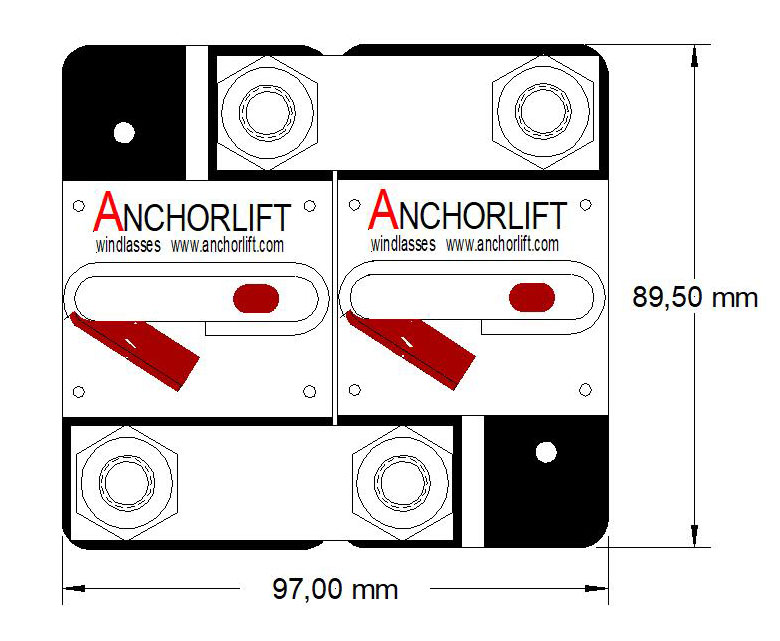

90300 |
300amp - 600amp 20sec |
Yes |
Thermal Double |
12 - 48v |
|

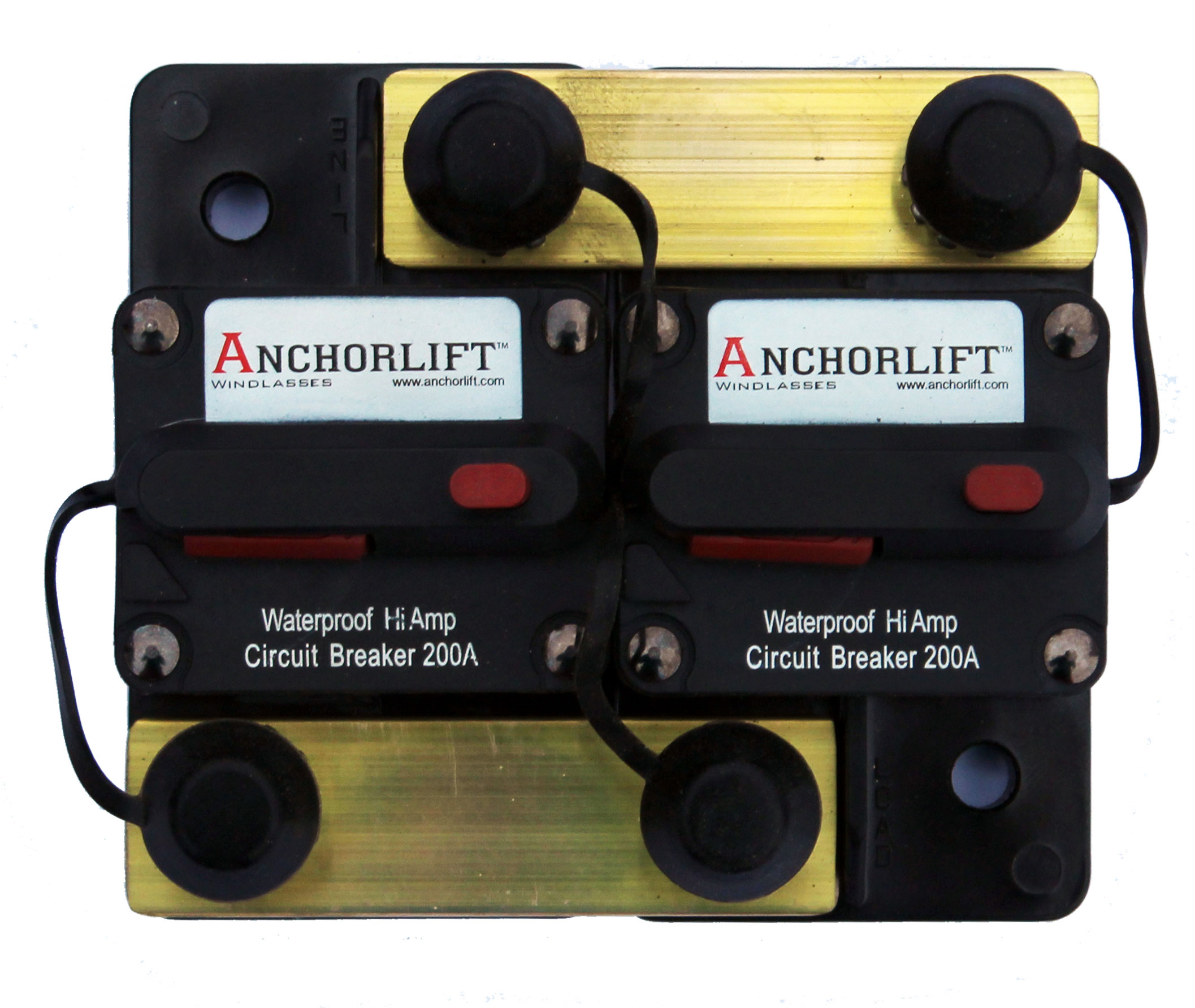

90400 |
400amp - 800amp 20sec |
Yes |
Thermal Double |
12 - 48v |
  |
|
|
|
|
|
|
|
|
|
|
|
|
