Windlasses
What size boat do you need Windlasses for?
Windlasses for Boats from 35 - 45 feet
Dolphin logo
Low Profile models
  Highspeed Windlass logo
Ideal for boats 35-45 feet long. These Low Profile models are designed for smooth & silent motor/gear operation under the deck and take up less deck space. Powerful windlass with a new compact motor.Vertical shaft in stainless steel. Highspeed drop of up to 40 m (120 ft) per minute (Dolphin 1200). Manual free fall with adjustable clutch. Stainless steel parts in high polished steel 316L. Long term trouble-free operation. Works with chain only or chain/rope combination.

PDF icon

PDF icon

PDF icon

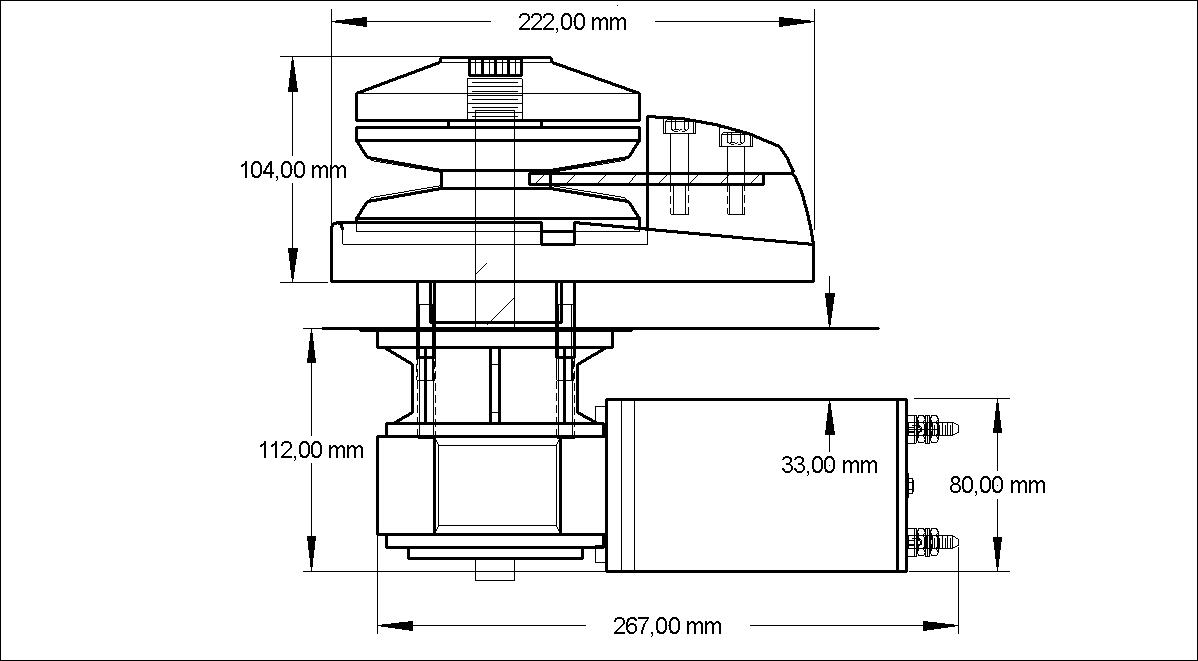

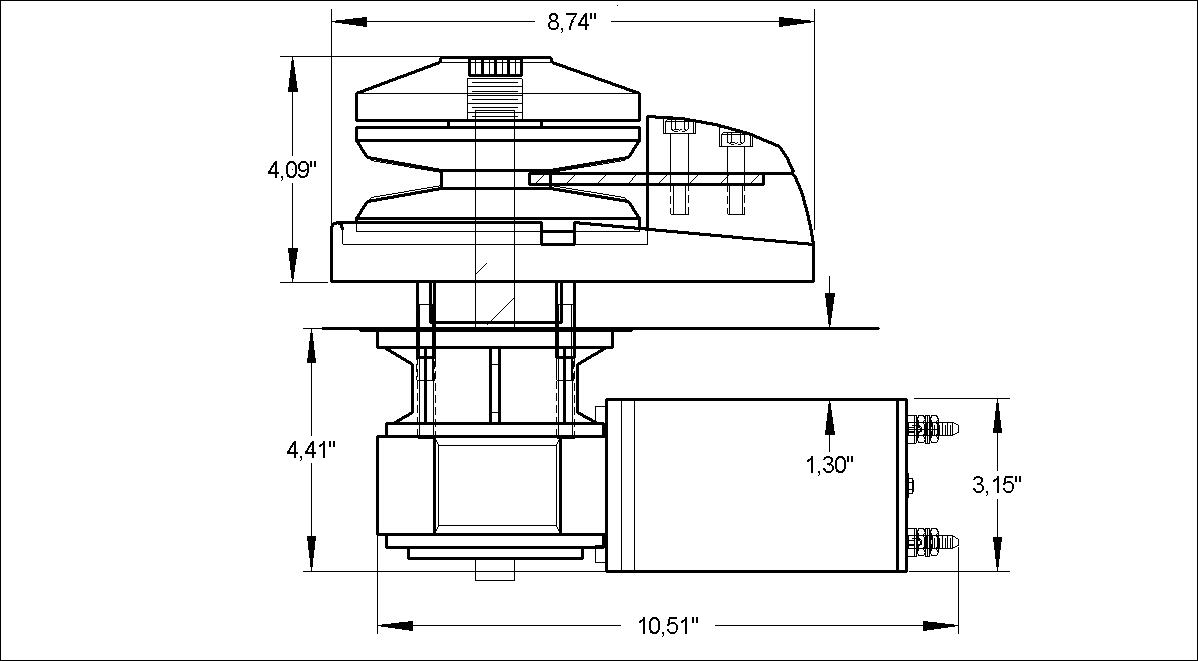

Product Sheet

Inside Mounting Bracket
Part No: 90203



Stainless Steel ASIS 316
Model Number

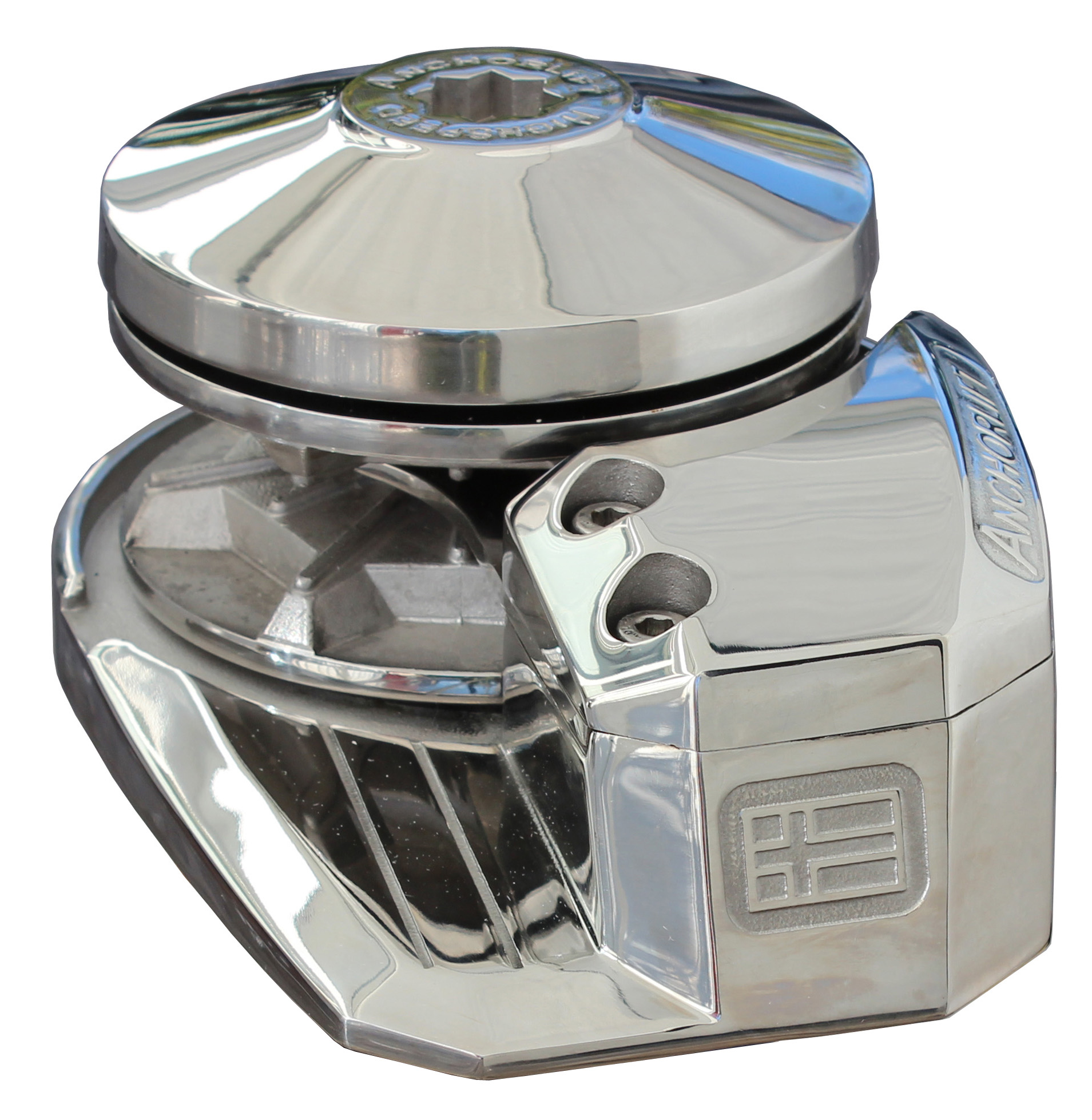

Dolphin Stainless Steel 1000. D1012
Motor:
1000 watt
Voltage:
12 volt
Max Working Load:
250kgs - 550lbs
Max Power Pull:
750kgs - 1650 lbs

Amp draw Drop:
24 Amp No load.
Amp draw Up approx: Normal load: 8mm chain approx 55 amp.
Normal load: Rope/chain combo 40 amp.
Drop Speed:
33m-100ft min.
Up Speed: Normal load: 8mm chain approx 20m - 66ft min
Normal load: Rope/chain combo 24m - 79ft min.
Gypsy  option 1:
Europe DIN766:
Chain. 8 mm DIN 766  Rope: 16mm
Gypsy option 2:
USA, Canada: HT G43
Chain 5/16"HT G43  Rope: 5/8"

Gypsy option 3:
USA, Canada: HT G43

Chain 1/4"HT G43 Rope: 1/2" - 9/16" - 12 and 14mm
Most used chain:

8mm DIN766 30 to 50m Europe
5/16"HT G43 15 to 25ft in combination with rope. USA, Canada

Most used rope/chain combo
(Rods)

DB5/8-150 165ft - 50m  DB5/8-200 215ft - 65m
DB5/8-250 265ft - 80m
Most used anchors: 10kg - 22lbs to 15kg - 33lbs Pro Plow and Pro Claw.
Cable Size: 25mm2 - 3 AWG / 35mm2 - 1AWG Normal cable lenght.
Circuit breaker: 100amp
Deck thickness:

32mm - 1,25" to 60mm - 2,4" (Up to 90mm - 3,5" with longer bolts)
Switch gear: Toggle switch 90800, Rocker switch 90801, Foot switch 90900
Radio remote 91354, Combo switch pack 92100
Weight
15 kgs - 33 lbs

Part No:
D1012-6 Dolphin 1000 Alu Low. 1000w 12v gypsy 6mm  Rope 12-13mm
D1012-8 Dolphin 1000 Alu Low. 1000w 12v gypsy 8mm Din766 Rope 14 - 16mm
D1012-9 Dolphin 1000 Alu Low. 1000w 12v gypsy 5/16" HT Rope 9/16" - 5/8"
Purchase this product

PDF icon

PDF icon

PDF icon

Product Sheet

Inside Mounting Bracket
Part No: 90203



Seawater Resistant Aluminum
Model Number

Dolphin Aluminium1000 DA1012
Motor:
1000 watt
Voltage:
12 volt
Max Working Load:

250kgs - 550lbs
Max Power Pull:

750kgs - 1650 lbs

Amp draw Drop:
24 Amp No load
Amp draw Up approx: Normal load: 8mm chain approx 55 amp
Normal load: Rope/chain combo 40 amp
Drop Speed:
33m-100ft min / 40m -132ft min.
Up Speed: Normal load: 8mm chain approx 20m - 66ft min
Normal load: Rope/chain combo 24m - 79ft min
Gypsy  option 1:
Europe DIN766:
Chain. 8 mm DIN 766  Rope: 14 - 16mm
Gypsy option 2:
USA, Canada: HT G43
Chain 5/16"HT G43  Rope: 5/8"

Gypsy option 3:
USA, Canada: HT G43

Chain 1/4"HT G43 Rope: 1/2" - 9/16" - 12 and 14mm
Most used chain:

8mm DIN766 30 to 50m Europe
5/16"HT G43 15 to 25ft in combination with rope. USA, Canada

Most used rope/chain combo
(Rods)

DB5/8-150 165ft - 50m  DB5/8-200 215ft - 65m
DB5/8-250 265ft - 80m
Most used anchors: 10kg - 22lbs to 15kg - 33lbs Pro Plow and Pro Claw.
Cable Size: 25mm2 - 3 AWG / 35mm2 - 1AWG Normal cable lenght.
Circuit breaker: 100amp / 135amp
Deck thickness:

32mm - 1,25" to 60mm - 2,4" (Up to 90mm - 3,5" with longer bolts)
Switch gear: Toggle switch 90800, Rocker switch 90801, Foot switch 90900
Radio remote 91354, Combo switch pack 92100
Weight
12 kgs - 26 lbs

Part No:
DA1012-6 Dolphin 1000 Alu Low. 1000w 12v gypsy 6mm  Rope 12-13mm
DA1012-8 Dolphin 1000 Alu Low. 1000w 12v gypsy 8mm Din766 Rope 14 - 16mm
DA1012-9 Dolphin 1000 Alu Low. 1000w 12v gypsy 5/16" HT Rope 9/16" - 5/8"

Purchase this product

Dolphin logo
High Profile models
  Highspeed Windlass logo

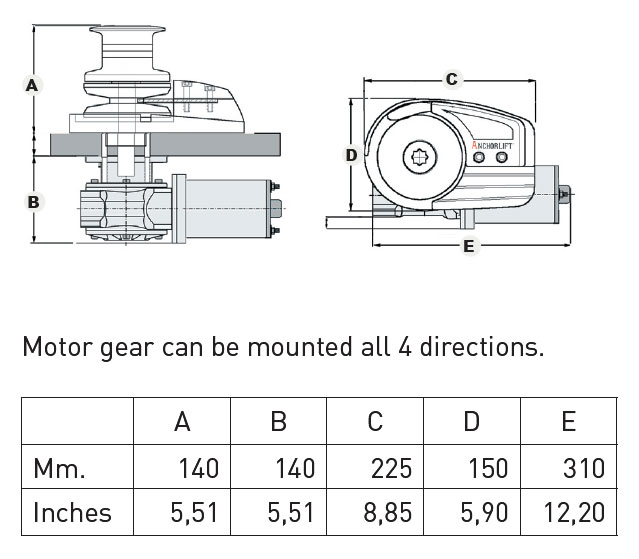

Ideal for boats 35-45 feet long. These High Profile models are designed for smooth & silent motor/gear operation under the deck. Powerful and compact windlass. With capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 40 m/120 ft per minute (Dolphin 1200). Manual free fall with adjustable clutch. Parts above deck in stainless steel 316L. Long term trouble-free operation. The motor/gear under install under the boat's deck for smooth and silent operation. Works with chain only or rope/chain combination.

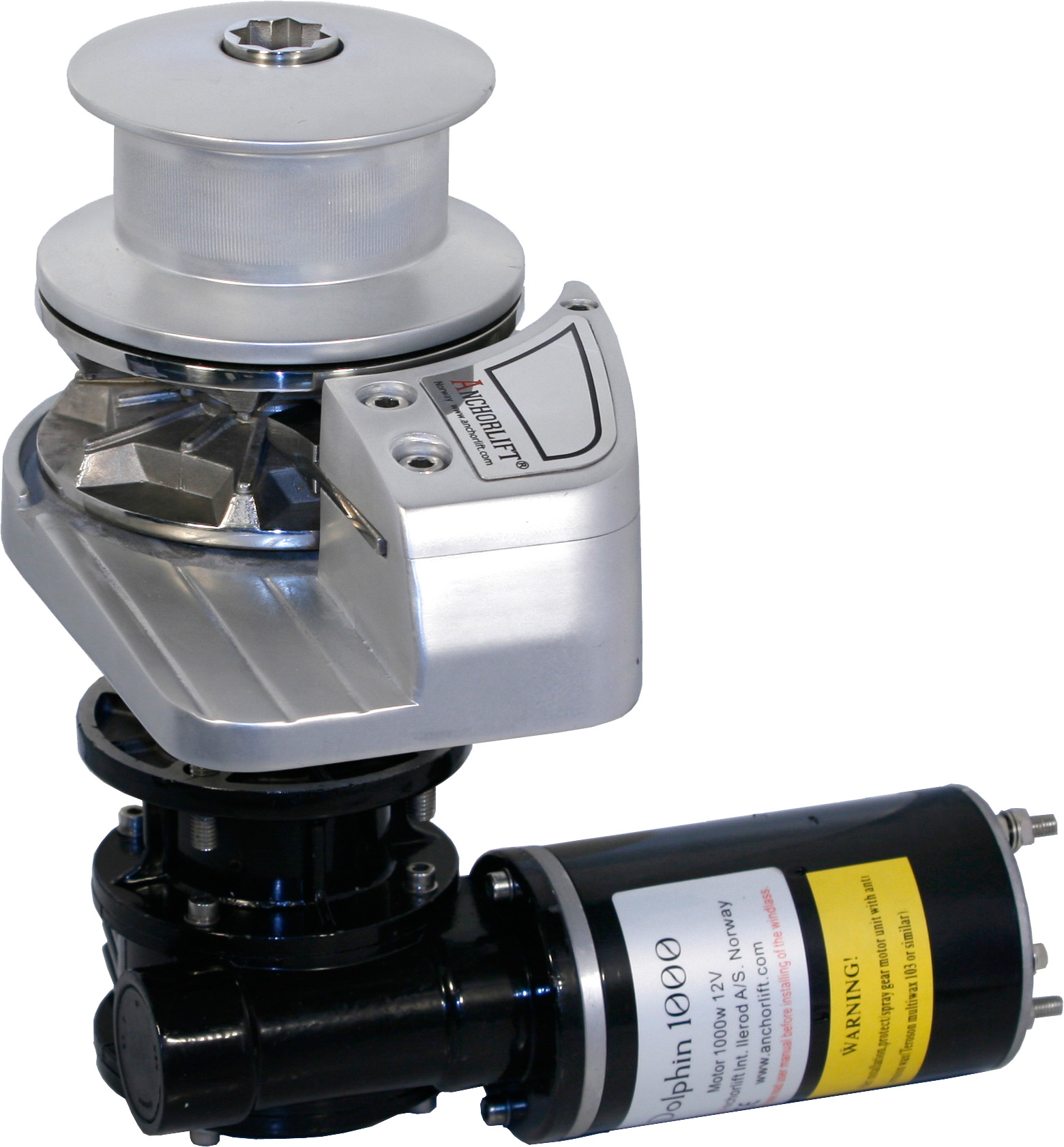

Dolphin 1000 windlass
PDF icon

PDF icon

PDF icon

Product Sheet

Sea Water Resistant Anodized Aluminum
Model Number

Dolphin Alu 1000. DA1012C
Motor:
1000 watt
Voltage:
12 volt
Max Working Load:
250kgs - 550lbs
Max Power Pull:
750kgs - 1650 lbs

Amp draw Drop:
24 Amp No load.
Amp draw Up approx: Normal load: 8mm chain approx 55 amp.
Normal load: Rope/chain combo 40 amp.
Drop Speed:
33m-100ft min.
Up Speed: Normal load: 8mm chain approx 20m - 66ft min
Normal load: Rope/chain combo 24m - 79ft min.
Gypsy  option 1:
Europe DIN766:
Chain. 8 mm DIN 766  Rope: 16mm
Gypsy option 2:
USA, Canada: HT G43
Chain 5/16"HT G43  Rope: 5/8"

Gypsy option 3:
USA, Canada: HT G43

Chain 1/4"HT G43 Rope: 1/2" - 9/16" - 12 and 14mm
Most used chain:

8mm DIN766 30 to 50m Europe
5/16"HT G43 15 to 25ft in combination with rope. USA, Canada

Most used rope/chain combo
(Rods)

DB5/8-150 165ft - 50m  DB5/8-200 215ft - 65m
DB5/8-250 265ft - 80m
Most used anchors: 10kg - 22lbs to 15kg - 33lbs Pro Plow and Pro Claw.
Cable Size: 25mm2 - 3 AWG / 35mm2 - 1AWG Normal cable lenght.
Circuit breaker: 100amp
Deck thickness:

32mm - 1,25" to 60mm - 2,4" (Up to 90mm - 3,5" with longer bolts)
Switch gear: Toggle switch 90800, Rocker switch 90801, Foot switch 90900
Radio remote 91354, Combo switch pack 92100
Weight
12 kgs - 26 lbs

Part No:
DA1012C-6 Dolphin 1000 Alu Low. 1000w 12v gypsy 6mm  Rope 12-13mm
DA1012C-8 Dolphin 1000 Alu Low. 1000w 12v gypsy 8mm Din766 Rope 14 - 16mm
DA1012C-9 Dolphin 1000 Alu Low. 1000w 12v gypsy 5/16" HT Rope 9/16" - 5/8"
Purchase this product



Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
