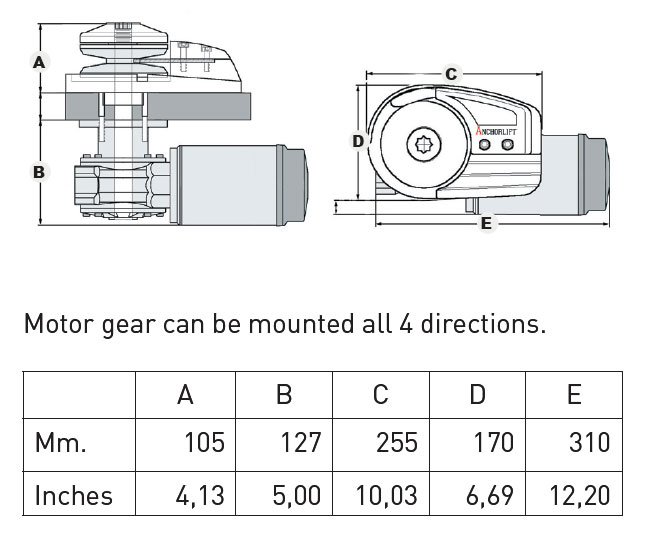

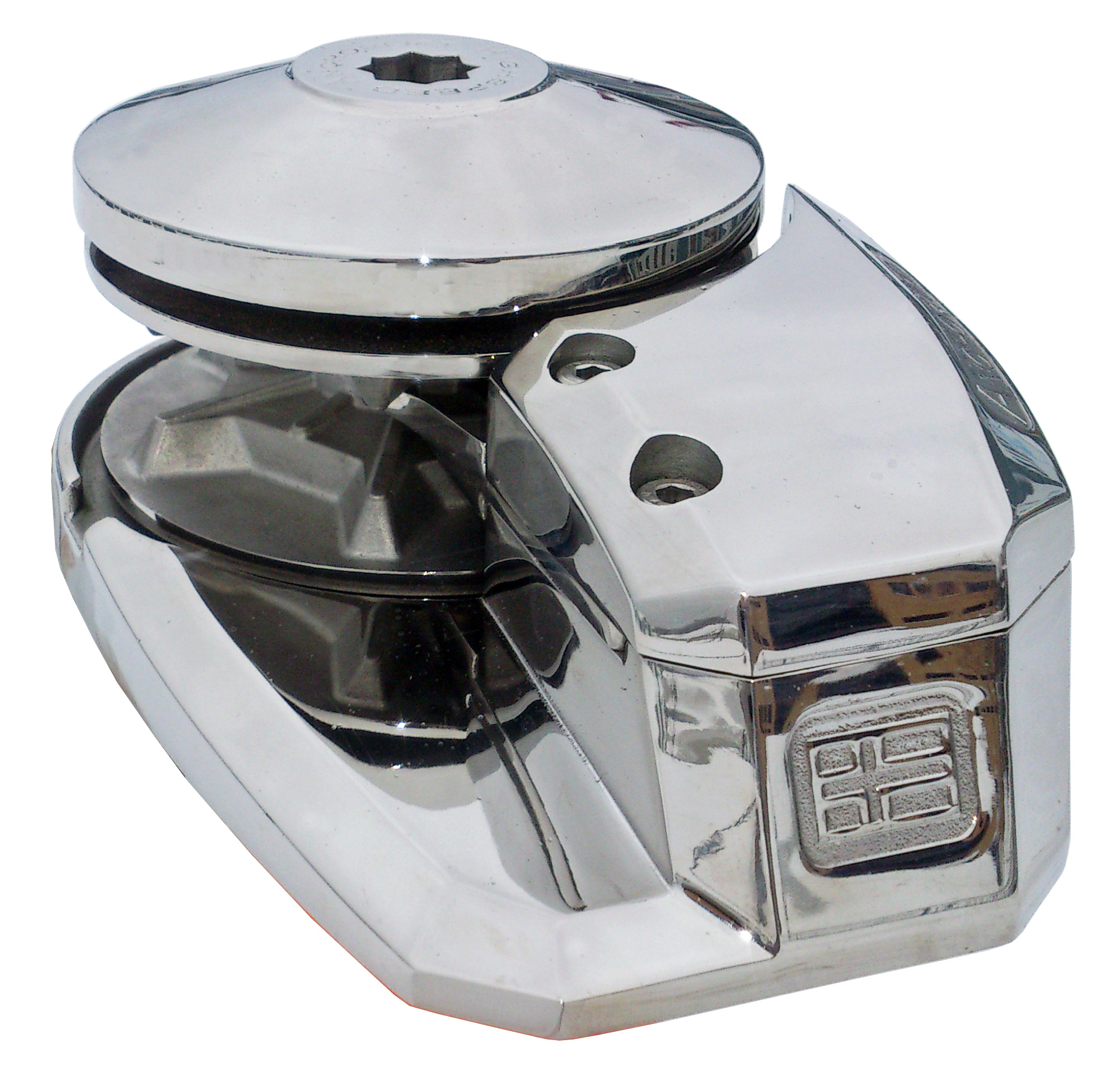

Low Profile models |
|
|
 |
|
|
|
Powerful 1500 & 2000 watt
motors, ideal for 40-75 foot boats. These Low Profile models are designed for smooth & silent motor/gear operation under the deck and take up less deck space. Powerful windlass with a new compact motor. With capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 40 m (120 ft) per minute. Manual free fall with adjustable clutch. Stainless steel parts in high polished steel 316L. Long term trouble-free operation. Works with chain only or chain/rope combination.
|
|
|
|
Heavy Duty Stainless Steel (316) |
|
Model Number |
M1512 |
M1524 |
M2024 |
Motor output |
1500 watt |
1500 watt |
2000w |
Voltage |
12 volt |
24 volt |
24v |
Max Working Load |
485 kgs / 1067 lbs |
485 kgs / 1067 lbs |
650kgs / 1430lbs |
Max Power Pull |
|
1200 kgs / 2640 lbs |
1500kgs / 3300lbs |
Current Draw |
115 Amp.
|
65 Amp.
|
85amp |
Drop Speed per min. |
40 m (120 ft) / min. |
40 m (120 ft) / min. |
40 m (120 ft) / min. |
Alt. 1 Chain/rope |
10 mm - 5/16" HT G4
Rope 16mm - 5/8"
|
10 mm 5/16" HT G4
Rope 16mm - 5/8"
|
10 mm 5/16" HT G4
Rope 16mm - 5/8" |
Alt. 2 Chain/rope |
8 mm DIN766
Rope 14-16mm
|
8 mm DIN766
Rope 14-16mm
|
|
|
3/8" HT G4
Rope 16mm - 5/8"
|
3/8" HT G4
Rope 16mm - 5/8"
|
3/8" HT G4
Rope 16mm - 5/8" |
| Alt.
4 Chain |
|
|
12mm ISO |
|
|
|
|
|
|
| _________________________________________________________________________________________________________ |
 |
|
|
| |
|
|
|

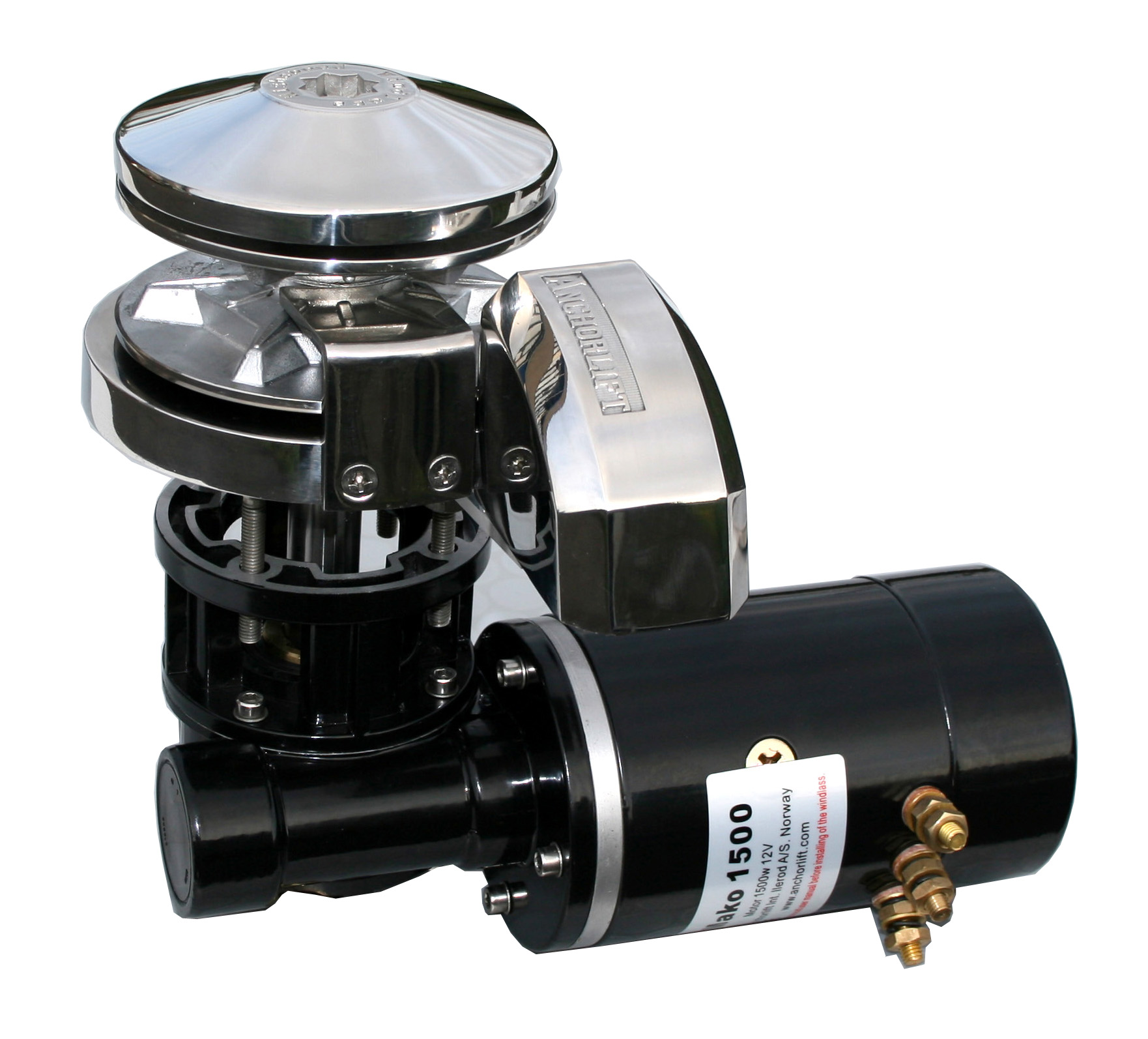

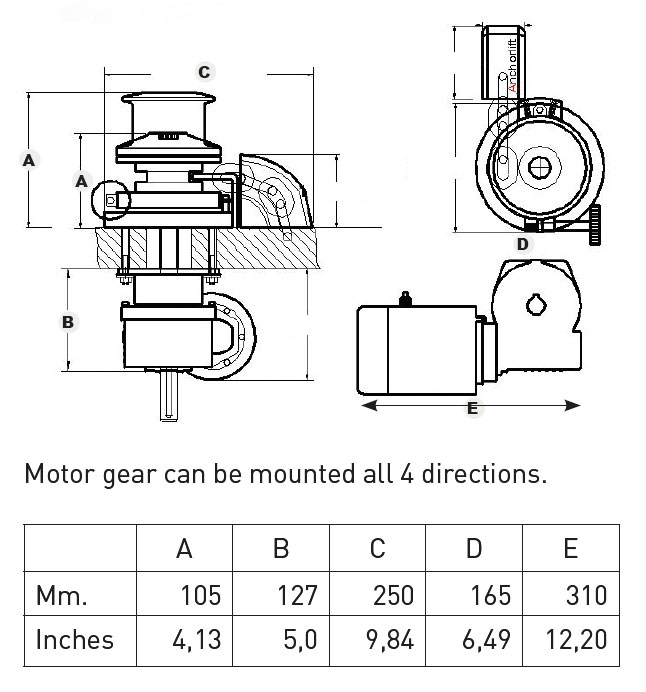

Chainpipe Left
|
Chainpipe Right
|
|
|
|
Multiple Mounting Options (Stainless Steel 316) |
The chain pipe can be mounted on the right or left side of the chain stripper, or further in front of the windlass |
|
Model Number |
MR1512 |
MR1524 |
Motor output |
1500 watt |
1500 watt |
Voltage |
12 volt |
24 volt |
Max Working Load |
485 kgs / 1067 lbs |
485 kgs / 1067 lbs |
Max Power Pull |
1200 kgs / 2640 lbs |
1200 kgs / 2640 lbs |
Current Draw |
115 Amp.
|
65 Amp.
|
Drop Speed per min. |
40 m (120 ft) / min. |
40 m (120 ft) / min. |
Alt. 1 Chain |
10 mm - 5/16"HT G4
|
10 mm - 5/16"HT G4
|
Alt. 2 Chain |
8 mm - DIN766
|
8 mm - DIN766
|
| Alt. 3 Chain |
3/8" HT G4 |
3/8" HT G4 |
| |
|
|
Weight |
18.8 kgs / 41.5 lbs |
18.8 kgs / 41.5 lbs |
|
| |
|
|
|
| |
|
|
|
|

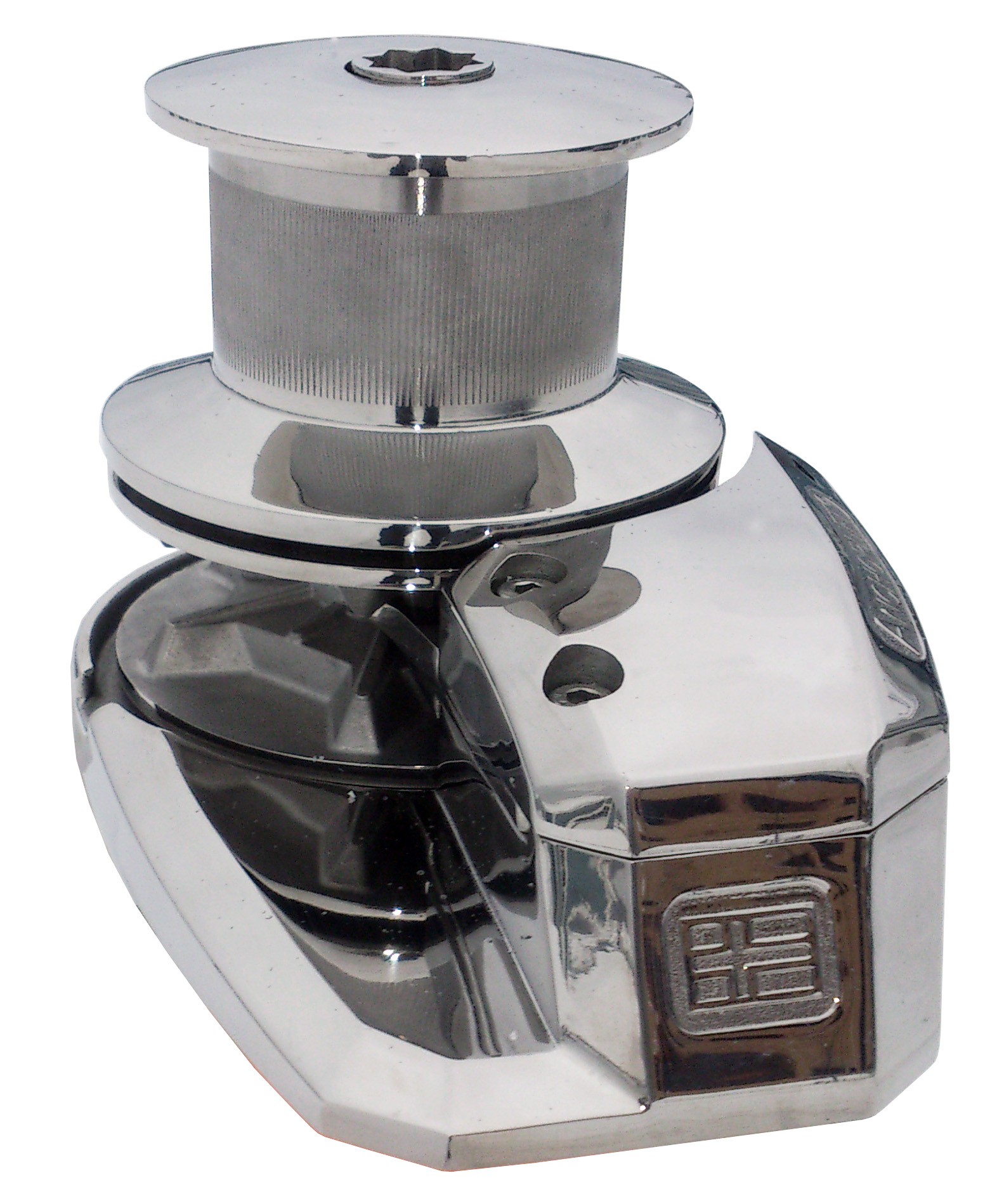

High Profile models |
|
|
|
|
|
|
Powerful 1500 & 2000 watt motors, ideal for 40-75 foot boats. Designed for smooth & silent motor/gear operation under the deck. Powerful windlass with capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 40 m (120 ft) per minute. Manual free fall with adjustable clutch. Stainless steel parts in high polished steel 316L. Long term trouble-free operation. Works with chain only or chain/rope combination.
|
|
|
|
Heavy Duty Stainless Steel (316) |
|
|
Model Number
|
M1512C
|
M1524C
|
M2024 |
|
Motor output
|
1500 watt
|
1500 watt
|
2000w |
|
Voltage
|
12 volt
|
24 volt
|
24v |
|
Max Working Load
|
485 kgs / 1067 lbs
|
485 kgs / 1067 lbs
|
650kgs / 1430lbs |
|
Max Power Pull
|
|
1200 kgs / 2640 lbs
|
1500kgs / 3300lbs |
|
Current Draw
|
115 Amp.
|
65 Amp.
|
85amp |
|
Drop Speed per min.
|
40 m (120 ft) / min.
|
40 m (120 ft) / min.
|
40 m (120 ft) / min. |
|
Alt. 1 Chain/rope
|
10 mm - 5/16" HT G4
Rope 16mm - 5/8"
|
10 mm 5/16" HT G4
Rope 16mm - 5/8"
|
10 mm 5/16" HT G4
Rope 16mm - 5/8" |
|
Alt. 2 Chain/rope
|
8 mm DIN766
Rope 14-16mm
|
8 mm DIN766
Rope 14-16mm
|
|
|
|
3/8" HT G4
Rope 16mm - 5/8"
|
3/8" HT G4
Rope 16mm - 5/8"
|
3/8" HT G4
Rope 16mm - 5/8" |
|
Alt 4 Chain |
|
|
12mm ISO |
|
Weight |
22,5kg / 50lbs |
22,5kgs / 50lbs |
25kgs / 55lbs |
|
|
|
|
|
|
| _________________________________________________________________________________________________________ |
 |
|
|
| |
|
|
|

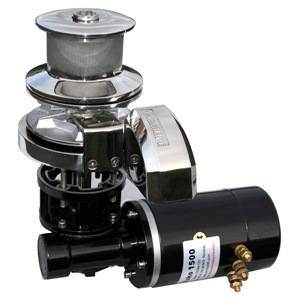

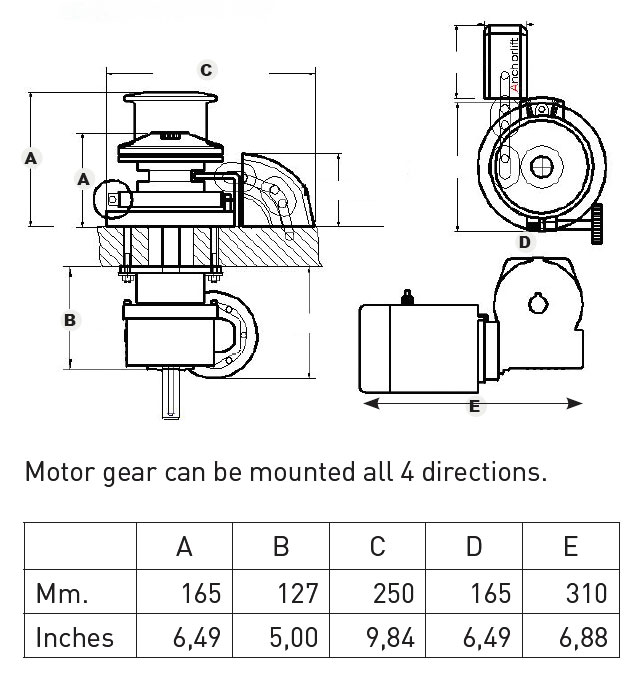

Chainpipe Left
|
Chainpipe Right
|
|
|
|
Multiple Mounting Options (Stainless Steel 316) |
The chain pipe can be mounted on the right or left side of the chain stripper, or further in front of the windlass |
|
|
Model Number
|
MR1512C
|
MR1524C
|
|
Motor output
|
1500 watt
|
1500 watt
|
|
Voltage
|
12 volt
|
24 volt
|
|
Max Working Load
|
485 kgs / 1067 lbs
|
485 kgs / 1067 lbs
|
|
Max Power Pull
|
1200 kgs / 2640 lbs
|
1200 kgs / 2640 lbs
|
|
Current Draw
|
115 Amp.
|
65 Amp.
|
|
Drop Speed per min.
|
40 m (120 ft) / min.
|
40 m (120 ft) / min.
|
|
Alt. 1 Chain
|
10 mm - 5/16"HT G4
|
10 mm - 5/16"HT G4
|
|
Alt. 2 Chain
|
8 mm - DIN766
|
8 mm - DIN766
|
| Alt. 3 Chain |
3/8" HT G4 |
3/8" HT G4 |
| |
|
|
|
Weight
|
18.8 kgs / 41.5 lbs
|
18.8 kgs / 41.5 lbs
|
|
| |
|
|
|
| |
|
|
|
| |
| |
